13 |

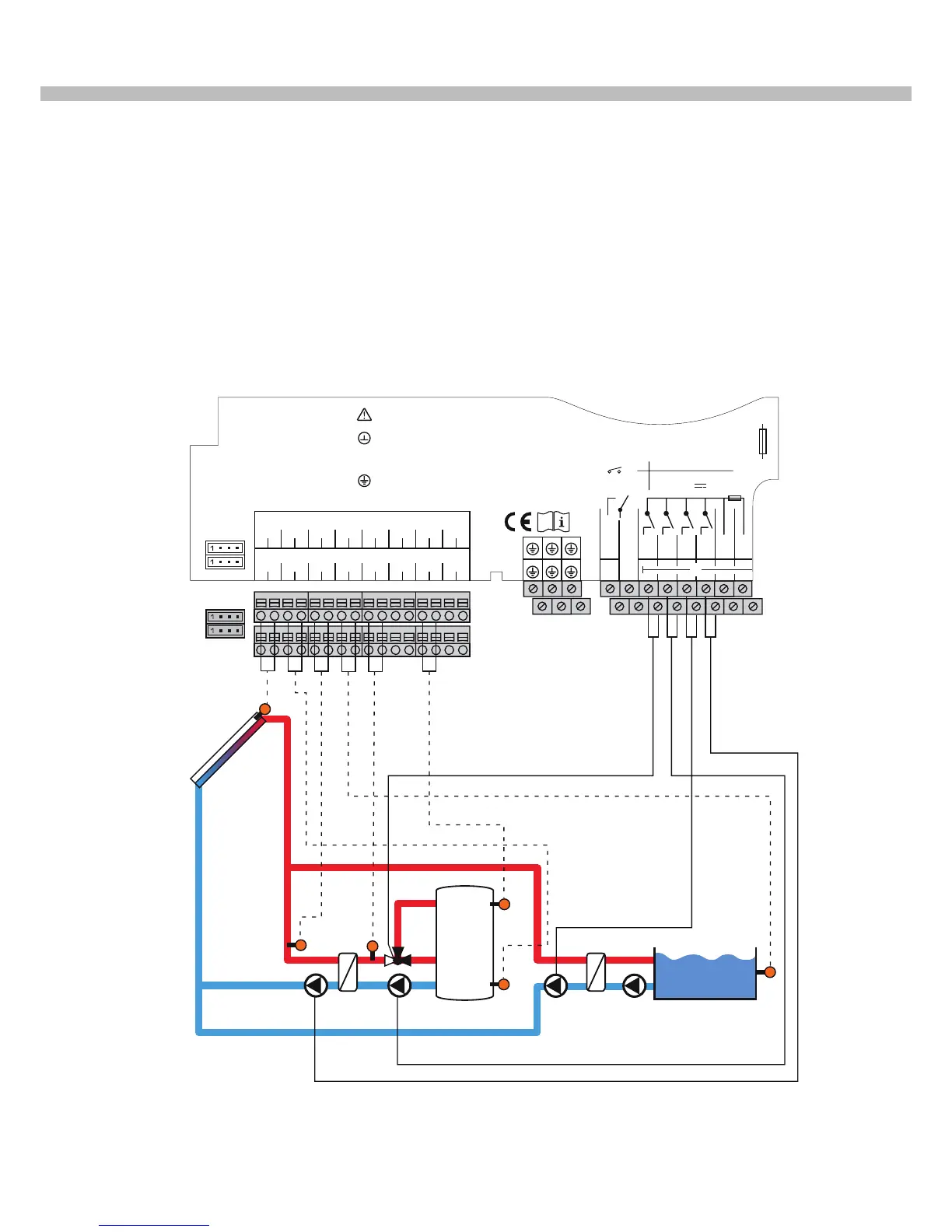

In this scheme, a pool is integrated into the solar circuit via
a heat exchanger. In this case, the stratified store has first
priority. Only when loading is not possible any more, will
the controller switch to pool loading.
Relay 2 (R2) can be used as a control signal, e. g. for switch-
ing an external contactor that controls the additional pool
loading pump.
3. System description stratified layer module basic scheme with additional pool
(Scheme number 003 / 013)
S1
S3 S5
S7
S4
R4
(V1)
R3
R2
R1
S2
S1
1234 5678910 11 12 13 14 15 16
S2 S3 S4 S5 S6 S7 S8
R4
R5
IP20
R5
N
R1-R4
100 ... 240 V~
50-60 Hz
T4A
1 (1) A (100 ... 240) V~
4 (1) A 240 V~
4 (1) A 24V
R5
R3
R2
R1
L' L
Temp. Sensor
RPD
N
Isolate mains before removing cover!
Vor Öffnen Gerät spannungslos schalten!
Use ground common terminal block
Masse-Sammelklemme benutzen
Use neutral conductor common terminal block
Neutralleiter-Sammelklemme benutzen!
Use PE Common terminal block
Schutzleiter-Sammelklemme benutzen
VFD
S9
V40
S10
V40
PWMA
0-10V
PWMB
0-10V
PWMC
0-10V
PWMD
0-10V
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
CS10 VBus
DeltaSol
®
BX+ V2
KIOTO Clear Energy AG
A - 9300 St. Veit a.d. Glan
Note: In scheme 013, connect the pump R1 to PWM A, R3 to PWM C and R2 to PWM B additionally.
Store 1
Swimming pool
