The controller compares the temperatures at the temper-
ature sensors S1 and S6 to the temperature at sensor S2. If
one of the temperature differences measured is higher than
the adjusted switch-on temperature difference, the pump
(R1 or R2) will be activated; the solar circuit will be heated.
The controller will aim to hold the adjusted temperature
difference. The pump speed is controlled such that the ad-
justable temperature difference is reached.

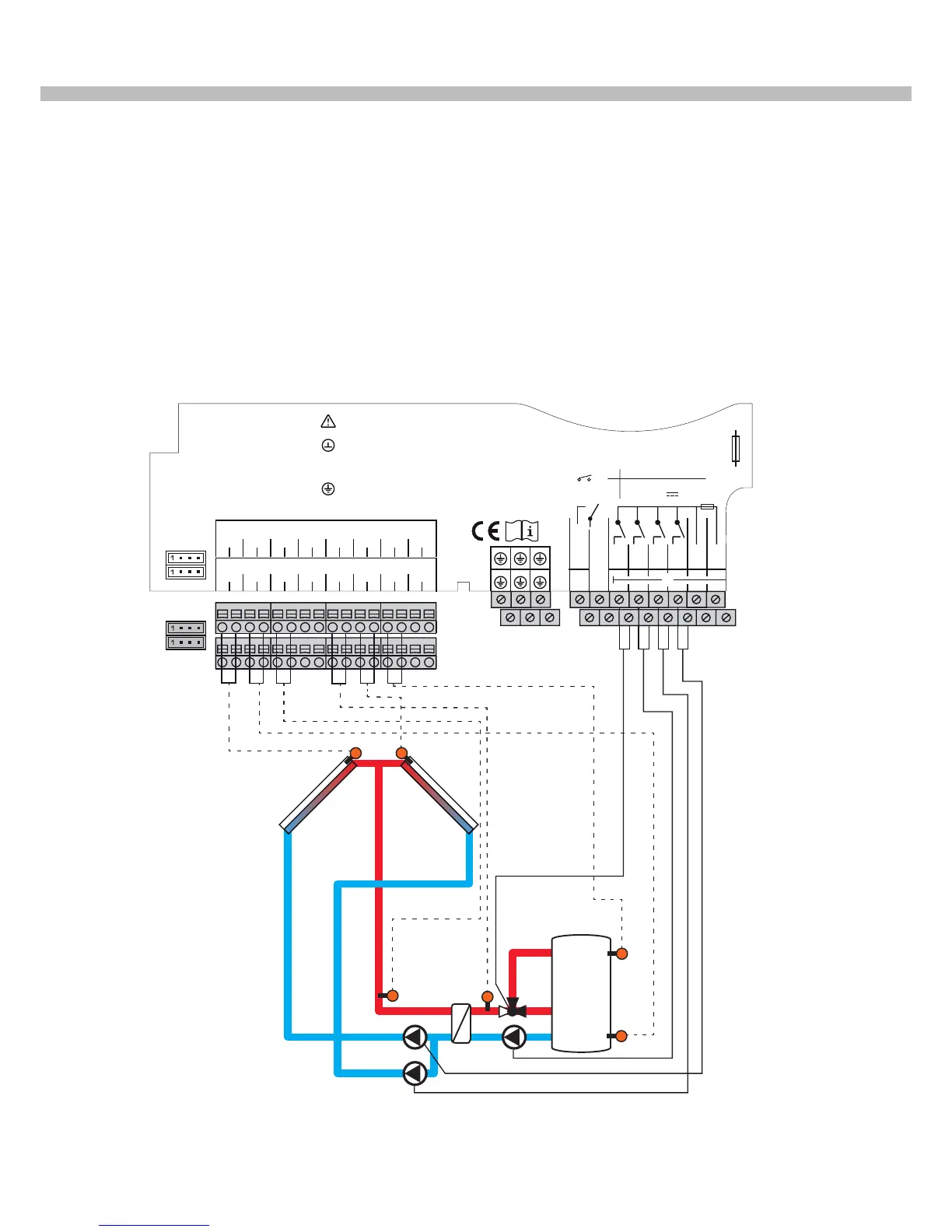

4. System description stratified layer module basic scheme with east / west collectors
(Scheme number 004 / 014)
If the temperature difference between S3 and S2 exceeds
the adjusted switch-on temperature difference for the sec-
ondary pump (external heat exchanger), the pump (R3) will
be switched on. Store loading is controlled by means of an
additional heat exchange function. The valve (R4) is normal-
ly open to load the central store zone.
If the temperature difference between S5 and S7 exceeds
the switch-on temperature difference, the upper store
zone will be loaded up to the adjusted set temperature.
S1
S6
S3
S5
S7
R4
(V1)
R1
R3
R2
S2
S1
1234 567 8910 11 12 13 14 15 16
S2 S3 S4 S5 S6 S7 S8
R4
R5
IP20
R5
N
R1-R4
100 ... 240 V~
50-60 Hz
T4A
1 (1) A (100 ... 240) V~
4 (1) A 240 V~
4 (1) A 24V
R5
R3
R2
R1
L' L
Temp. Sensor
RPD
N
Isolate mains before removing cover!
Vor Öffnen Gerät spannungslos schalten!
Use ground common terminal block
Masse-Sammelklemme benutzen
Use neutral conductor common terminal block
Neutralleiter-Sammelklemme benutzen!
Use PE Common terminal block
Schutzleiter-Sammelklemme benutzen
VFD
S9
V40
S10
V40
PWMA
0-10V
PWMB
0-10V
PWMC
0-10V
PWMD
0-10V
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
CS10 VBus
DeltaSol
®
BX+ V2
KIOTO Clear Energy AG
A - 9300 St. Veit a.d. Glan
Speicher
1
Note: In scheme 014, connect the pump R1 to PWM A, R2 to PWM B and R3 to PWM C additionally.
