ReSound EQ798-DWT - Replace Parts - LO85 Models: ID Plate; ID Plate Transfer Process (LO85); Mounting ID Plate into Bot HSG (LO85)

Doc 0223520 rev N
Page 30 of 39
Not subject to issue control when printed

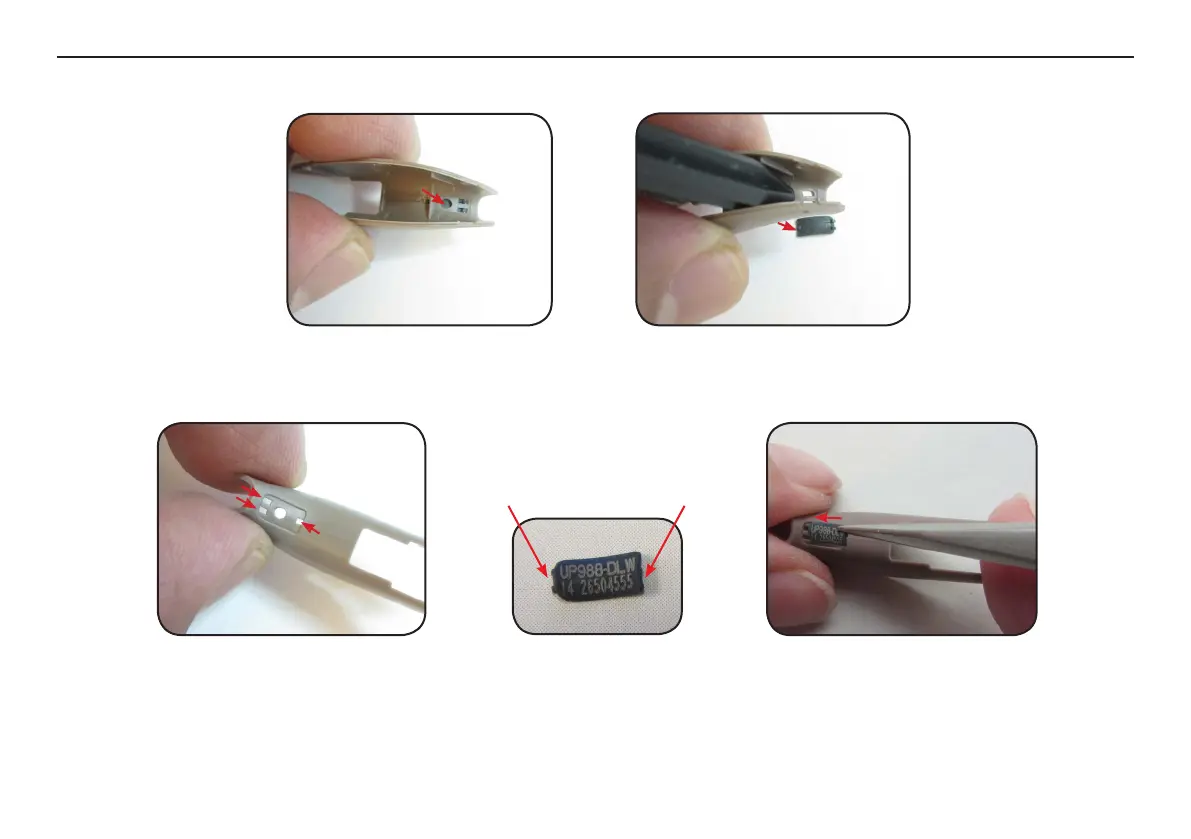

When changing HSG bot, the ID plate must be transferred to new HSG (only LO85 mod-
els). Please note the ID plate is not an available spare part. Push out the plate from
inside the old HSG by using a pin or tweezer
Mounting the ID plate into the bot HSG: Insert the two prong side of the ID plate first. Then insert the one prong side. Use
a finger to pres it down to make sure the ID plate is correct in place. Mount the bot HSG and other HSG parts to the HI
Replace Parts on LO85 Models
Two prong
side
One prong
side
ID Plate
