Testing - LO85 Models

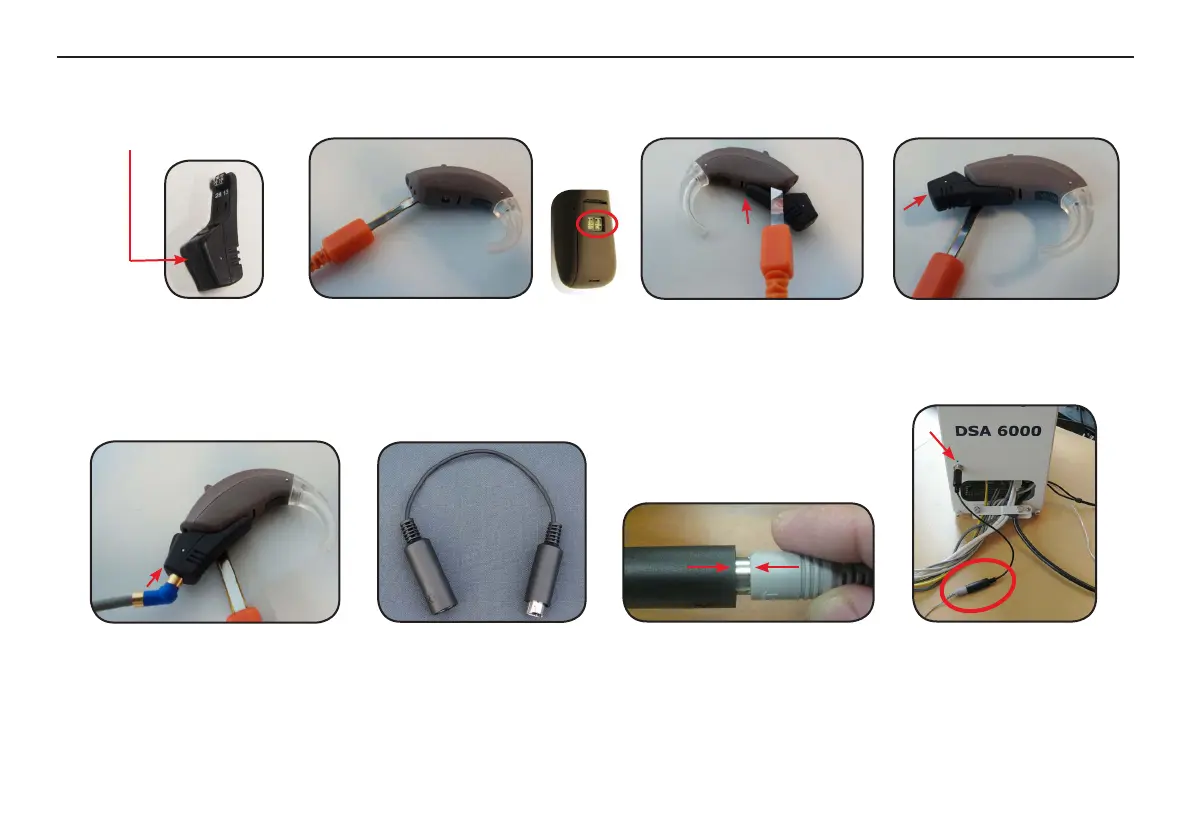

Add a batt pill and close batt door. Insert the one end of the prog adapt into
the square prog port of the device
Push the bot part of the prog
adapt until it clicks to lock it on
the device
Button
(press down to unlock after use)
Connect the CS44 prog cable
Ext prog cable
Note about PROG. CABLE EXTENSION p/n 17517800:
The extension cable is needed for making correct current measurement during DSA6000 HI test on
some platform models. Testing these devices without the extension cable will show an incorrect cur-
rent measurement. However, if the ext cable is used during a DSA6000 HI test of a model where the
ext cable is not needed, it will not aect the test. Therefore, to avoid failures and misunderstandings
it is safer just to leave the ext cable on the DSA at all times and use it during test of all devices, no
matter if it is required or not
Connect the ext prog cable to the
CS44 prog cable. Connect to the
DSA6000 box as shown
To Next Page
