Retevis RT85 User Manual

OPTIONAL SIGNAL:
Selected channel call:
Press PTT and at the same time press side key 1 to achieve remote kill/stun/activate.

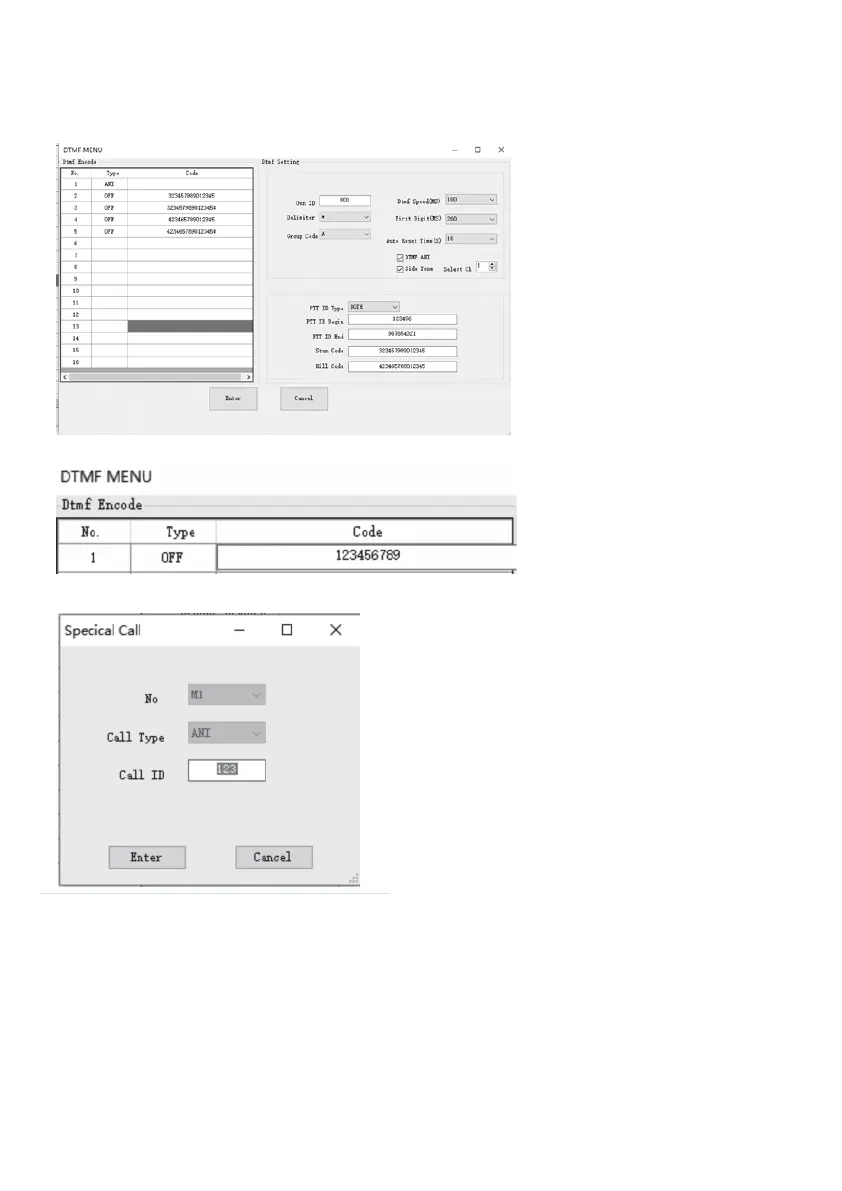

DTMF operation
DTMF decoding(In programming software)
Select the DTMF encode type
1）”OFF”, users can input the desired DTMF code directly.
2)”ANI”, users only should input the call ID, which is called radio ID.
DTMF setting
Stun code: when the radio receives the corresponding DTMF code, the radio will be remote stunned and disabled transit.
Kill code: when the radio receives the corresponding DTMF code, the radio will be remote killed And disabled receive and transmit.
Select Ch: the default channel when the DTMF is calling
DTMF operating:
When the signaling of the channel selects the DTMF, press PTT and at the same time press side key 1, the current channel will
automatically check if the DTMF signaling is received and decoding it. And achieve a corresponding function according to the
received code. The function including: turn on the squelch, ANI display, remote stun, remote kill.
Note: when the radio is remote stunned or killed, it can be released by programming.
13

Retevis RT85 Specifications

General

Output Power	5W
Battery Capacity	1400mAh
Operating Temperature	-20°C to +60°C
Antenna Impedance	50Ω
Waterproof Rating	IP67
Frequency Range	UHF 400-480 MHz
Operating Voltage	7.4V
Dimensions	120 x 55 x 35mm
