Disassembly, Assembly and Repair Instructions
10

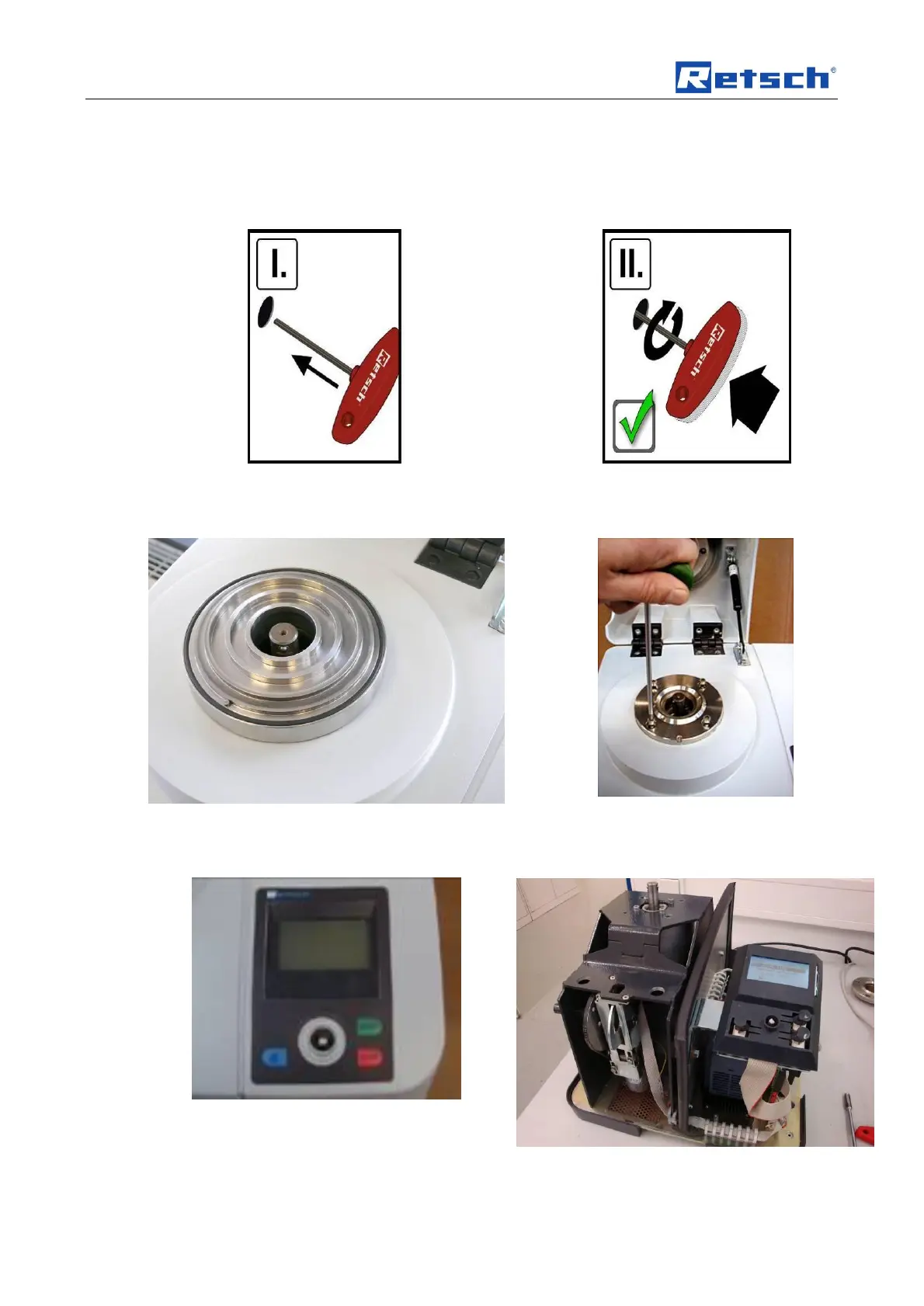

To unlock the closure gear, insert the key
and then push it in further with some degree
of force.
As you push the key in, turn it in a clockwise
direction as far as it will go.
The lid can be opened now.
Now remove the labyrinth disc. Remove the black cover caps on the motor
flange and loosen the 4 screws on the motor
flange.
Now pull the rotary knob off the control
display.
Remove the housing. Pull it up carefully and
straight. When putting it back on, make sure
the housing is guided in the rear panel.
