Disassembly, Assembly and Repair Instructions
11

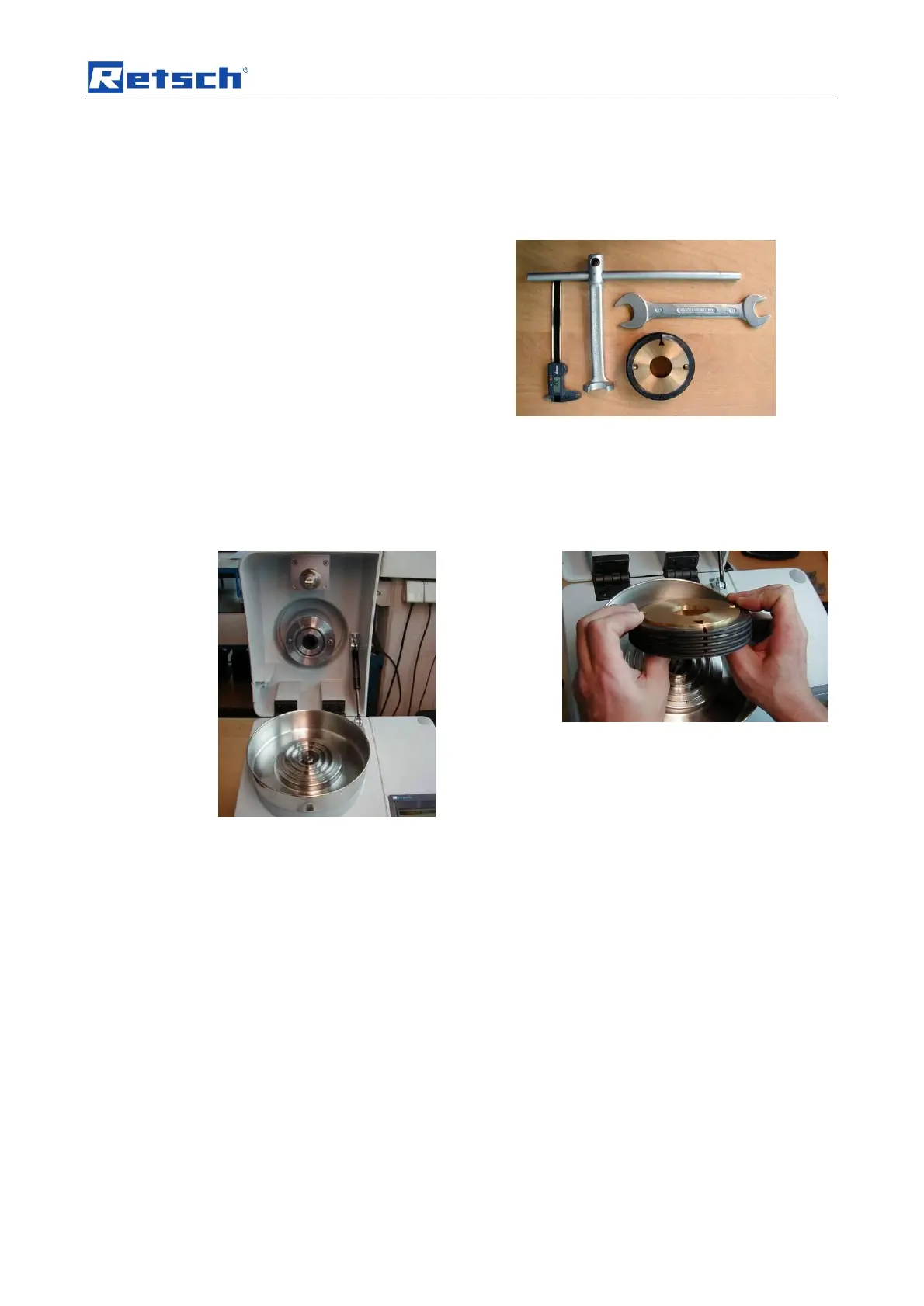

3.2 Instructions for Adjusting Trunnions
3.2.1 Required tools:
Calliper gauge
83.009.0030 Adjusting device
3.2.2 Description of the procedure
Switch on the device and open the lid. Put the
labyrinth disc along with the O-ring and the cassette
base onto the ZM200.
Press the inside of the brass adjusting device out as
far as it will go.
