Disassembly, Assembly and Repair Instructions
16

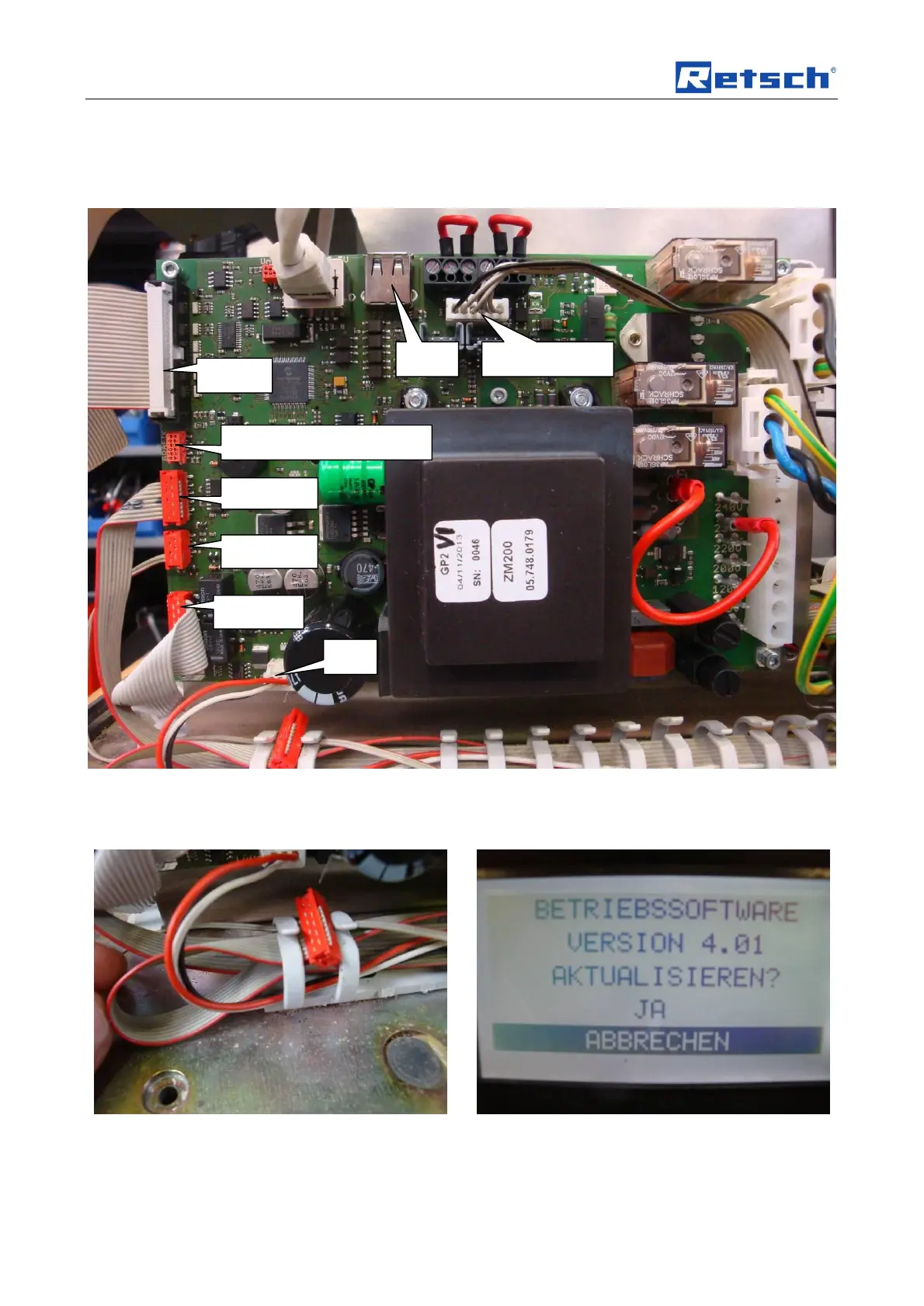

Now connect all plug-in contacts.
The interface function USB and colour display are not activatied yet.
Secure the interface connection RS485 into the
cabel channel it is no longer necessary.
Assemble the housing and check that the interface
are functioning properly.
Display
Speed sensor
Fan
USB
Colour display connection
