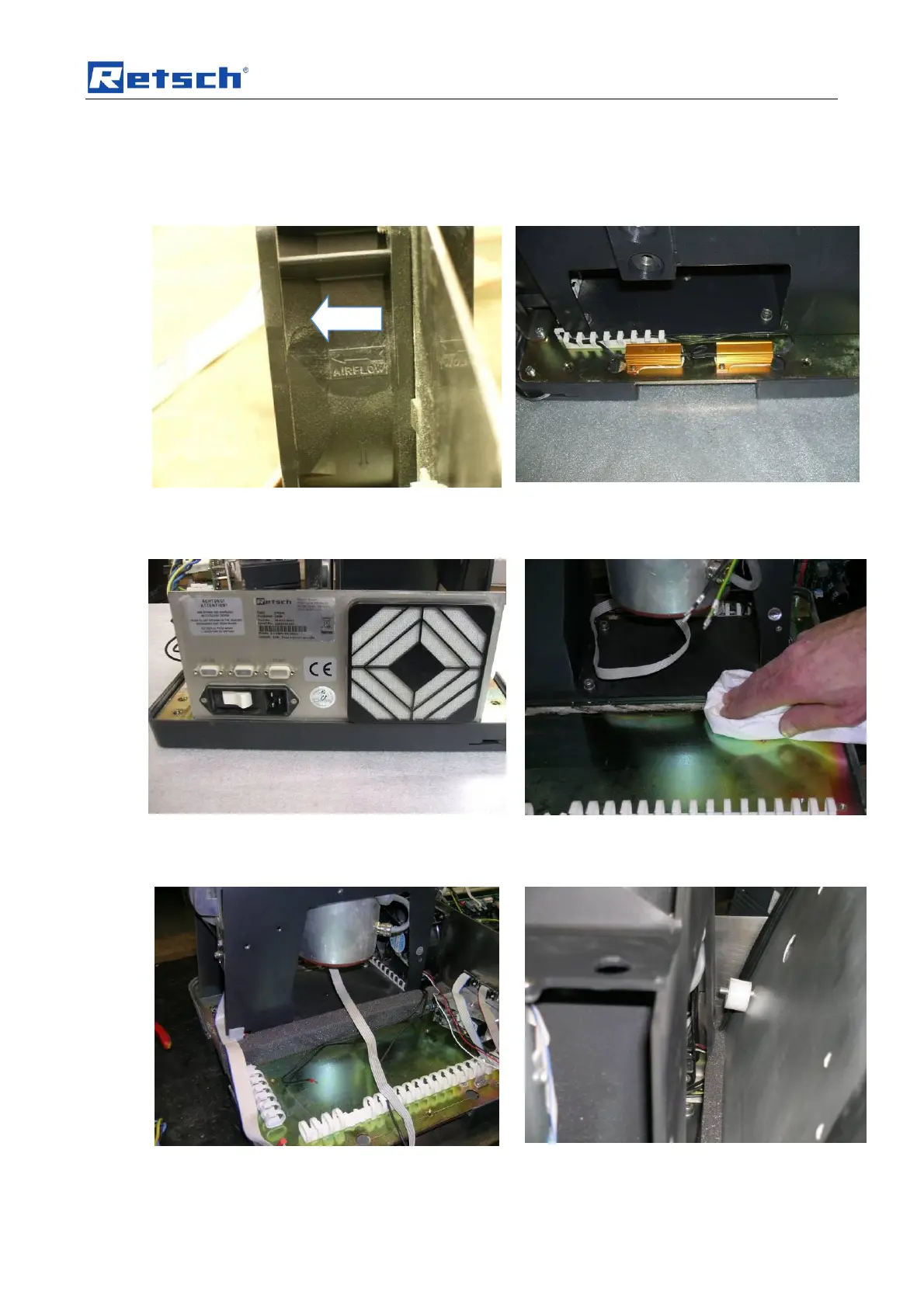

Now, fasten these components in the new rear wall.
Please make sure the fan’s direction of air flow is
correct. The direction arrow must point inwards.
Now, replace the brake resistors with new ones.
Now fasten the new rear wall onto the base plate.
Put all the enclosed stickers on it.
Remove the cable duct on the component carrier
and clean the adhesive surfaces with a cleaning
agent.
Stick the foam strip 3 mm beside the component
carrier on the base plate. Lay all cables over the
foam strip.
Now fasten the partition wall with the plastic
spacers to the motor component carrier.
