Disassembly, Assembly and Repair Instructions
22

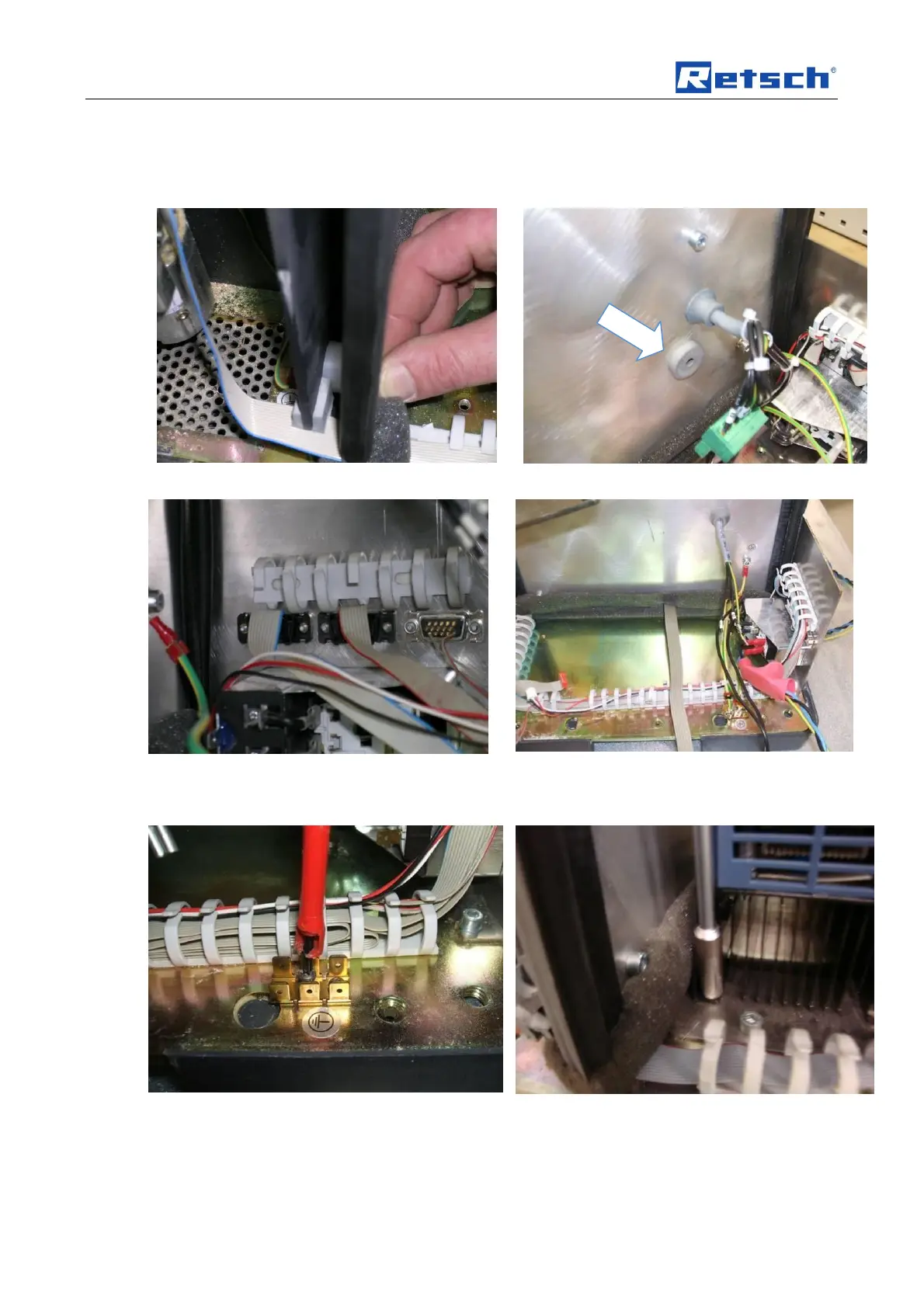

It is essential to pay attention to conduct and
position the ribbon cable for the lid lock correctly.
Remove the connector on the motor cable and lead
the cable through the lower sleeve.
Stick the short cable duct onto the rear wall. Run all cables into their correct positions.
Replace the 4-fold earthing terminal with the
enclosed 6-fold terminal.
Place the pre-assembled frequency converter on
the base plate and use the existing holes to fix it in
place.
