Disassembly, Assembly and Repair Instructions
23

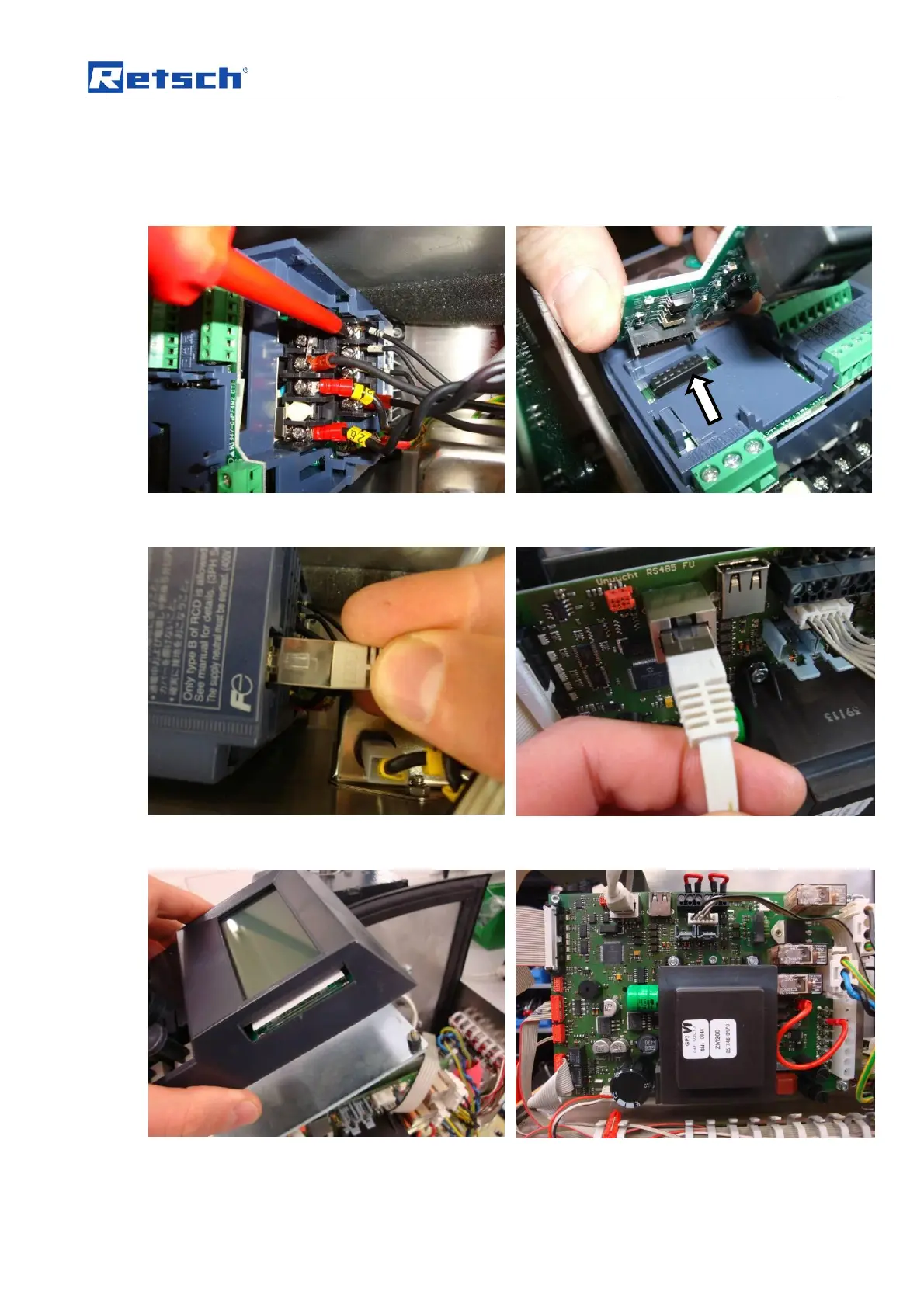

Attach the connection cables in accordance with
the terminal assignment (see circuit diagram).
Put the interface card downwards onto the
frequency converter. Take special care not to
damage the contacts!
Put the interface cable onto the interface card. Put the other end of the interface cable into the
control PCB.
Install the display holder and the display. Connect all other cables and connectors for the
control PCB.
