Disassembly, Assembly and Repair Instructions
25
3.6 Replacing the Display
3.6.1 Required tools:
Hexagonal socket wrench A/F 7
3.6.2 Required spare parts:
02.569.0014 display unit old Siei frequency converter
02.569.0019 display unit new Frenic frequency converter
02.569.0019 display unit TFT until index “Q” display required GP2 board for TFT
3.6.3 Description of the procedure

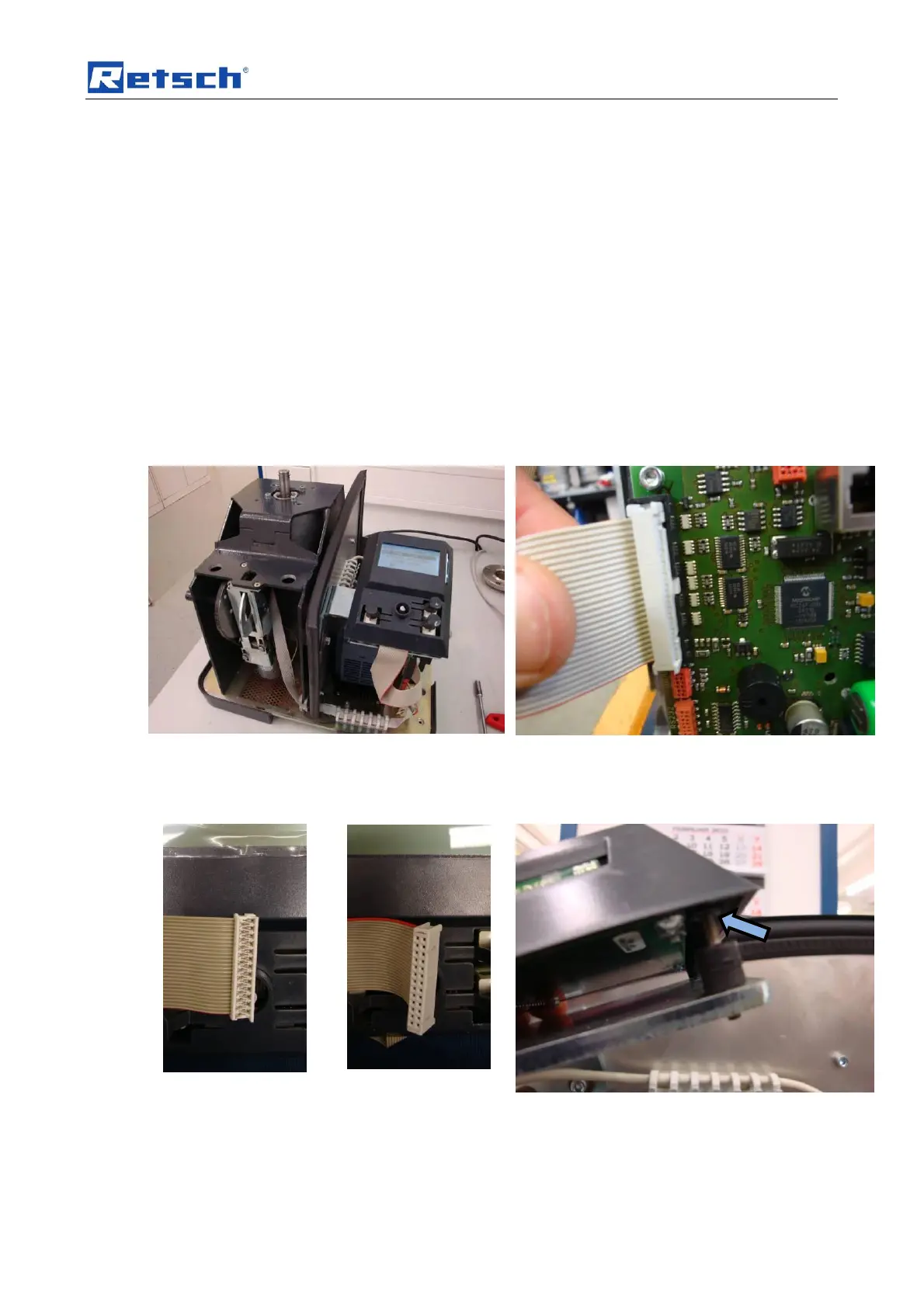

Disconnect the ZM 200 from the mains supply and
open the housing.
Disconnect the display from the control PCB.
Please check which display is required . Place the new display on the component holder.
Make sure the vibration damper holders engage
into the boreholes for the display. Connect the
display and assemble the housing.
02.569.0014 old 02.569.0019 new
