Disassembly, Assembly and Repair Instructions
30

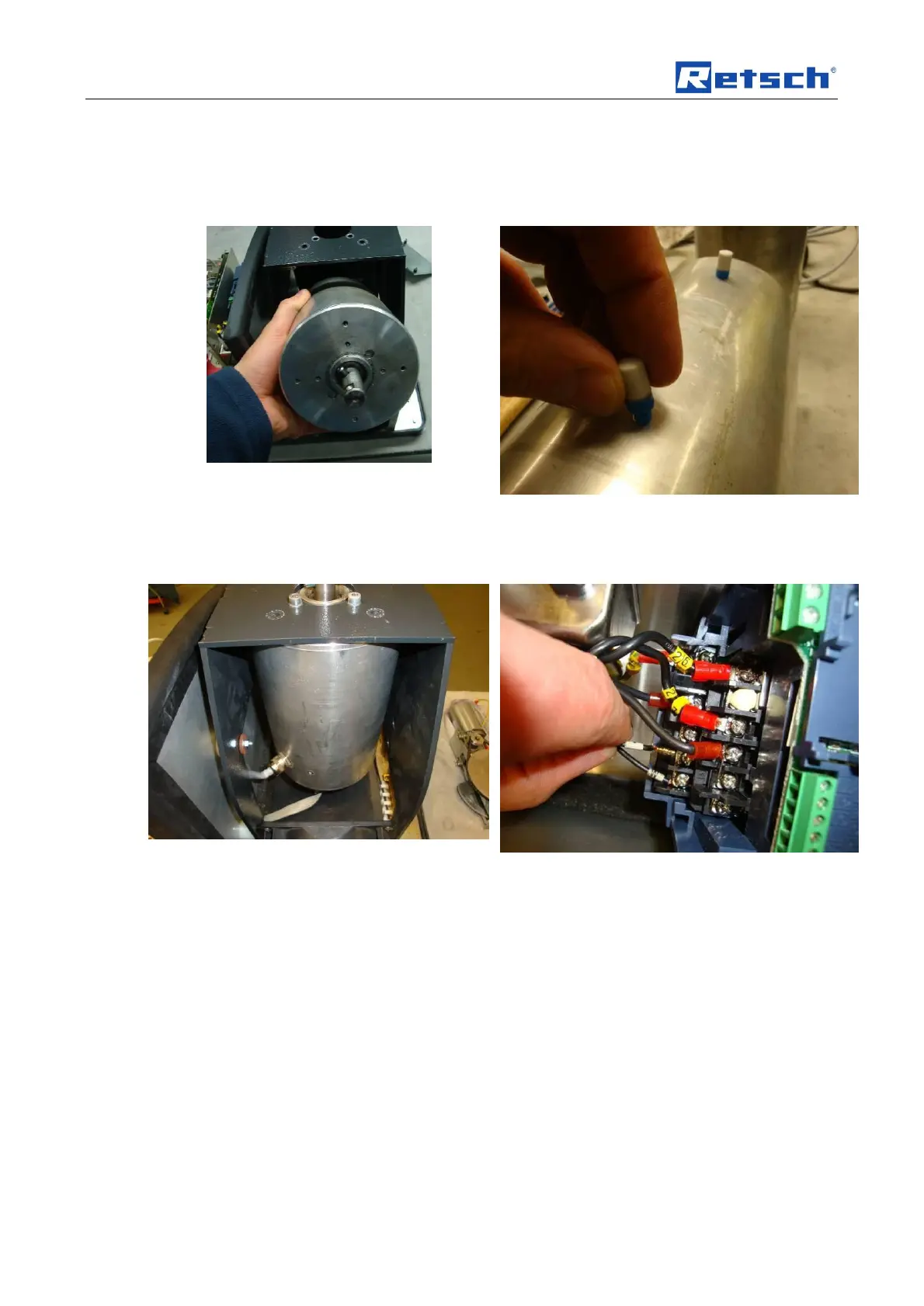

Move the motor out downwards through the
component carrier.
Now take the new replacement motor and insert the
enclosed fan filter. It is important to screw in only to
finger tightness!
Mount the replacement motor in the component
carrier. It is important to make sure that the
connection cable is positioned and conducted
correctly.
Now attach all connections to the control, while
following the enclosed circuit diagram. At the end
check that the motor is rotating in the correct
direction (anti-clockwise).
