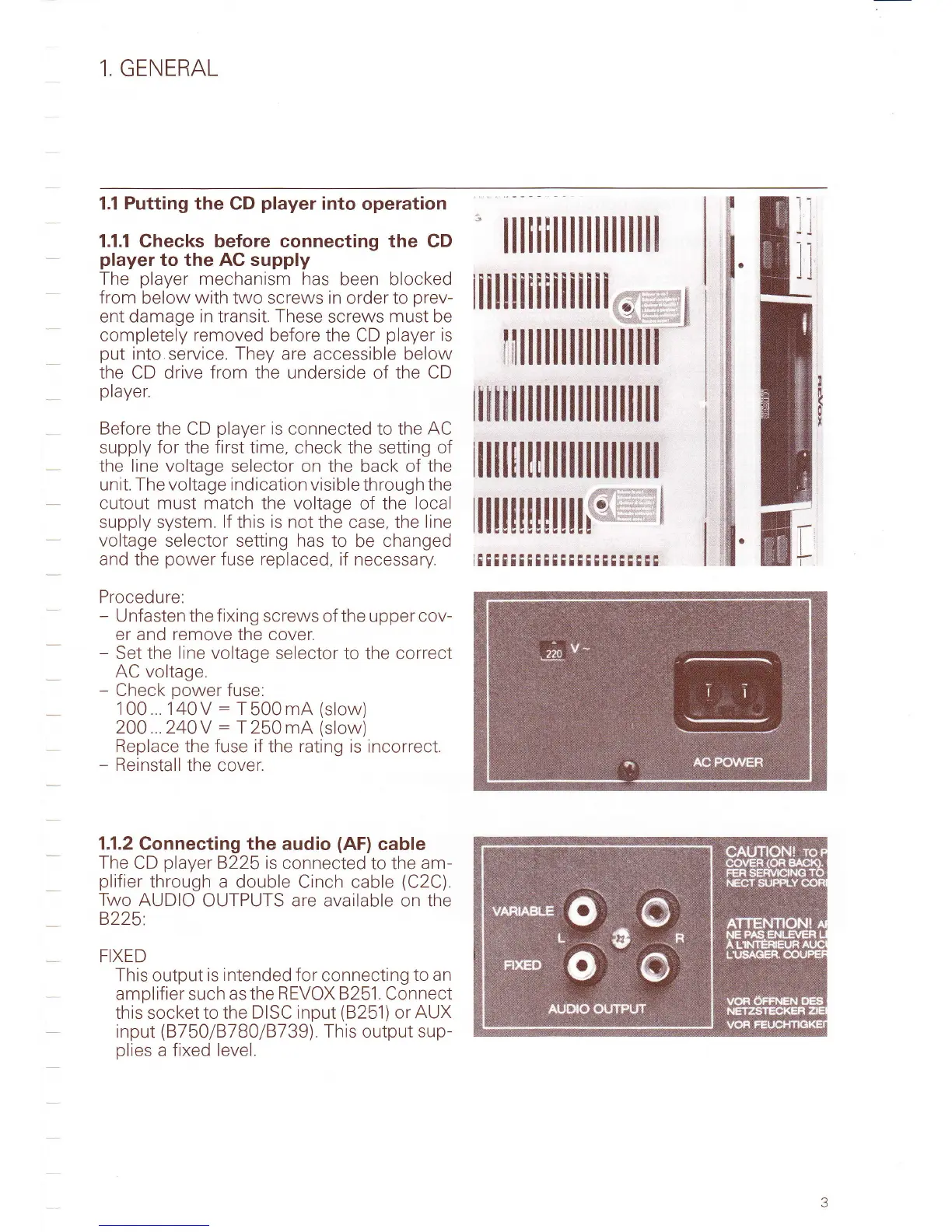

GENERAL
1.1
Putting
the CD
player
into
operation
1.1.1 Checks before connecting the CD
player
to the AC supply
The
player
mechanism has
been
blocked
from
below
with two screws in
order
to
prev-
ent damage in transit. These
screws
must be
completely removed
before the CD
player
is
put
into
service.
They
are accessible below
the CD drive from the underside of the CD
player
Before
the CD
player
is
connected to the
AC
supply
for
the
first
time, check the setting of
the
line voltage
selector on the back of
the
unit The voltage indication visible
through
the
cutout must match the voltage
of the
local
supply system
lf
this
is not
the case, the
line
voltage
selector setting has to
be
changed
and
the
power
fuse replaced,
if necessary.
Procedure:
-
Unfasten
the fixing
screws of the upper
cov-
er and remove the cover.
-
Set
the line voltage selector
to the correct
AC voltage.
-
Check
power
fuse:
100.. 140V
:
T
500
mA
(slow)
200 ...240V
:
T 250 mA
(slow)
Replace
the
fuse if
the
rating
is incorrect.
-
Reinstall
the cover.
1.1,2
Connecting the audio
(AF)
cable
The
CD
player
8225
is
connected
to the
am-
plifier
through a
double Cinch cable
(CzC).
Two AUDIO
OUTPUTS are available on the
8225.
FIXED
This
output
is
intended
for connecting
to an
amplifier such as the
REVOX
8251. Connect
this socket to the
DISC input
(8251)
or AUX
input
(8750187
80/8739)
This output
sup-
plies
a
fixed level.
