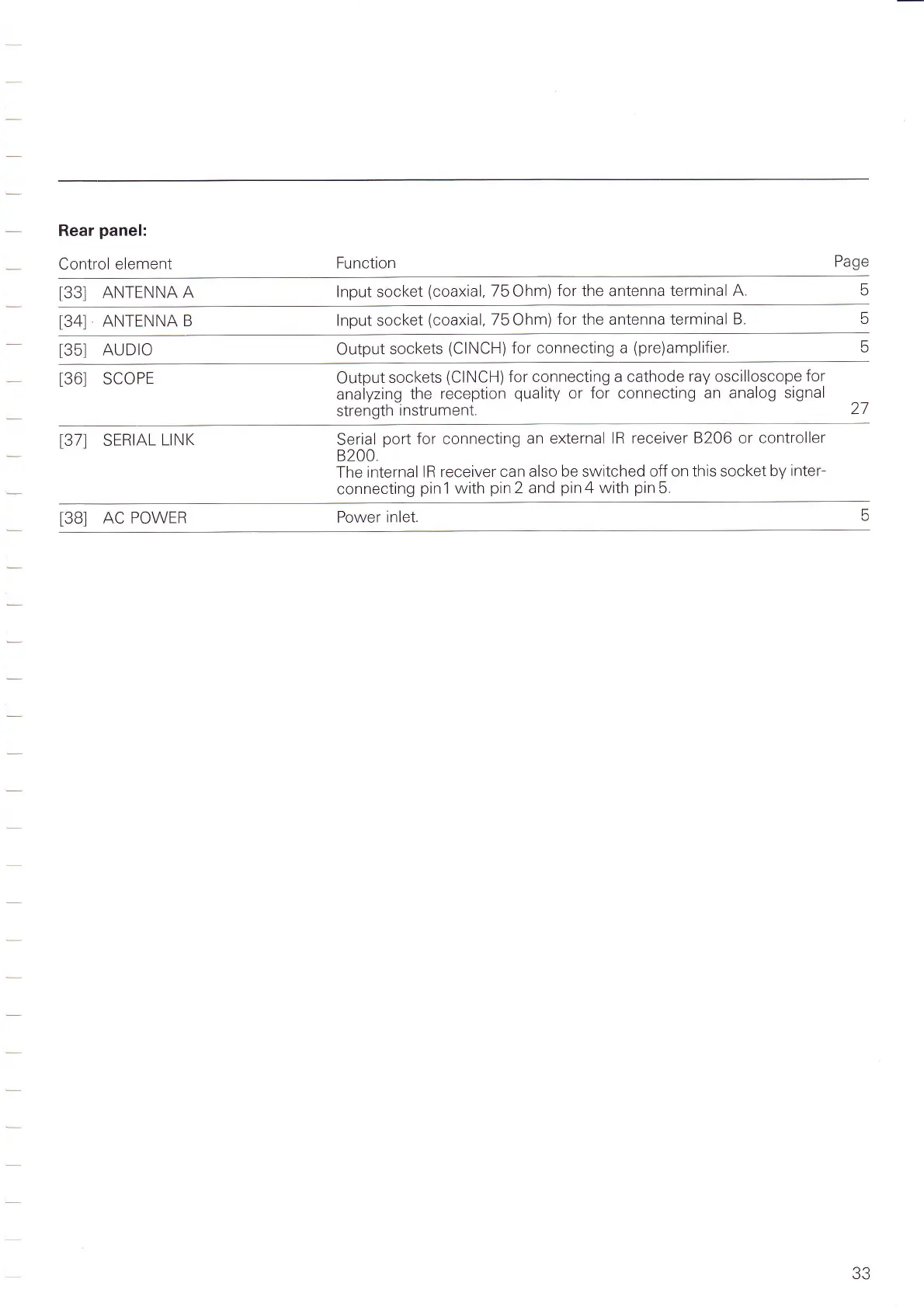

Revox B260 User Manual

Rear
panel:
Control element
Function
Page
l33l
ANTENNA
A
lnput
socket
(coaxial.
75
Ohm)
for
the antenna
terminal A.
[34]
ANTENNA
B
lnput socket
(coaxial,
75
Ohm)
for
the antenna
terminal
B.
t35l
AUDrO
Output
sockets
(CINCH)
for connecting a
(pre)amplifier
t36l
scoPE
Output
sockets
(CINCH)
for connecting a cathode
ray oscilloscope
for
analyzing
the
reception
quality
or for connecting an analog
signal
strength
instrument.
27
l37l
SERTAL
LrNK
Serial
port
for connecting
an
external lR receiver B206 or
controller
8200
The
internal
lR receiver
can also be switched off
on this socket by
inter-
connecting
pinl
with
pin2
and
pin4
with
pin5.
t38l
AC POWER
Power
inlet.

Revox B260 Specifications

General

Brand	Revox
Model	B260
Category	Tuner
Language	English
