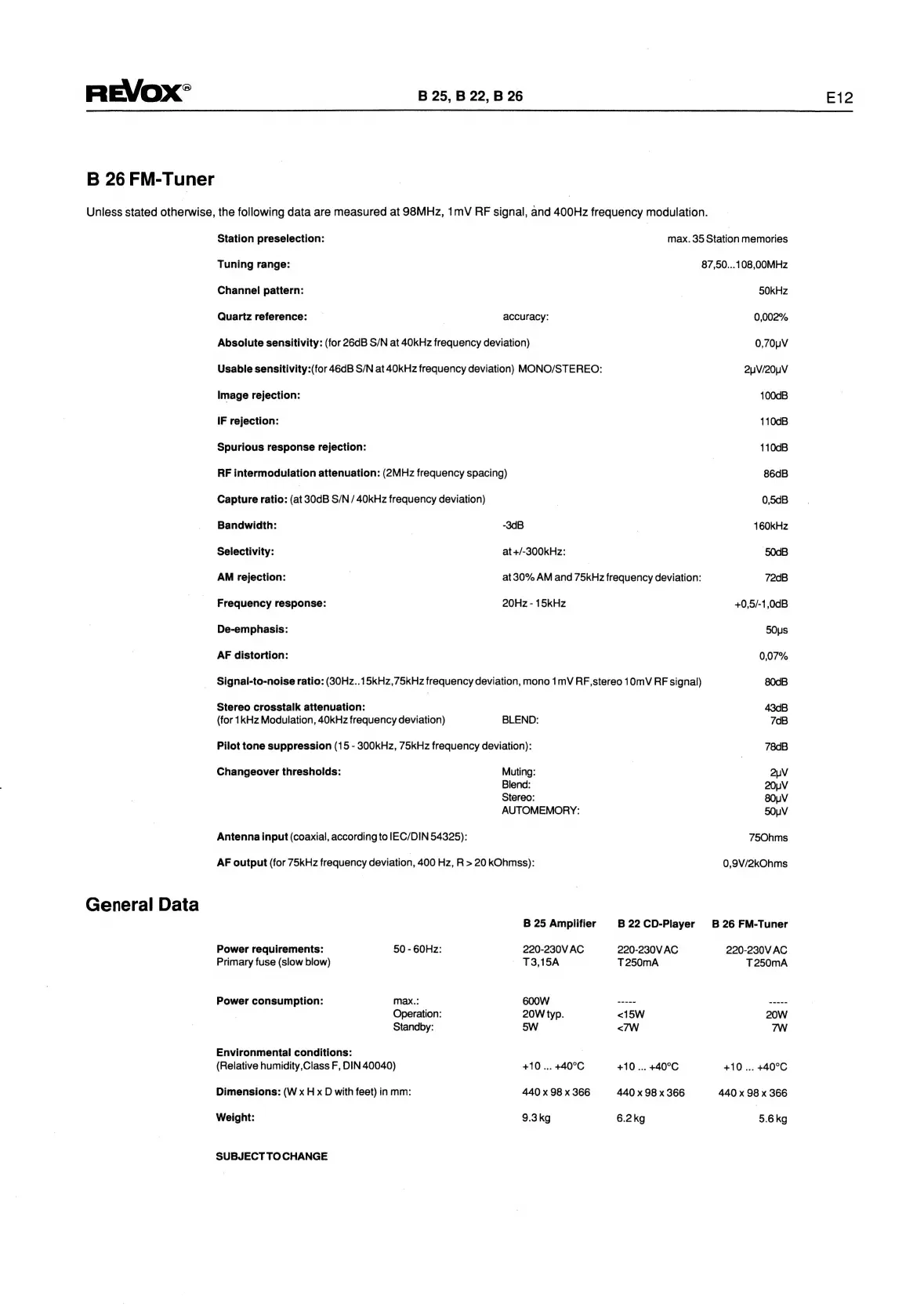

REVOX’®
B 25, B 22, B 26
E12
B 26 FM-Tuner
Unless stated otherwise, the following data are measured at 98MHz, 1mV RF signal, and 400Hz frequency modulation.
General Data
Station preselection:
Tuning range:
max. 35 Station memories
87,50...108,00MHz
Channel pattern: 50kHz
Quartz reference: accuracy: 0,002%
Absolute sensitivity: (for 26dB S/N at 40kHz frequency deviation) 0,70yV
Usable sensitivity:(for 46dB S/N at 40kHz frequency deviation) MONO/STEREO: 2uV/20uV
Image rejection: 100dB
IF rejection: 110dB
Spurious response rejection: 110dB
RF intermodulation attenuation: (2MHz frequency spacing) 86dB
Capture ratio: (at 30dB S/N / 40kHz frequency deviation) 0,5dB
Bandwidth: -3dB 160kHz
Selectivity: at +/-300kHz: 50d0B
AM rejection: at 30% AM and 75kHz frequency deviation: 72dcB
Frequency response: 20Hz - 15kHz +0,5/-1,0dB
De-emphasis: 50us
AF distortion: 0,07%
Signal-to-noise ratio: (30Hz..15kHz, 75kHz frequency deviation, mono 1mV RF,stereo 10mV RF signal) 80dB
Stereo crosstalk attenuation: 43dB
(for 1KHz Modulation, 40kHz frequency deviation) BLEND: 7dB
Pilot tone suppression (15 - 300kHz, 75kHz frequency deviation): 780B
Changeover thresholds: Muting: QuV
Blend: 20yV
Stereo: 80UV
AUTOMEMORY: 50uV
Antenna input (coaxial, according to IEC/DIN 54325): 750hms
AF output (for 75kHz frequency deviation, 400 Hz, R > 20 KOhmss): 0,9V/2kOhms
Power requirements: 50 - 60Hz:
Primary fuse (slow blow)
Power consumption: max.:
Operation:
Standby:
Environmental conditions:
(Relative humidity,Class F, DIN 40040)
Dimensions: (W x H x D with feet) in mm:
Weight:
SUBJECT TO CHANGE
B 25 Amplifier
220-230V AC
T3,15A
600W
20W typ.
5W
+10 ... +40°C
440 x 98 x 366
9.3kg
B22CD-Player B26 FM-Tuner
220-230V AC 220-230V AC
T250mA T250mA
<15W 20W
</W 7W
+10... +40°C +10... +40°C
440 x 98 x 366 440 x 98 x 366
6.2kg 5.6 kg
