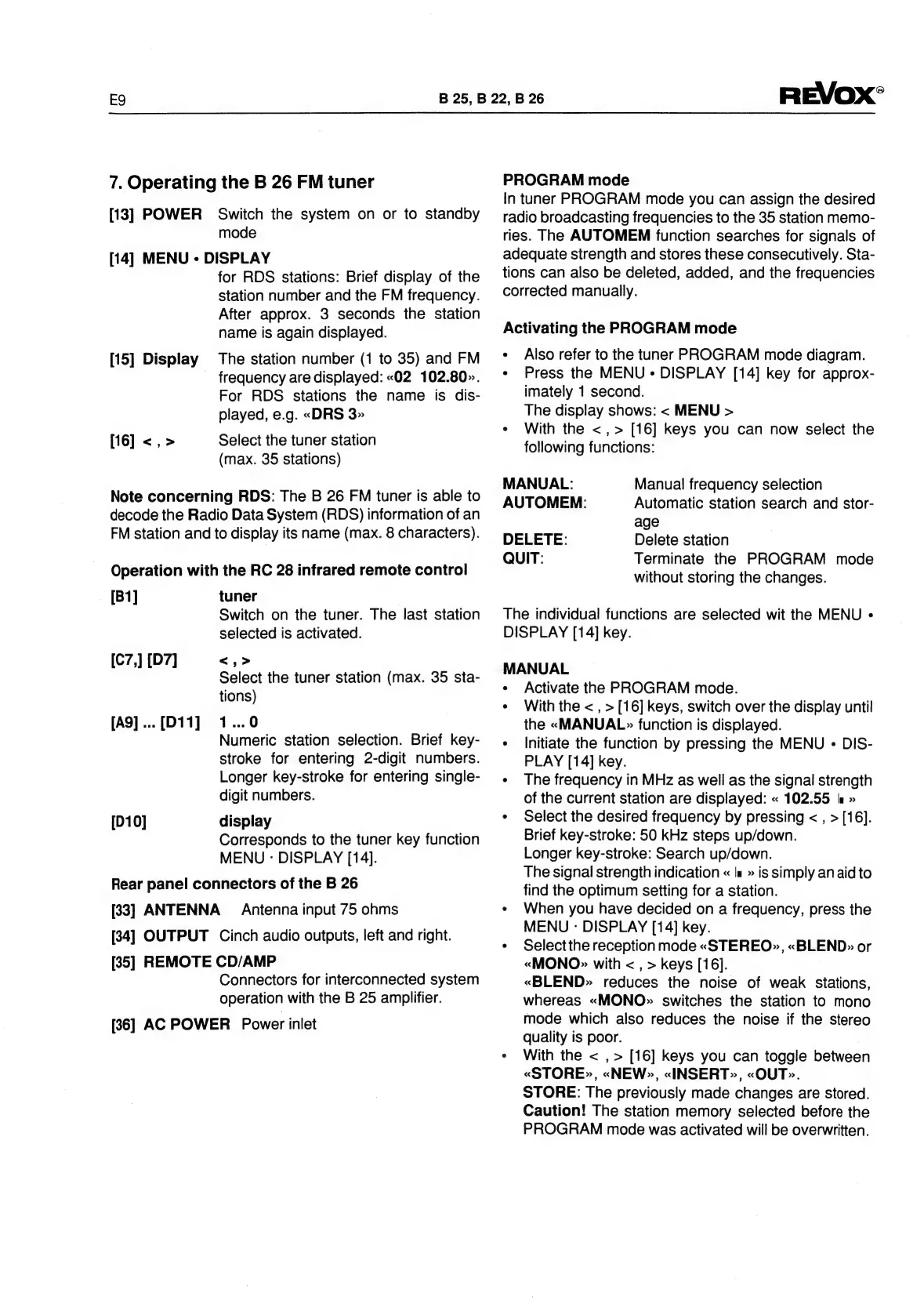

7. Operating the B 26 FM tuner
[13] POWER Switch the system on or to standby
mode
[14] MENU - DISPLAY
for RDS stations: Brief display of the
station number and the FM frequency.
After approx. 3 seconds the station
name is again displayed.
[15] Display The station number (1 to 35) and FM
_ frequency are displayed: «02 102.80».
For RDS stations the name is dis-
played, e.g. «DRS 3»
[16] <,> Select the tuner station
(max. 35 stations)
Note concerning RDS: The B 26 FM tuner is able to
decode the Radio Data System (RDS) information of an
FM station and to display its name (max. 8 characters).
Operation with the RC 28 infrared remote control
[B1] tuner
Switch on the tuner. The last station
selected is activated.
[C7,] [D7]
<,>
Select the tuner station (max. 35 sta-
tions)
[D11] 1...0
Numeric station selection. Brief key-
stroke for entering 2-digit numbers.
Longer key-stroke for entering single-
digit numbers.
[A9] ...
[D10] display
Corresponds to the tuner key function
MENU - DISPLAY [14].
Rear panel connectors of the B 26
[33] ANTENNA = Antenna input 75 ohms
[34] OUTPUT Cinch audio outputs, left and right.
[35] REMOTE CD/AMP
Connectors for interconnected system
operation with the B 25 amplifier.
[36] AC POWER Power inlet
REVOX:
PROGRAM mode
In tuner PROGRAM mode you can assign the desired
radio broadcasting frequencies to the 35 station memo-
ries. The AUTOMEM function searches for signals of
adequate strength and stores these consecutively. Sta-
tions can also be deleted, added, and the frequencies
corrected manually.
Activating the PROGRAM mode
¢ Also refer to the tuner PROGRAM mode diagram.
¢ Press the MENU « DISPLAY [14] key for approx-
imately 1 second.
The display shows: < MENU >
« With the <,> [16] keys you can now select the
following functions:
MANUAL: Manual frequency selection
AUTOMEM: Automatic station search and stor-
age
DELETE: Delete station
QUIT: Terminate the PROGRAM mode
without storing the changes.
The individual functions are selected wit the MENU -
DISPLAY [14] key.
MANUAL
¢ Activate the PROGRAM mode.
¢ With the <, >[16] keys, switch over the display until
the «MANUAL» function is displayed.
¢ Initiate the function by pressing the MENU « DIS-
PLAY [14] key.
¢ The frequency in MHz as well as the signal strength
of the current station are displayed: « 102.55 |: »
¢ Select the desired frequency by pressing < , > [16].
Brief key-stroke: 50 kHz steps up/down.
Longer key-stroke: Search up/down.
The signal strength indication « |s » is simply an aid to
find the optimum setting for a station.
e When you have decided on a frequency, press the
MENU - DISPLAY [14] key.
¢ Selectthe reception mode «STEREO», «BLEND» or
«MONO» with < , > keys [16].
«BLEND» reduces the noise of weak stations,
whereas «MONO» switches the station to mono
mode which also reduces the noise if the stereo
quality is poor.
« With the < , > [16] keys you can toggle between
«STORE», «NEW», «INSERT», «OUT».
STORE: The previously made changes are Stored.
Caution! The station memory selected before the
PROGRAM mode was activated will be overwritten.
