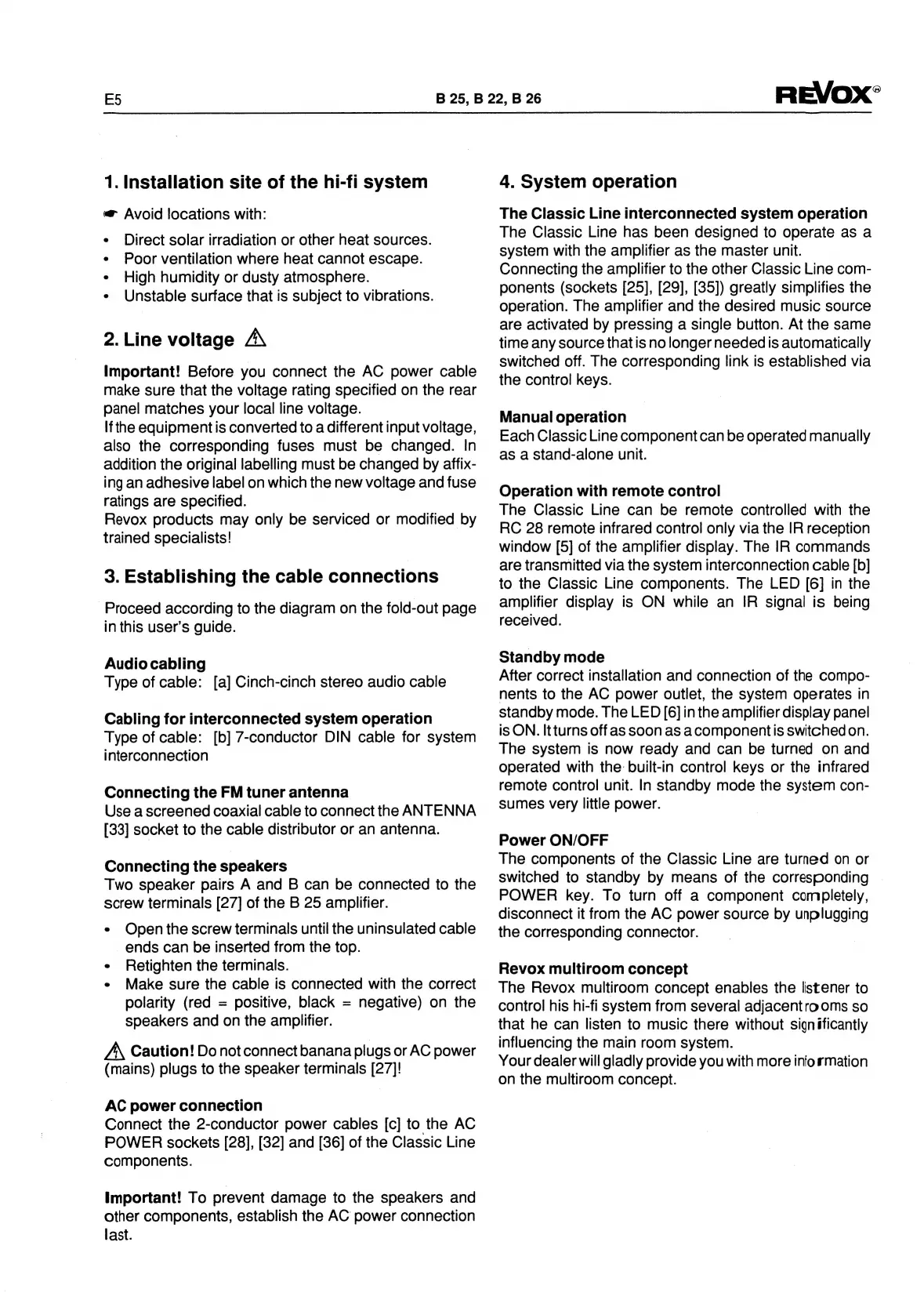

1. Installation site of the hi-fi system
@ Avoid locations with:
¢ Direct solar irradiation or other heat sources.
¢ Poor ventilation where heat cannot escape.
¢ High humidity or dusty atmosphere.
¢ Unstable surface that is subject to vibrations.
2. Line voltage A\
Important! Before you connect the AC power cable
make sure that the voltage rating specified on the rear
panel matches your local line voltage.
If the equipment is converted to a different input voltage,
also the corresponding fuses must be changed. In
addition the original labelling must be changed by affix-
ing an adhesive label on which the new voltage and fuse
ratings are specified.
Revox products may only be serviced or modified by
trained specialists!
3. Establishing the cable connections
Proceed according to the diagram on the fold-out page
in this user’s guide.
Audio cabling
Type of cable: [a] Cinch-cinch stereo audio cable
Cabling for interconnected system operation
Type of cable: [b] 7-conductor DIN cable for system
interconnection
Connecting the FM tuner antenna
Use a screened coaxial cable to connect the ANTENNA
[33] socket to the cable distributor or an antenna.
Connecting the speakers
Two speaker pairs A and B can be connected to the
screw terminals [27] of the B 25 amplifier.
¢ Open the screw terminals until the uninsulated cable
_ ends can be inserted from the top.
e Retighten the terminals.
¢« Make sure the cable is connected with the correct
polarity (red = positive, black = negative) on the
speakers and on the amplifier.
A Caution! Do not connect banana plugs or AC power
(mains) plugs to the speaker terminals [27]!
AC power connection
Connect the 2-conductor power cables [c] to the AC
POWER sockets [28], [32] and [36] of the Classic Line
components.
Important! To prevent damage to the speakers and
other components, establish the AC power connection
last.
REVOX’
4. System operation
The Classic Line interconnected system operation
The Classic Line has been designed to operate as a
system with the amplifier as the master unit.
Connecting the amplifier to the other Classic Line com-
ponents (sockets [25], [29], [85]) greatly simplifies the
operation. The amplifier and the desired music source
are activated by pressing a single button. At the same
time any source that is no longer needed is automatically
switched off. The corresponding link is established via
the control keys.
Manual operation
Each Classic Line component can be operated manually
as a Stand-alone unit.
Operation with remote control
The Classic Line can be remote controlled with the
RC 28 remote infrared control only via the IR reception
window [5] of the amplifier display. The IR commands
are transmitted via the system interconnection cable [b]
to the Classic Line components. The LED [6] in the
amplifier display is ON while an IR signal is being
received.
Standby mode
After correct installation and connection of the compo-
nents to the AC power outlet, the system operates in
standby mode. The LED [6] inthe amplifier display panel
is ON. It turns offas soon as acomponentis switched on.
The system is now ready and can be turned on and
operated with the built-in control keys or the infrared
remote control unit. In standby mode the system con-
sumes very little power.
Power ON/OFF
The components of the Classic Line are turned on or
switched to standby by means of the corresponding |
POWER key. To turn off a component completely,
disconnect it from the AC power source by unplugging
the corresponding connector.
Revox multiroom concept
The Revox multiroom concept enables the listener to
control his hi-fi system from several adjacent rooms so
that he can listen to music there without sign #ficantly
influencing the main room system.
Your dealer will gladly provide you with more information
on the multiroom concept.
