Preparing
the
Recorder for
Use
..,.,.,:.;'F*i
,,.ta,'':*,*l
M
t-_
((D)
@,
'.,
W
(-----.
$,
^1
$,
::i]:r.:,:

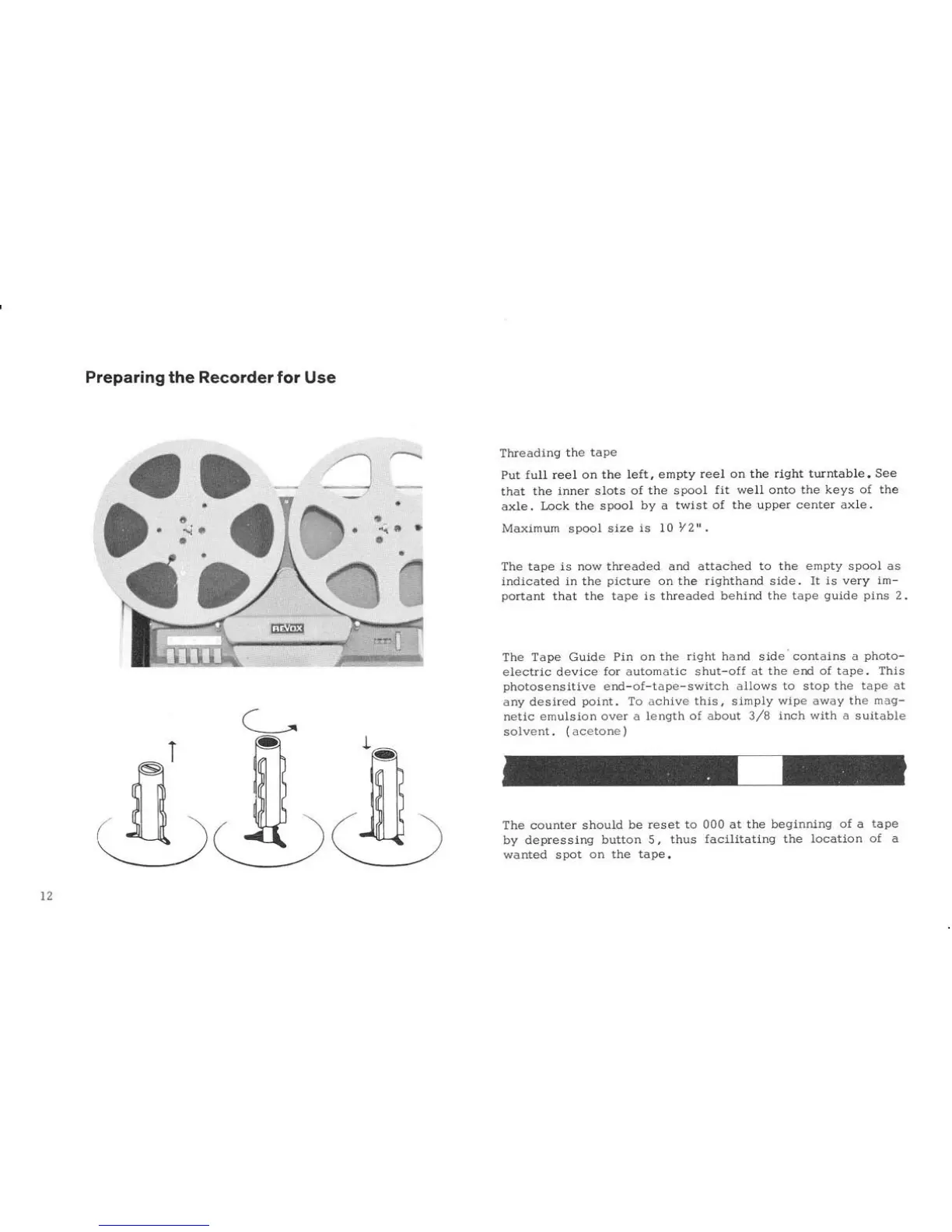

Threading
the
tape
Put
full reel on
the left,
empty
reel on the
right
turntable.
See
that
the inner slots
of the spool
fit well onto the keys
of the
axle.
Lock
the spool
by a
twist of
the upper center axle'
Maximum
spool
size
is I0 Y2".
The
tape is now threaded and attached
to the empty spool as
indicated ln the
on the
righthand side, It
is very
im-
portant
that the tape
is threaded behind
the tape
guide plns
2.
The
Tape Guide Pin
on the
right hand
side
contains a
photo-
electric device
for automatic shut-off
at
the end of tape. This
photosensltive
end-of-tape-switch
allows to stop
the tape at
any
desired
point.
To achive
this,
simply
wipe
away
the
mag-
netic
emulsion over a length
of about 3,/B
inch with a
suitable
solvent.
(acetone)
The counter should
be
reset to
by depressing
button 5,
thus
wanted spot
on the
tape.
000 at the
beginning
of
a
tape
facilitating the
location of a
t2
