Revox G 36 User Manual

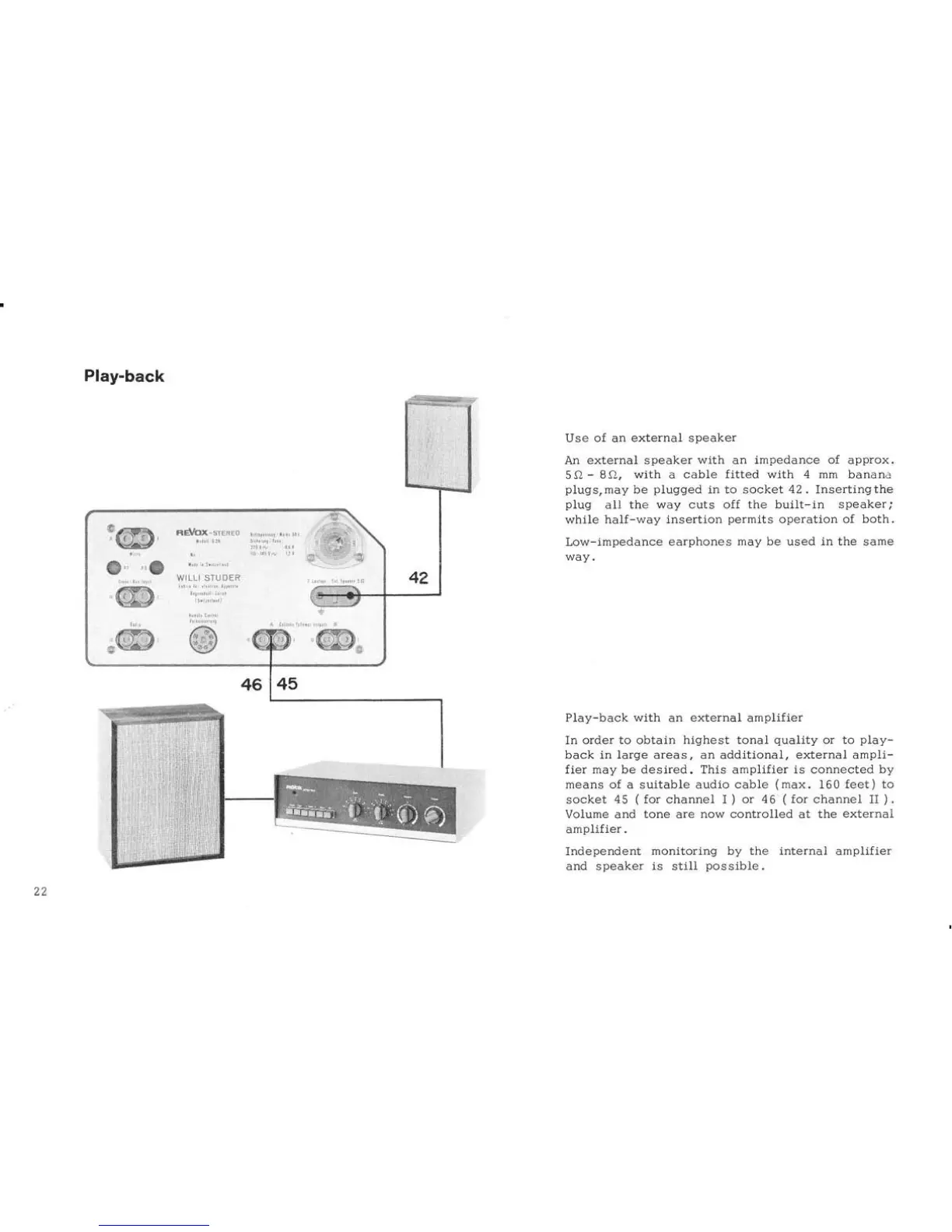

Play-back
46
45
Use of an
external
speaker
An
external
speaker
with an impedance
of
approx.
5Sl
-
8C), with a cab.le
fitted with 4
mm banana
plugs,may
be
plugged
in to socket
42.
lnsertingthe
plug
all the
way
cuts off
the built-in speaker,'
while half-way
lnsertlon
permits
operation of
both.
Low-impedance
earphones
may be
used
in
the same
way.
Play-back
with
an external amplifier
In order to obtain
highest
tonal
quality
or to
play-
back in Iarge
areas, an additional,
external ampli-
fier may be desired. This amplifier is connected by
means of
a
suitable
audio
cable
(max.
160 feet) to
socket
45
(
for channel I
)
or
46
(
for channel II
).
Volume and tone are
now controlled
at
the
external
amplifier.
Independent
monitoring by the internal
amplifier
and speaker
is still
possible.
22
