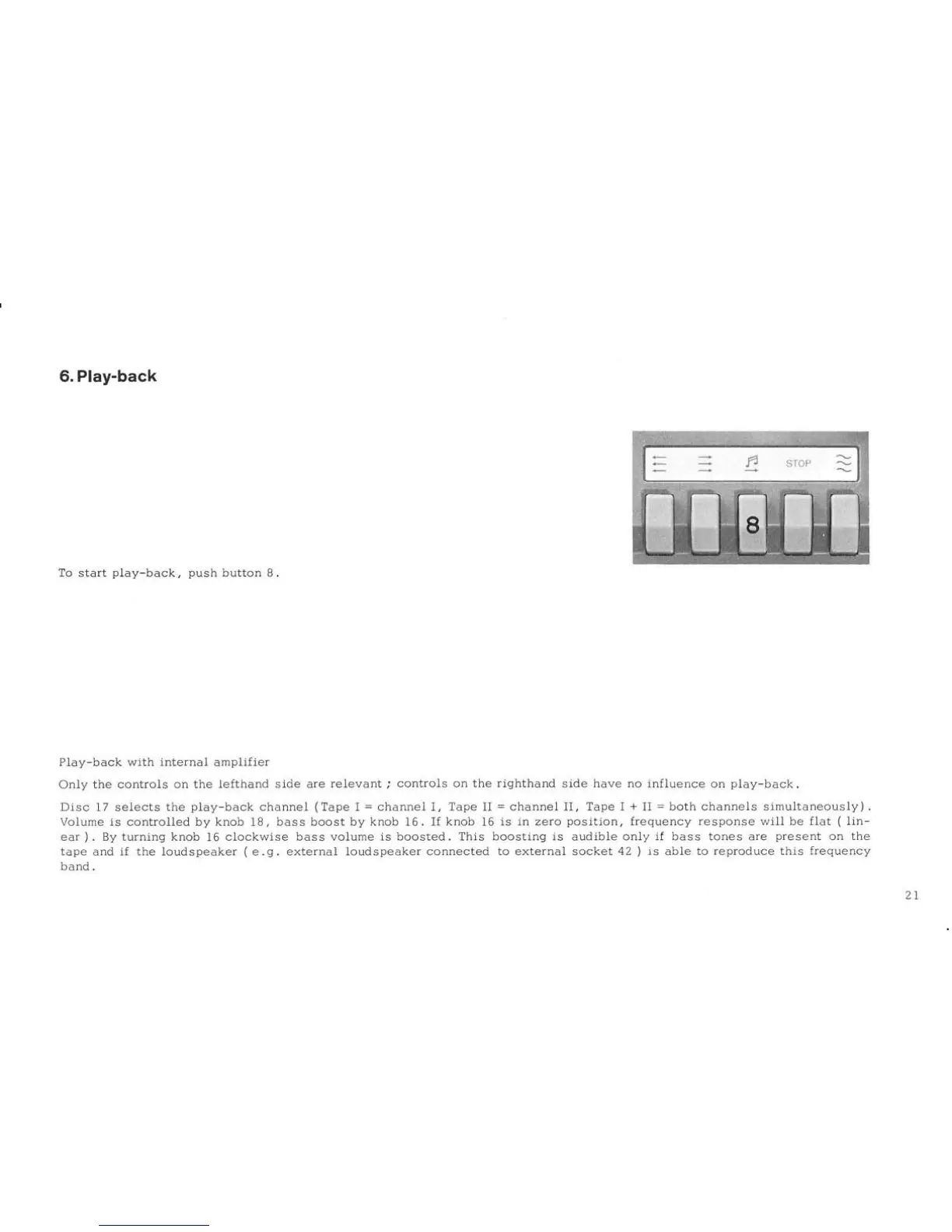

6. Play-back
To
start
play-back, push
button B.
Play-back with internal amplifier
Only the controls
on the lefthand slde are
relevant;
controls on the righthand
side
have
no
j.nfluence
on
play-back.
Disc
17 selects
the
play-back
channel
(Tape
i
=
channel I, Tape II
=
channel iI,
Tape I
+
II
=
both channels simultaneously).
Vo]ume is
controlled by
knob
18,
bass boost by knob 16. If knob 16
is in zero
position,
frequency
response
wil] be
flat
(
lin-
ear). Byturning knob
16 clockwlse
bass volume is boosted. This boosting
is
audible only
rf bass tones are
present
on the
tape and if the loudspeaker
(
e.g. external loudspeaker
connected to external socket 42
)
is
able to
reproduce
this
frequency
band.
2t
