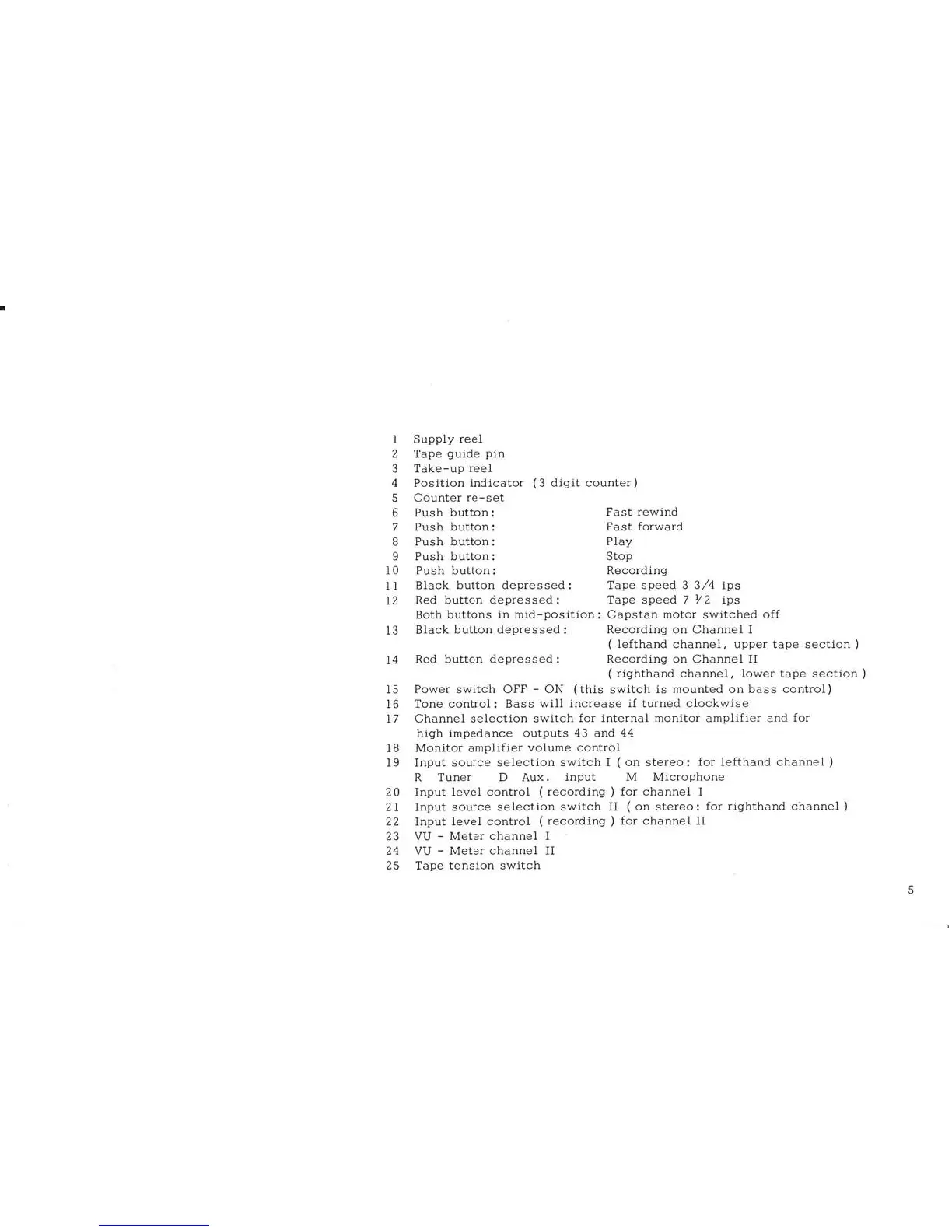

I Supply
reel
2
Tape
guide
pln
3
Take-up
reel
4 Position indicator
(3
digit counter)
5 Counter
re-set
6 Push
button:
Fast rewind
7
Push button: Fast
forward
B
Push button:
PIay
9 Push button: Stop
l0 Push
button:
Recording
11
Black
button depressed: Tape speed 3 3/4 ips
I2
Red button depressed: Tape speed 7
t/2
ips
Both buttons
in mid-position:
Capstan
motor
switched
off
13
Black button
depressed: Recording on
Channel
I
(
lefthand channel, upper tape section
)
14
Red button
depressed: Recording on Channel I1
(
righthand channel, lower tape
section
)
15 Power switch OFF
-
ON
(this
switch
is
mounted
on
bass control)
16 Tone
control.: Bass
will increase if turned clockwise
17 Channel
selection switch
for internal monitor amplifrer and
for
high impedance
outputs 43
and
44
18 Monitor amplifier
volume control
t9 Input
source selection swltch I
(
on stereo: for lefthand channel
)
R Tuner D
Aux.
input M Microphone
20 Input
level control
(
recording
)
for channel I
2I Input source selection
switch II
(
on stereo:
for
righthand
channel
)
22
Input
level control
(
recording
)
for channel II
23 VU
-
Meter
channel I
24 VU
-
Meter channel II
25 Tape tension switch
