INDEX ORDER
N°
PART DESCRIPTION SERIES Qu Ind
III
I II III
E

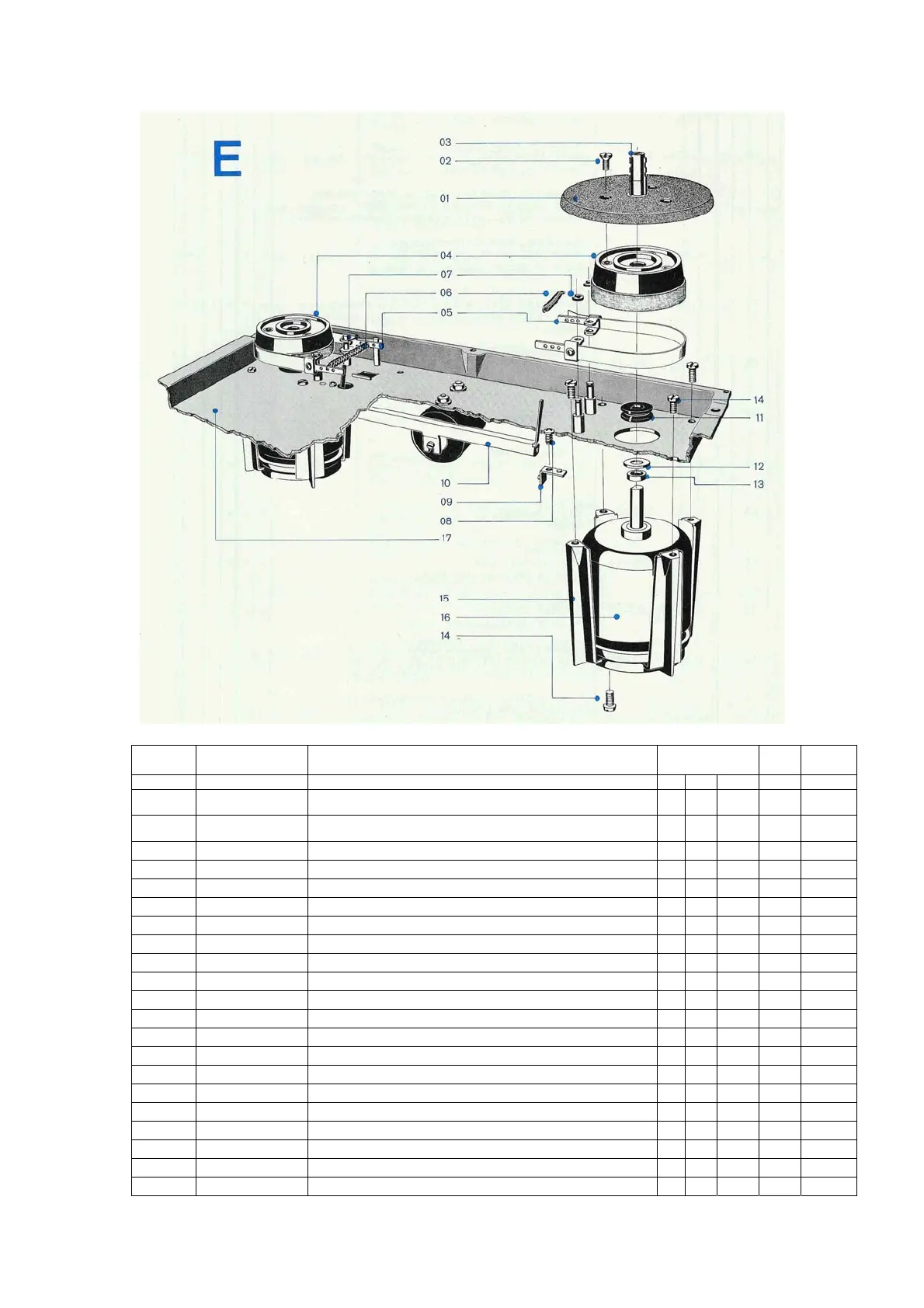

Brakes – Spooling Motors
01 1.736.794 Turntable with Shaft Section x x x 2 7100
02 21.02.3355 Machine Screw Oval Head M 3x8 x x x 6 7104
03 1.736.794-01 Shaft Section, Upper x x x 2 7101
1.736.794-02 Shaft Screw x x x 2 7102
1.736.794-03 Reel Lock Spring x x x 2 7103
04 1.736.360 Brake Drum Complete x 2 7096
04 1.736.358 Brake Drum Complete x x 2 7097
Brake Lining, Available by the Metre
1.736.360-01 Mounting Spring, Brake Drum x x x 7098
05 1.736.351 Brake Band, Complete with Mounting Brackets x x x 2 7105
06 1.736.502-10 Brake Tension Spring x x x 2 7106
07 24.16.3032 Retaining Ring x x x 4
08 20.21.7153 Self-tapping Screw 4x1/4” x x x 2
09 1.736.502-07 Angle Bracket x x x 2
10 1.736.502-14 Brake Release Arm x x x 1
11 1.736.502-02 Counter Pulley x x x 1 7127
12 1.736.502-05 Shim Washer Left & Right 0.5 mm x x x 2
1.736.502-04 Shim Washer 0.2 mm for height Adjustment of
