Revox M219 User Manual

M219 Additional room amplifier
M Series
11
Please note: SCART sockets
Many devices such as SAT receivers, video recorders or DVD
players output a switching voltage through the SCART socket as
soon as they are switched on.
On a standard SCART socket, PIN 8 outputs the positive voltage (+)
and PIN 4 or 14 is the earth (-).
L

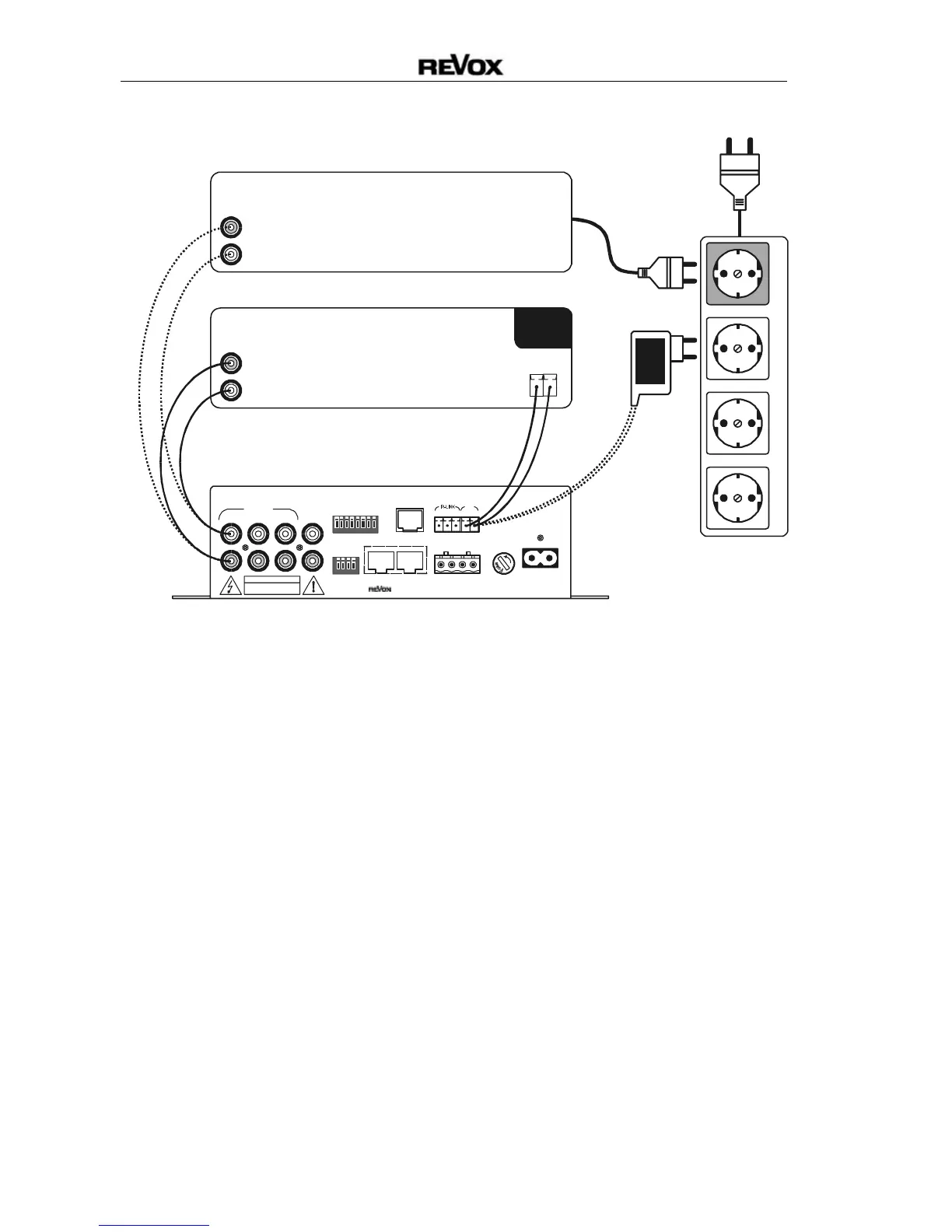

The principle of Master/Slave socket outlets
With this type of socket outlets, the control device (the TV in the above
example) is plugged into the master socket while all other devices are
connected through the slave sockets. As long as the master device is not
switched on, all slave sockets remain switched off. Once the master device is
switched on, all the slave sockets (the plug-in power supply in the above
example) are switched on at the same time.
In this way, you can “upgrade” any type of device to give it a switching-
voltage output.
Cabling: Voltage input IN
1432 5678
1432
PRE
OUT
SETUP
M219
LINK
CHANNEL
SELECT
IN OUT + R - - L +
MR-BUS SPEAKERS
230V / T0,5A L
115V / T1A L
LOCAL IN
L
R
123
IN
IN +
--
+
FUSE
A
C - POWER
CAUTION
Ri SK OF ELECTR IC SHOCK
DO NOT OPEN
ON
ON
Local (audio)-source
e.g. SAT-receiver
WITH
switching-voltage output
Local (audio)-source
e.g. TV
WITHOUT
switching-voltage output
-
+
Audio
OUT
Audio
OUT
Master
SlaveSlaveSlave
5-24V
OUT DC
5-24V
OUT DC
