Falk V-Class
TM
• Bucket Elevator Inching Drive • Installation, Operation & Maintenance Manual
Type VR Series • Sizes M107 thru M227 (Page 6 of 12)

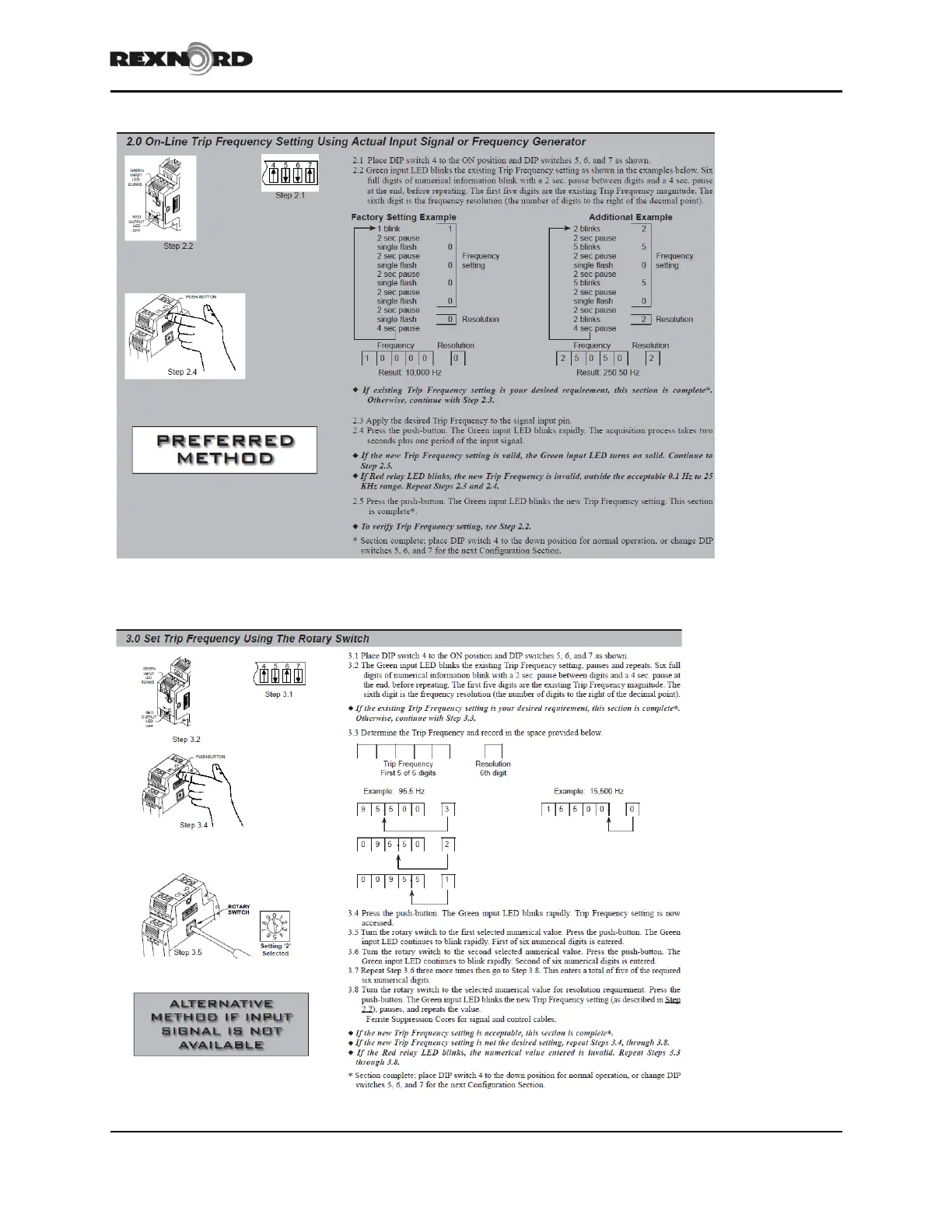

Step 2: Set trip frequency using actual input speed.
Figure 12 – Set trip frequency using actual input
Step 3: Set trip frequency using rotary switch
(required only if step 2 was not completed).
Figure 13 – Set trip frequency with rotary switch
