Rexnord Falk V-Class VR - Page 7

Rexnord
3001 W. Canal St., Milwaukee, WI 53208-4200
Telephone: 414-342-3131 Fax: 414-937-4359 www.rexnord.com
178-810
July 2015
Falk V-Class
TM
• Bucket Elevator Inching Drive • Installation, Operation & Maintenance Manual
Type VR Series • Sizes M107 thru M227 (Page 7 of 12)

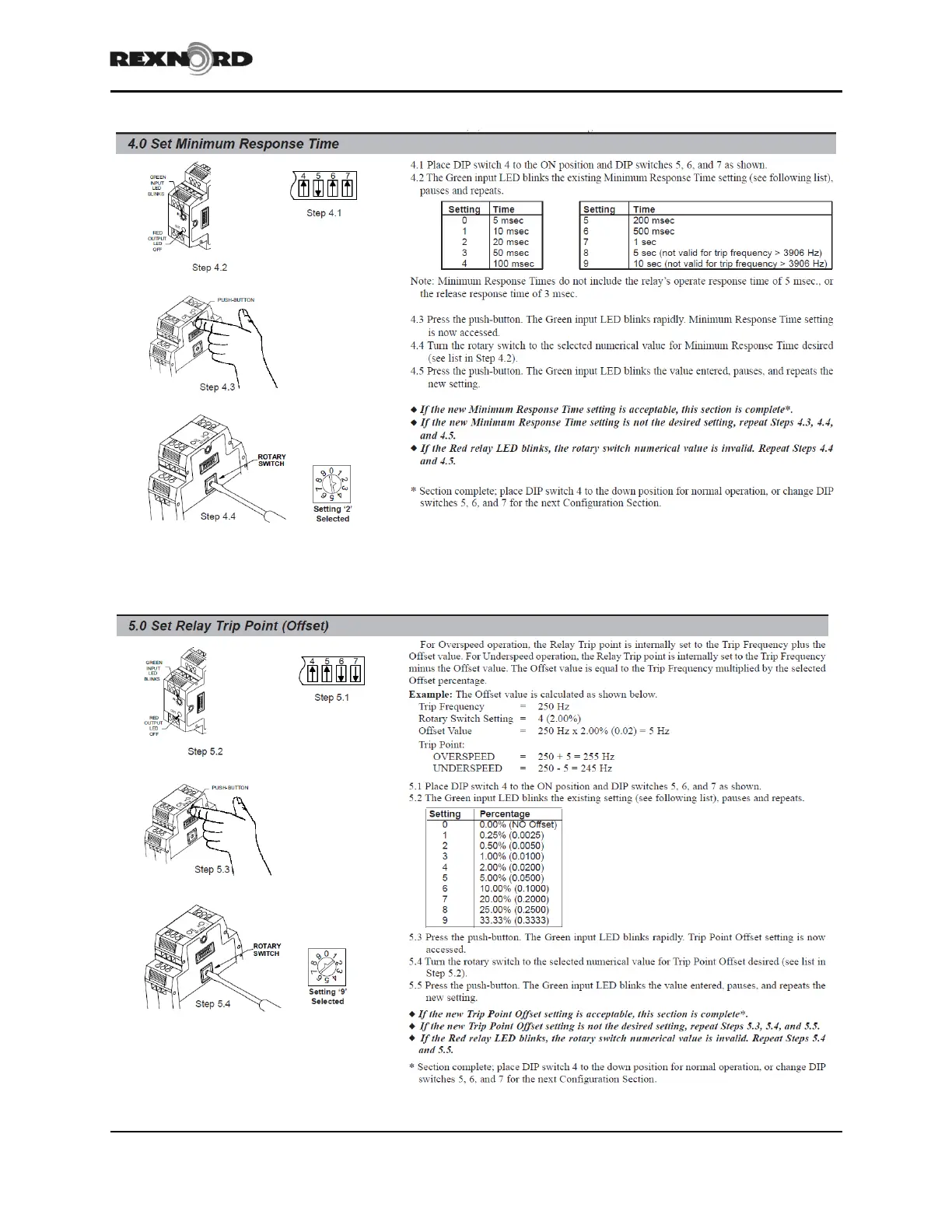

Step 4: Use standard factory setting of “0” (5 msec).
Figure 14 – Set minimum response time
Step 5: Use setting number 5 (5.0%) to account for
any variation in motor speed.
Figure 15 – Set relay trip point (offset)
