REXROTH IndraControl L65 - 10.2.2 Housing dimensions L25

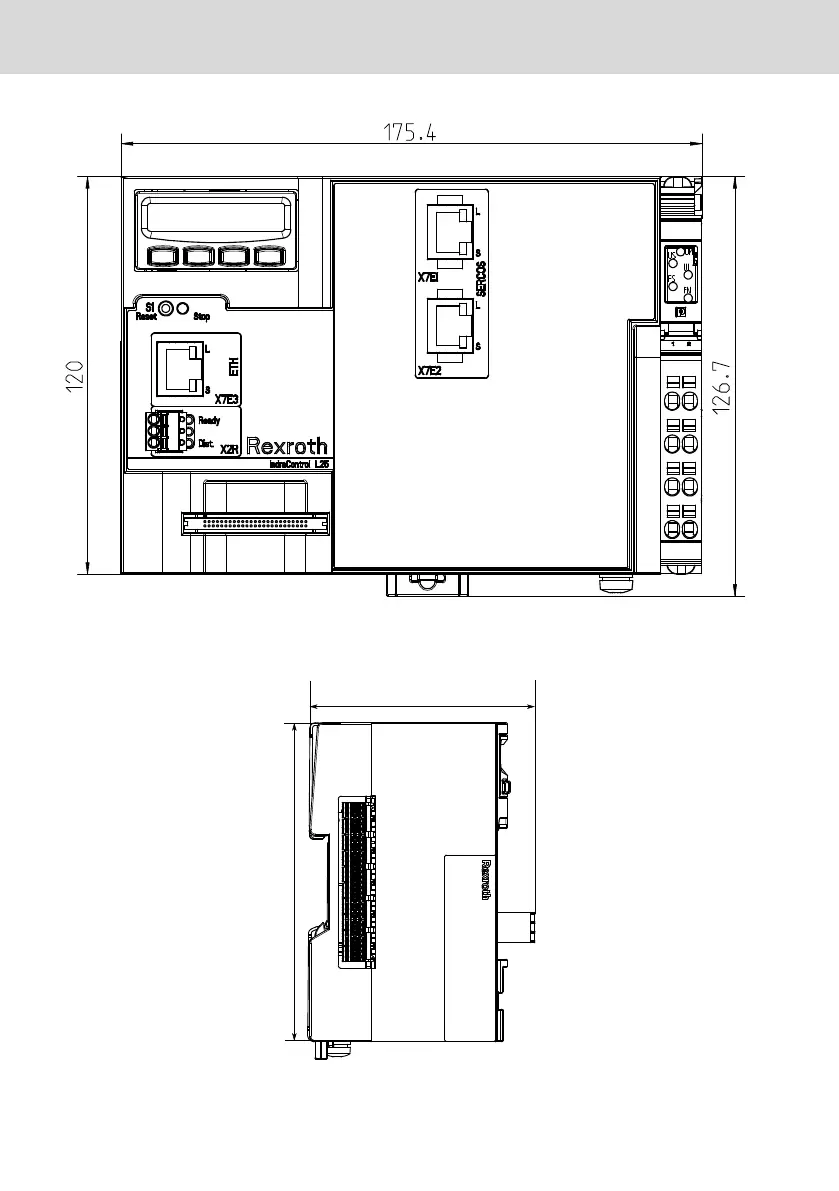

Fig. 10-6: L25, front view (in mm)
120
107
Fig. 10-7: L25, left view (in mm), the cut-out for the top-hat rail is arranged centrally
Bosch Rexroth AG
Mounting, demounting and electric installation
L25, L45, L65, L75 and L85
20/53
DOK-CONTRL-IC*LX5*****-IT02-EN-P
