REXROTH IndraControl L65 - 14.4 Lithium battery

15 Ordering information

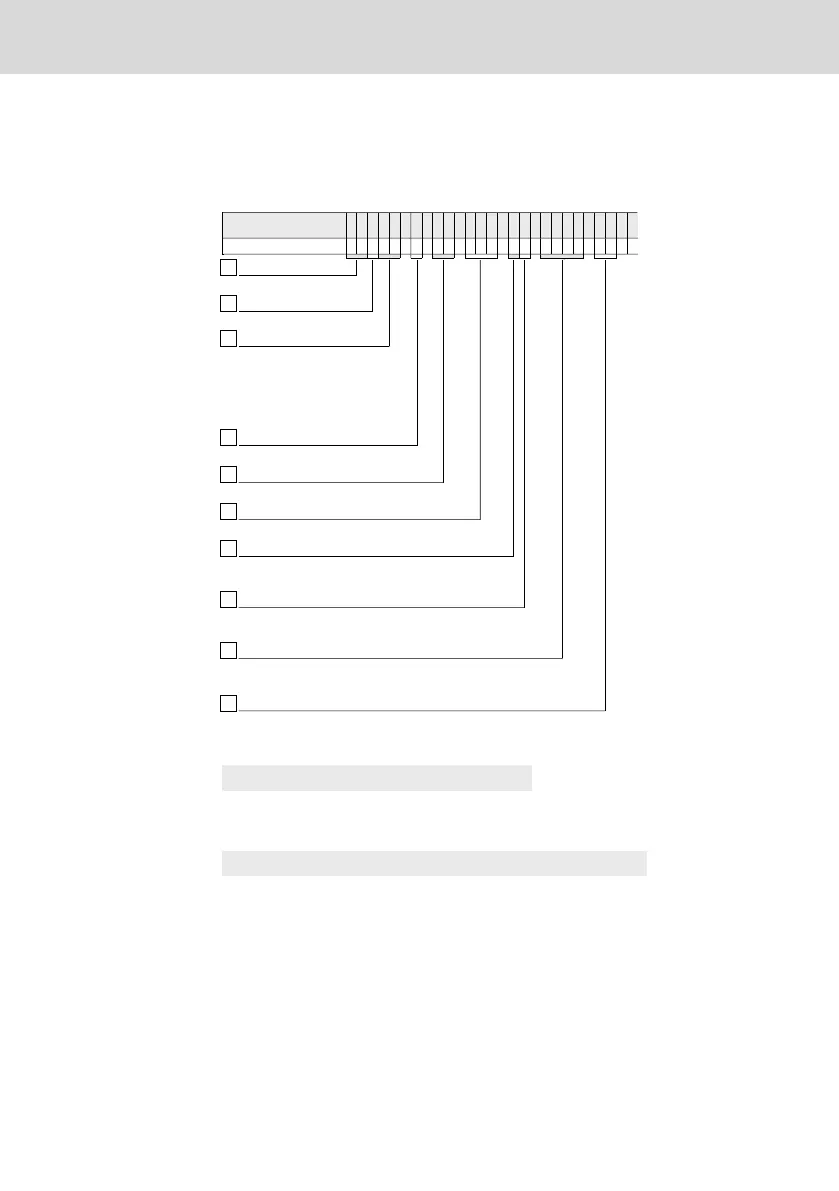

15.1 Type code Lx5
Short type description
1 2 3 4 5 6 7 8 9
1
0 1 2 3 4 5 6 7 8 9
2
0 1 2 3 4 5 6 7
Example: C M L 2 5 . 1 - 3 N - 4 0 0 - N N - N N N N - N W
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
x x x x x x x x x x x x x x x x x x
01
Product
Main unit ............ = CM
02
Housing design
Inline ............................ = L
03
Series, performance class
25.................................... = 25
45.................................... = 45
65.................................... = 65
75 .................................... = 75
85.................................... = 85
04
Design, CPU variant
1................................................. = 1
05
Communication interface
1)
E. g. not equipped............................. = NN
06
System spezification
2)
E. g. 256 MB ................................................. = 504
07
Fan
With fan ..................................................................... = F
Without....................................................................... = N
08
Digital inputs, digital outputs
None ..............................................................................= N
8 inputs, 8 outputs ........................................................= A
09
Other design
With connecting plug............................................................ = NNC1
None ................................................................................... = NNNN
10
Firmware
Without firmware ................................................................................... = NW
Note :
1) Table of communication interface combinations
Interface 1
Short text
column 9
Interface 2
column 10
Not equipped N Not equipped N
Sercos III 3 Sercos III 3
Profibus P Profibus P
2) Table of system spezification combinations
DRAM (MB) NvRAM (kB) SRAM (MB)
256 5
Without
0 16 5
512 6 0 Without 0
1024 7 0 0
2048 8 0 0
4096 9 Without Without
Without Without
Without Without
Without
0 0
Short text
Short text
column 12 column 13
Short text
column 14
Short text
128 4
Without
0 8 4
Fig. 15-1: Type code Lx5
15.2
Accessories and spare parts
For ordering information on accessories and spare parts, refer to chapter 5
"Spare parts, accessories and wear parts" on page 6.
L25, L45, L65, L75 and L85
Bosch Rexroth AG
Ordering information
DOK-CONTRL-IC*LX5*****-IT02-EN-P
47/53
