9.4 S1 DIP Switch
9.4.1 Overview
S1
1 2

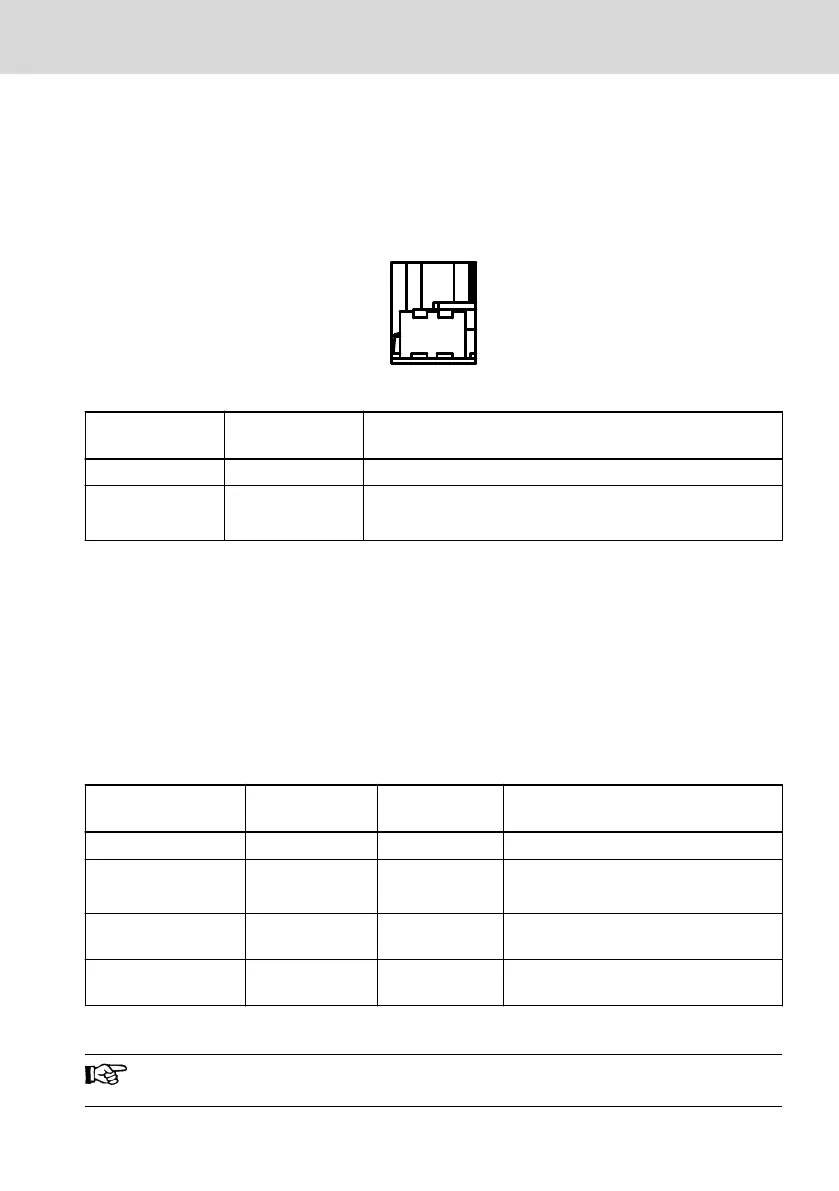

Fig. 9-3: S1 DIP switch on the connector panel of the operating display
Designation at the
housing
Switch type Function
S1/1 DIP switch No function
S1/2 DIP switch OFF: Cable length to the control cabinet PC ≤ 30 m
ON: Cable length to the control cabinet PC > 30 m
Tab. 9-2: DIP switch at the VDP
9.5 USB Interfaces
The devices feature four USB interfaces on the connector panel (XUSB1/2 and
XUSB3/4), and, depending on the version, one interface on the front panel.
Operation of the USB ports on the operating display
The USB speed at the operating display depends on the cable length of the
XSER connection and of the DIP switch setting, see tab. 9-3 "USB speeds de-
pending on the XSER cable length" on page 15:
Cable length of the
XSER connection
DIP switch S1/2 USB speed Note
Up to 5 meters OFF 12 Mb/s -
Up to 5 meters OFF 480 Mb/s
(USB2.0)
An additional USB cable between con-
trol cabinet PC and XUSBIN is required
From 5 to 30 meters OFF 12 Mb/s Make sure that the connected device
does not contain a USB hub
Longer than 30 me-
ters
ON 12 Mb/s Hubs (USB hubs) are not supported
Tab. 9-3: USB speeds depending on the XSER cable length
Interference-free USB2.0 connection is possible up to a cable length
of 5 meters only.
VDP 16.3, VDP 40.3, VDP 60.3 Bosch Rexroth AG
Interfaces
DOK-SUPPL*-VDP*XX.3***-IT03-EN-P
15/53
