Threads Mounting torques
M4 1.4 Nm
M5 2.8 Nm
Tab. 10-3: Mounting torques
10.4 Mounting Dimensions VDP 16.3
167.5 167.5
137.5137.5
8.5
8.5
318
258
275
335
5,0
1
2
① Drilled hole for the mounting bolts, bore diameter 5 mm
② Mounting cut-out

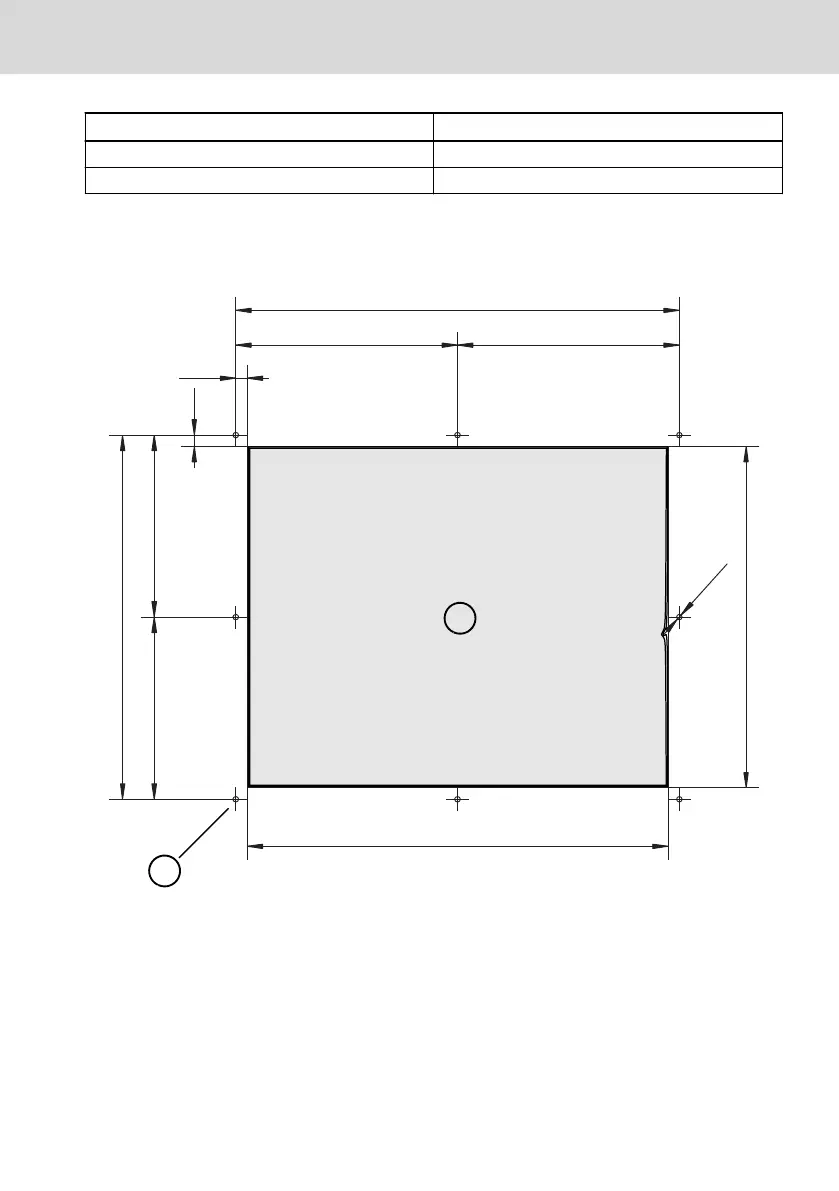

Fig. 10-17: Mounting dimensions of the VDP 16.3 devices (in millimetres)
VDP 16.3, VDP 40.3, VDP 60.3
Bosch Rexroth AG
Assembly, Disassembly and Electrical Installation
DOK-SUPPL*-VDP*XX.3***-IT03-EN-P
27/53
