10-18 MKD112 Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
Y
2
25°
138
169
122
3
B
C
A
ø130 j6
ø32 k6
M10-22
181
105
1
X
52
1)
ø107
18
60
71
458
A
4
ø62
Pg36
71
45°
45°
14
192±1
4 x M10 - 15
165
±0,2
245
215
B
4
C
R1,6
60
4
Einzelheit Y:
Ø40
1x15º
Ø110
Motor as per DIN EN 60034-7 1996-06,
B5 for all mounting orientations
• Flange as per DIN 42948, ed. 11.65
• Position accuracy per concentricity,
excentricity and coaxiality to shaft as per
DIN 42955 tolerance class N, ed. 12.81
• Shaft end per DIN 748 part 3, ed. 07.75,
IEC 72, ed. 1971, cylindrical
• center drill hole DS M10 per
DIN 332 part 2, ed. 05.83
max. screw tightening torque 25,0 Nm
• vibration severity level N per
DIN VDE 0530 part 14, ed. 02.93
mb_mkd112st380_en.fh7
45
5+0,2
10
N9
Options:
4
Output direction
The output direction of the power connector is selected
at the time of ordering. Possible directions are:
• to side A
• to side B
• to the right
• to the left
Side B is the output direction illustrated. The dimensions
for side A as output direction can be obtained by turning
the connector around the X- axis.
2
1
3
4
45
10
t = 8
Matching keyway: DIN 6885-A 10 x 8 x 45,
not part of delivery.
1) connector not included in delivery
Motor encoder
• Resolverfeedback (RSF)
• Resolverfeedback (RSF) with integal
multiturn absolute encoder
The dimensions are identical.
Holding brake:
• without
• with
The dimensions are identical.
Output shaft
• plain shaft (preferred type)
• with keyway per DIN 6885 sheet 1, ed. 08.68
(Note! balanced with entire key!)
side A
side B
left
right

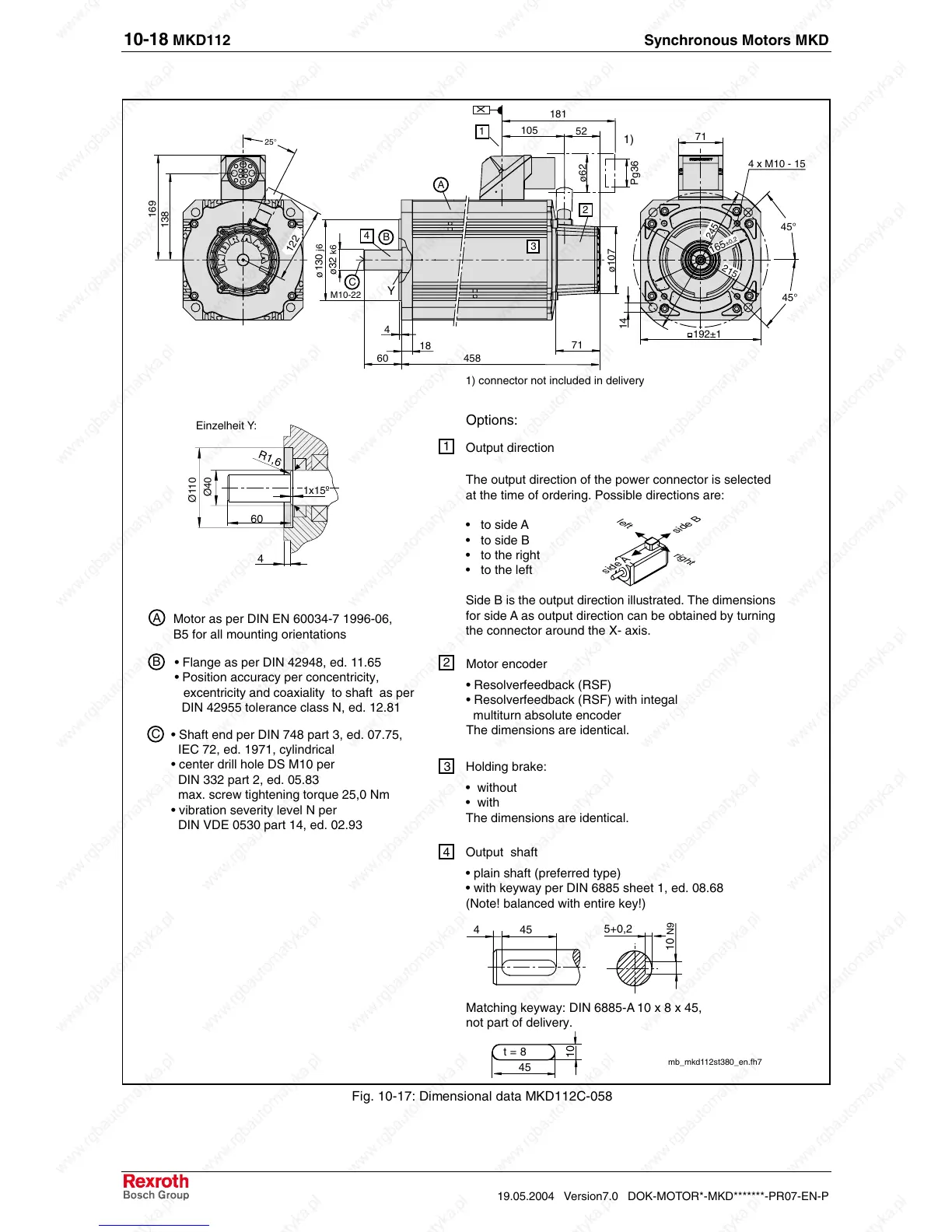

Fig. 10-17: Dimensional data MKD112C-058
