Synchronous Motors MKD MKD090 9-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004

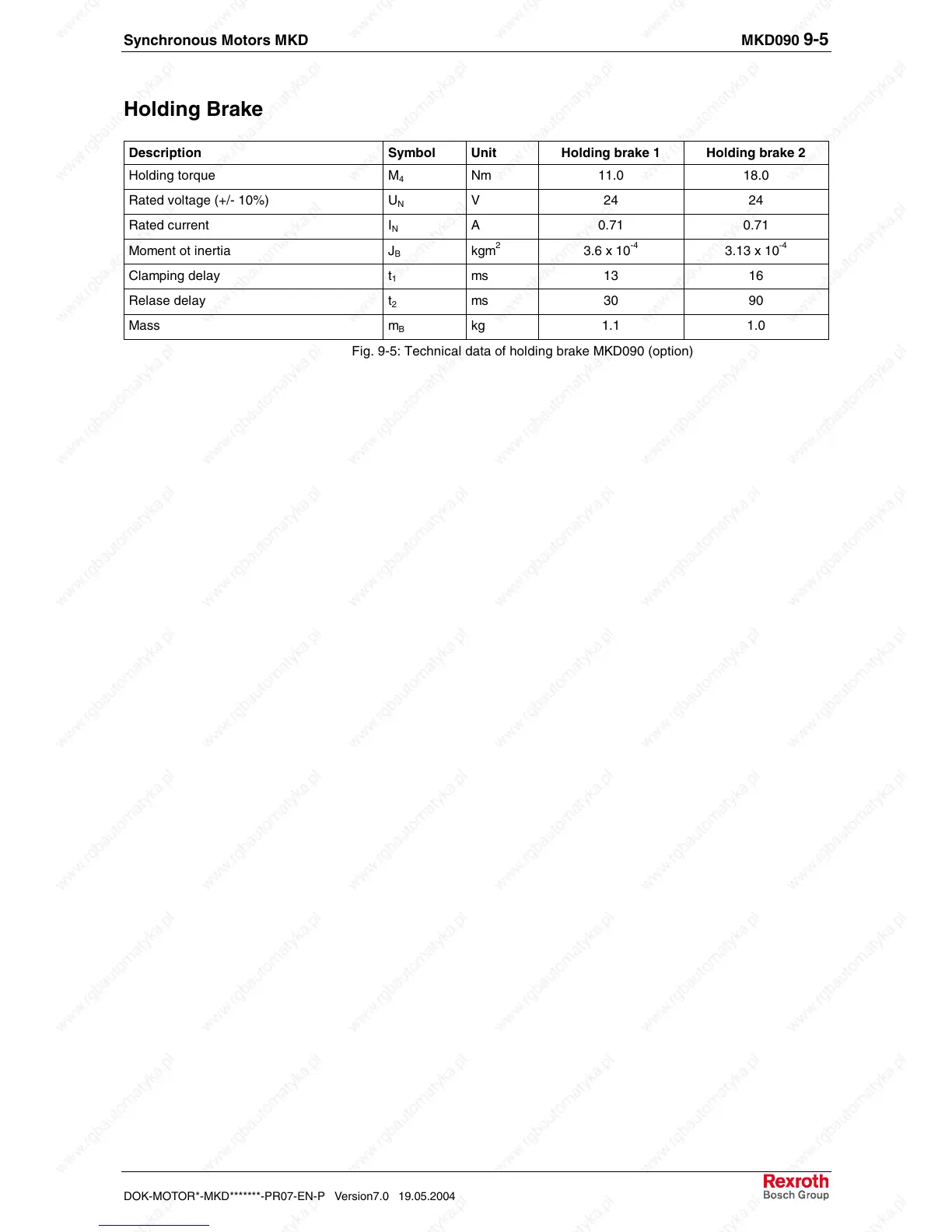

Holding Brake
Description Symbol Unit Holding brake 1 Holding brake 2
Holding torque M
4
Nm 11.0 18.0
Rated voltage (+/- 10%) U
N
V24 24
Rated current I
N
A 0.71 0.71
Moment ot inertia J
B
kgm
2
3.6 x 10
-4
3.13 x 10
-4
Clamping delay t
1
ms 13 16
Relase delay t
2
ms 30 90
Mass m
B
kg 1.1 1.0
Fig. 9-5: Technical data of holding brake MKD090 (option)
