Synchronous Motors MKD Introduction 1-3
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
MKD motors are permanent-magnet motors with electronic commutation.
Special magnet materials permit the motors to be designed with low
inertia masses. The following figure shows the principal design of MKD
motors.
X01MH81.fh7
Rotor shaft
Motor feedback
Rotor with
permanent magnets
Holding brake
(optional)
Stator with
winding

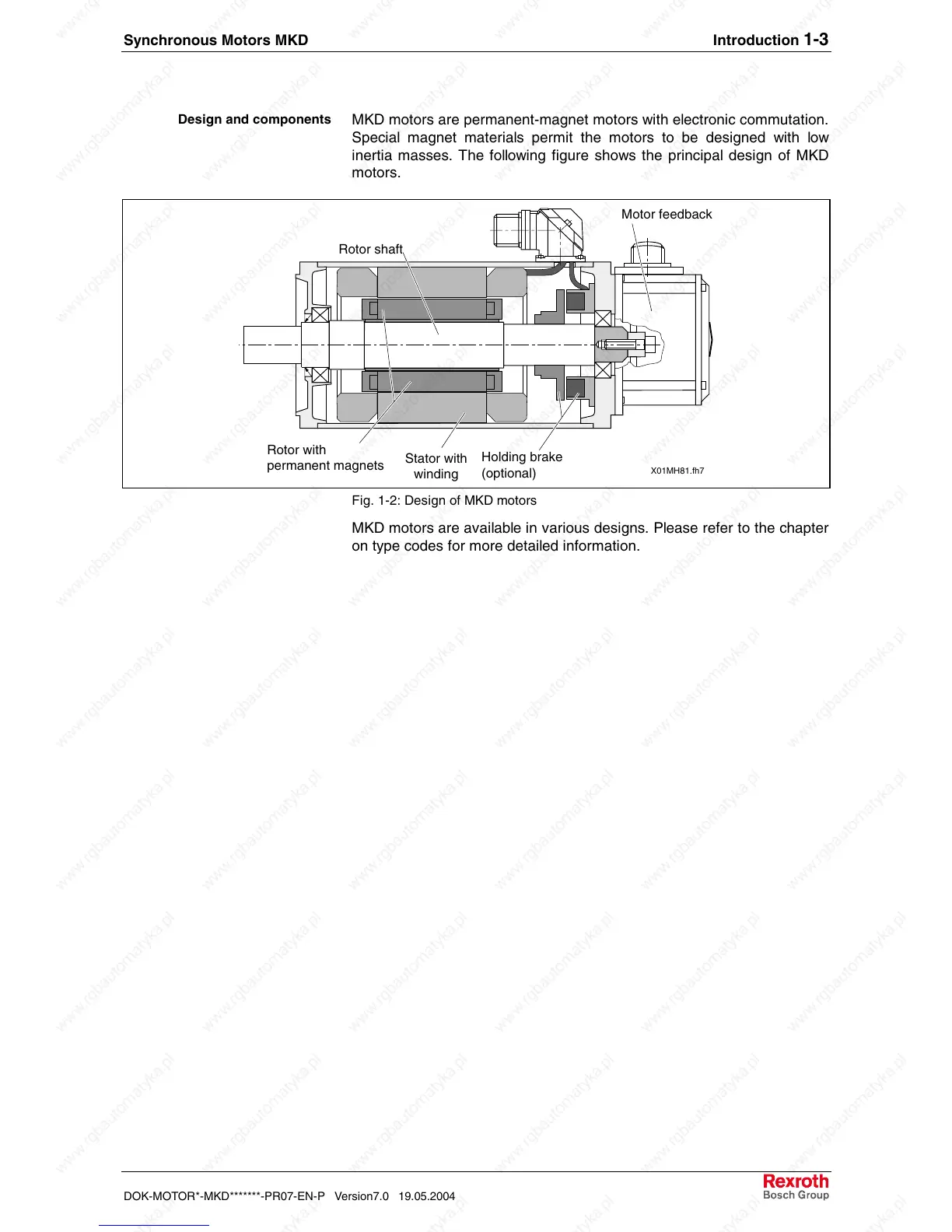

Fig. 1-2: Design of MKD motors
MKD motors are available in various designs. Please refer to the chapter
on type codes for more detailed information.
