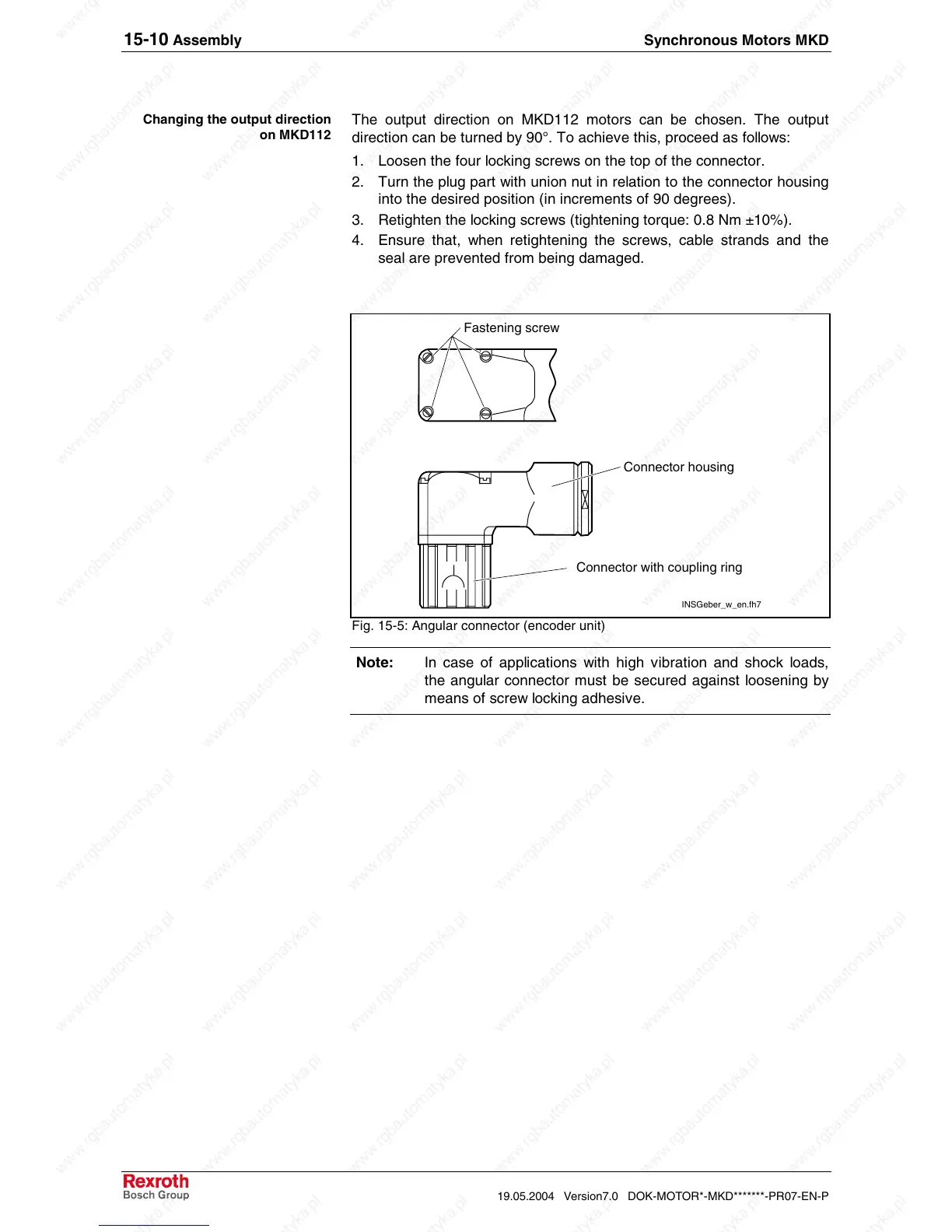

15-10 Assembly Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
The output direction on MKD112 motors can be chosen. The output
direction can be turned by 90°. To achieve this, proceed as follows:
1. Loosen the four locking screws on the top of the connector.
2. Turn the plug part with union nut in relation to the connector housing
into the desired position (in increments of 90 degrees).
3. Retighten the locking screws (tightening torque: 0.8 Nm ±10%).
4. Ensure that, when retightening the screws, cable strands and the
seal are prevented from being damaged.
INSGeber_w_en.fh7
Fastening screw
Connector housing
Connector with coupling ring
Fig. 15-5: Angular connector (encoder unit)
Note: In case of applications with high vibration and shock loads,
the angular connector must be secured against loosening by
means of screw locking adhesive.
Changing the output direction
on MKD112
