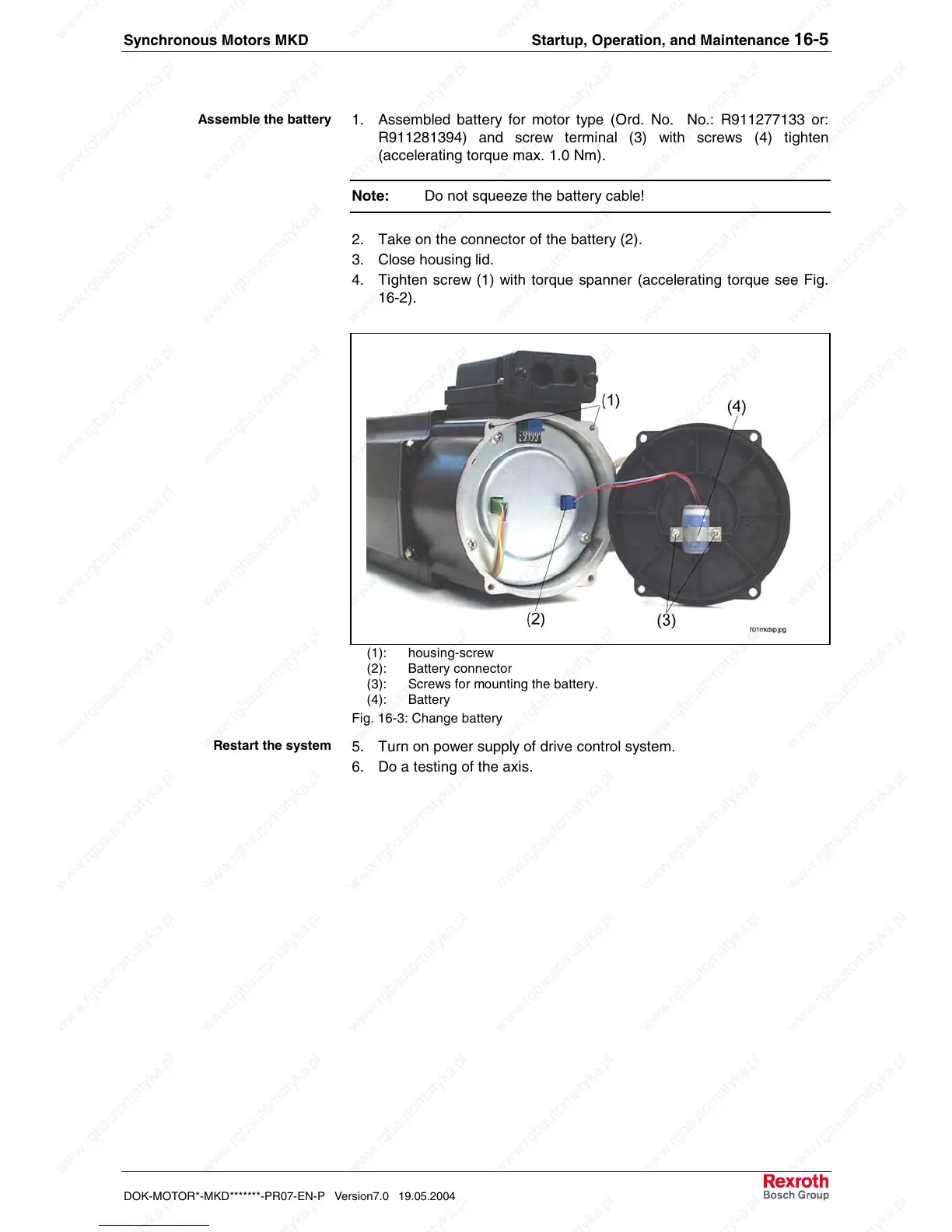

Synchronous Motors MKD Startup, Operation, and Maintenance 16-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
1. Assembled battery for motor type (Ord. No. No.: R911277133 or:
R911281394) and screw terminal (3) with screws (4) tighten
(accelerating torque max. 1.0 Nm).
Note: Do not squeeze the battery cable!
2. Take on the connector of the battery (2).
3. Close housing lid.
4. Tighten screw (1) with torque spanner (accelerating torque see Fig.
16-2).
(1): housing-screw
(2): Battery connector
(3): Screws for mounting the battery.
(4): Battery
Fig. 16-3: Change battery
5. Turn on power supply of drive control system.
6. Do a testing of the axis.
Assemble the battery
Restart the system
