Reznor RG Series User Manual

6
I-RX-RG-RPV (09-19) PN1027501R0
GENERAL INFORMATION—CONTINUED
Dimensions—Continued

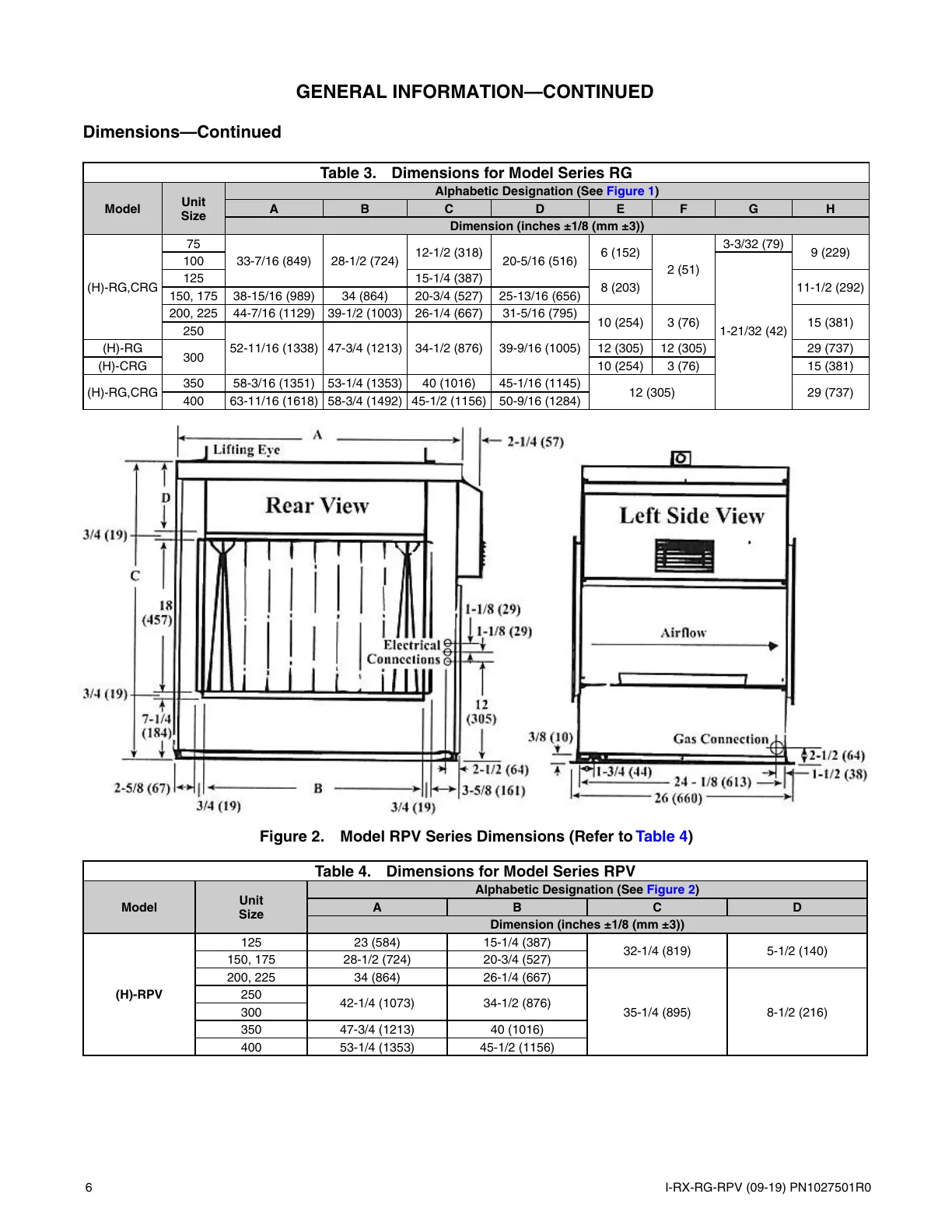

Figure 2. Model RPV Series Dimensions (Refer to Table 4)
Table 3. Dimensions for Model Series RG
Model
Unit
Size
Alphabetic Designation (See Figure 1)
A B C D E F G H
Dimension (inches ±1/8 (mm ±3))
(H)-RG,CRG
75
33-7/16 (849) 28-1/2 (724)
12-1/2 (318)
20-5/16 (516)
6 (152)
2 (51)
3-3/32 (79)
9 (229)
100
1-21/32 (42)
125 15-1/4 (387)
8 (203) 11-1/2 (292)
150, 175 38-15/16 (989) 34 (864) 20-3/4 (527) 25-13/16 (656)
200, 225 44-7/16 (1129) 39-1/2 (1003) 26-1/4 (667) 31-5/16 (795)
10 (254) 3 (76) 15 (381)
250
52-11/16 (1338) 47-3/4 (1213) 34-1/2 (876) 39-9/16 (1005)(H)-RG
300
12 (305) 12 (305) 29 (737)
(H)-CRG 10 (254) 3 (76) 15 (381)
(H)-RG,CRG
350 58-3/16 (1351) 53-1/4 (1353) 40 (1016) 45-1/16 (1145)
12 (305) 29 (737)
400 63-11/16 (1618) 58-3/4 (1492) 45-1/2 (1156) 50-9/16 (1284)
Table 4. Dimensions for Model Series RPV
Model
Unit
Size
Alphabetic Designation (See Figure 2)
A B C D
Dimension (inches ±1/8 (mm ±3))
(H)-RPV
125 23 (584) 15-1/4 (387)
32-1/4 (819) 5-1/2 (140)
150, 175 28-1/2 (724) 20-3/4 (527)
200, 225 34 (864) 26-1/4 (667)
35-1/4 (895) 8-1/2 (216)
250
42-1/4 (1073) 34-1/2 (876)
300
350 47-3/4 (1213) 40 (1016)
400 53-1/4 (1353) 45-1/2 (1156)
