7
I-RX-RG-RPV (09-19) PN1027501R0

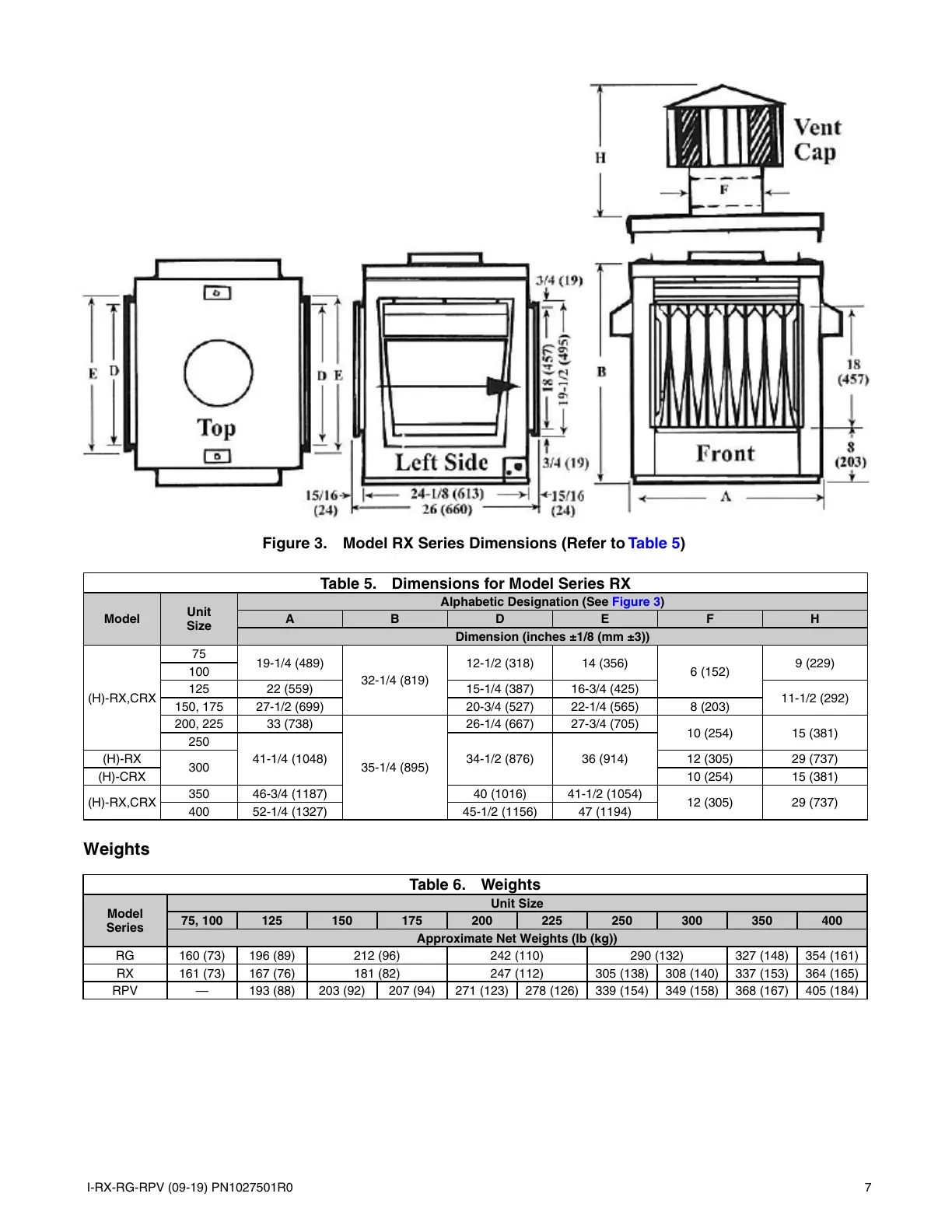

Figure 3. Model RX Series Dimensions (Refer to Table 5)
Table 5. Dimensions for Model Series RX
Model
Unit
Size
Alphabetic Designation (See Figure 3)
A B D E F H
Dimension (inches ±1/8 (mm ±3))
(H)-RX,CRX
75
19-1/4 (489)
32-1/4 (819)
12-1/2 (318) 14 (356)
6 (152)
9 (229)
100
125 22 (559) 15-1/4 (387) 16-3/4 (425)
11-1/2 (292)
150, 175 27-1/2 (699) 20-3/4 (527) 22-1/4 (565) 8 (203)
200, 225 33 (738)
35-1/4 (895)
26-1/4 (667) 27-3/4 (705)
10 (254) 15 (381)
250
41-1/4 (1048) 34-1/2 (876) 36 (914)(H)-RX
300
12 (305) 29 (737)
(H)-CRX 10 (254) 15 (381)
(H)-RX,CRX
350 46-3/4 (1187) 40 (1016) 41-1/2 (1054)
12 (305) 29 (737)
400 52-1/4 (1327) 45-1/2 (1156) 47 (1194)
Weights
Table 6. Weights
Model
Series
Unit Size
75, 100 125 150 175 200 225 250 300 350 400
Approximate Net Weights (lb (kg))
RG 160 (73) 196 (89) 212 (96) 242 (110) 290 (132) 327 (148) 354 (161)
RX 161 (73) 167 (76) 181 (82) 247 (112) 305 (138) 308 (140) 337 (153) 364 (165)
RPV 193 (88) 203 (92) 207 (94) 271 (123) 278 (126) 339 (154) 349 (158) 368 (167) 405 (184)
