Reznor UBX User Manual

9
UEZ-IOM (07-23) 1034347-I

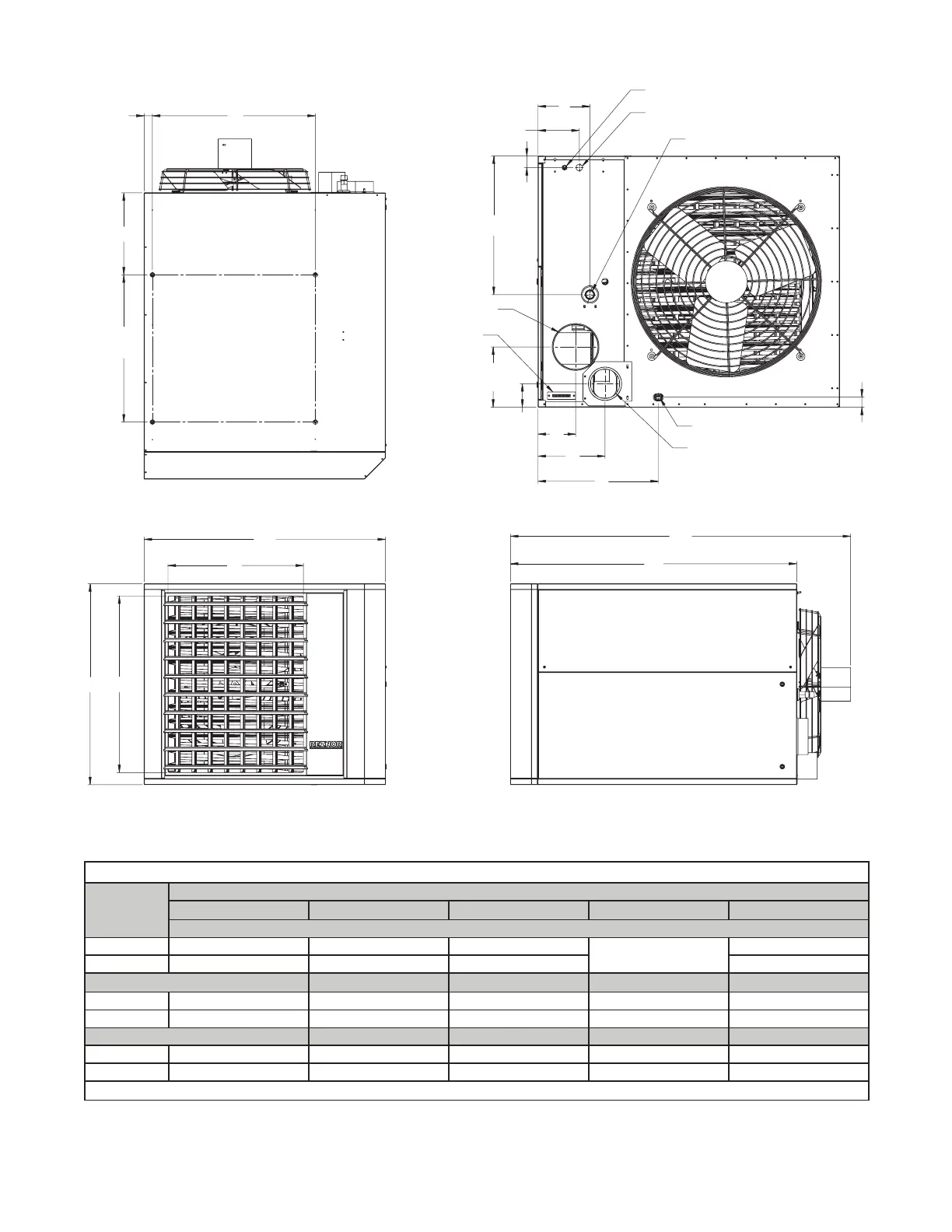

Figure 3. Dimensions—Unit Sizes 130–310 (Refer to Table 6)
C
B
FRONT VIEW
E
F G
TOP VIEW
J
H
RIGHT SIDE VIEW
R
P
N
M
K
S
REAR VIEW
LINE VOLTAGE ENTRANCE
GAS CONNECTION
COMBUSTION
AIR INLET
CONDENSATE DRAIN
VENT CONNECTION
THERMOSTAT
CONNECTION
A
DISCONNECT SWITCH
D
8-3/16
(208)
3-3/16
(81)
5-5/8 (143)
1-9/16
(40)
25
(635)
Table 6. Dimensions (Unit Sizes 130–310)
Unit
Size
Dimension (See Figure 3)
A B C D
E*
Inches (mm)
130, 180 20-1/8 (511) 39-3/16 (995) 16-1/16 (408)
23 (584)
11-31/32 (304)
260, 310 34-1/8 (867) 41 (1041) 30 (762) 13-31/32 (355)
F* G*
H J K
130, 180 2-3/8 (60) 25-11/16 (652) 55-13/32 (1407) 46-1/32 (1169) 15-19/32 (396)
260, 310 1-13/32 (36) 27-11/16 (703) 58 (1473) 48-21/32 (1236) 16-15/32 (418)
M N P R S
130, 180 8-5/16 (211) 4-5/16 (110) 5-1/16 (129) 6-9/32 (160) 1-3/4 (45)
260, 310 9-3/32 (231) 5-3/32 (129) 18-13/16 (478) 7-1/32 (179) 1-3/8 (35)
*Heater suspension points (3/8-16 FEM).
