I-UBX-UBZ-UDX-UDZ (03-21) 1034344-0

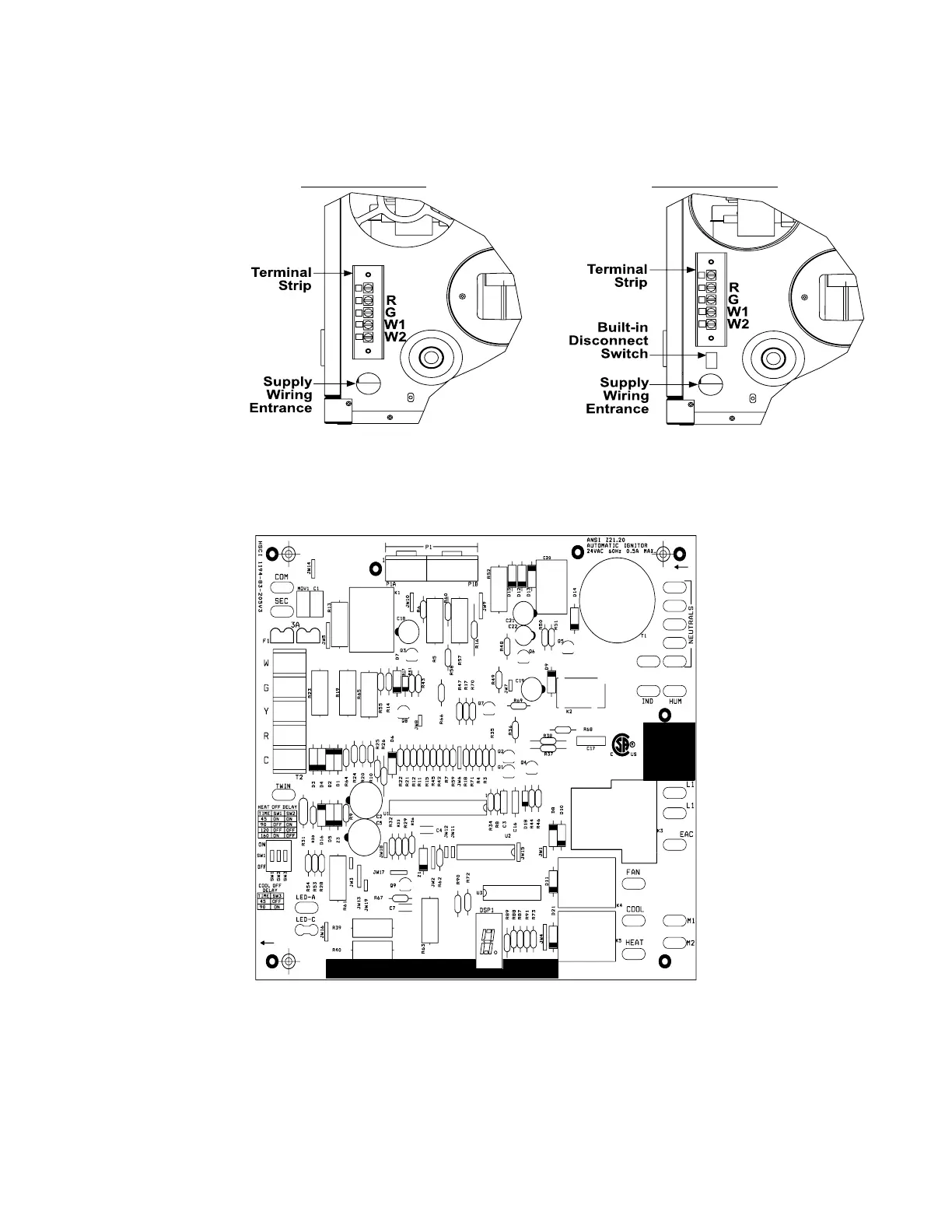

Figure 10. Supply Wiring Entrance and Control Connection Terminal Strip

• The circuit board (see Figure 11) is located inside on the bottom of the control compartment. The circuit board is

polarity sensitive. It is advisable to check the electrical supply ensure that the black wire is the hot wire and that

the white wire is the neutral wire. The hot wire must be connected to terminal L1 on the circuit board.

Rear View Separated

Combustion Model

Rear View Standard

Power Vent Model

NOTE: The size of

heater illustrated

has a vertical

terminal strip.

Some sizes have

a horizontal

terminal strip.

Figure 11. Circuit Board (DSI Control Module)

INSTALLATION—CONTINUED

Electrical Connections—Continued
