Form I-UDA, P/N 195673 R24, Page 9

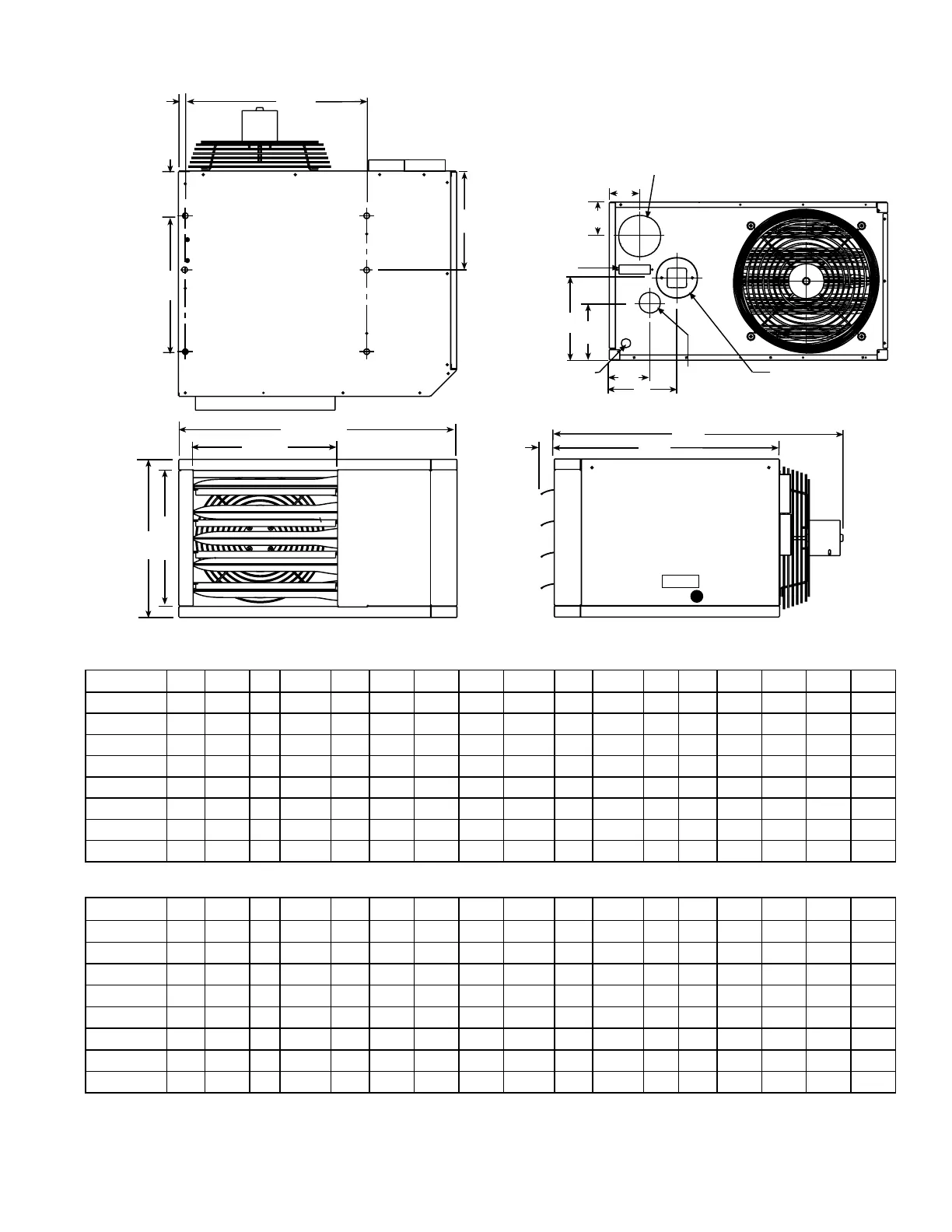

FIGURE 5 - Model UDAS, Separated Combustion Fan Model
Model UDAS Dimensions (inches ± 1/16)
Size
A B C D E F G H J K M N P Q R S T
30, 45
12-1/8 26-5/8 10 13-13/16 26 21-9/16 5-3/16 6-1/2 2-11/16 3-7/8 17-3/8 11/16 4-5/16 13 9-9/16 2-15/16 2-15/16
60
15-1/8 26-5/8 13 13-13/16 27 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 3-1/4 2-15/16
75
15-1/8 26-5/8 13 13-13/16 27-5/8 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 3-1/4 2-15/16
100
23-1/8 26-5/8 21 13-13/16 28-5/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 4-5/8 2-15/16
125
23-1/8 26-5/8 21 13-13/16 29-3/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2 4-5/8 2-15/16
150, 175, 200
20-1/8 38-3/16 16 23 42 35-3/8 8-1/2 8-1/4 5-7/16 6-1/2 25-11/16 1-3/8 8-3/16 22-3/16 16-3/8 4-1/8 8-5/16
225, 250
26-1/8 38-3/16 22 23 42 35-3/8 13-1/16 8-13/16 9 6-1/2 25-11/16 1-3/8 8-3/16 22-3/16 15-5/8 5-9/16 8-5/16
300, 350, 400
34-1/8 41 30 23 42 35-3/8 17-1/16 9 11-13/16 7-5/16 27-11/16 1-3/8 8-3/16 22-3/16 16-3/16 9-1/16 8-9/16
Model UDAS Dimensions (mm ± 2)
Size A B C D E F G H J K M N P Q R S T
30, 45
308 676 254 351 660 548 132 165 68 98 441 17 110 330 243 75 75
60
384 676 330 351 686 548 200 165 140 98 441 17 110 330 267 89 75
75
384 676 330 351 702 548 200 165 140 98 441 17 110 330 267 89 75
100
587 676 533 351 727 548 368 165 222 98 441 17 110 330 267 117 75
125
587 676 533 351 746 548 368 165 222 98 441 17 110 330 267 117 75
150, 175, 200
511 970 406 584 1067 899 216 210 138 165 652 35 208 564 416 105 211
225, 250
664 970 559 584 1067 899 332 224 229 165 652 35 208 564 397 141 211
300, 350, 400
867 1041 762 584 1067 899 433 229 300 186 703 35 208 564 411 230 217
