Form I-UDA, P/N 195673 R24, Page 8

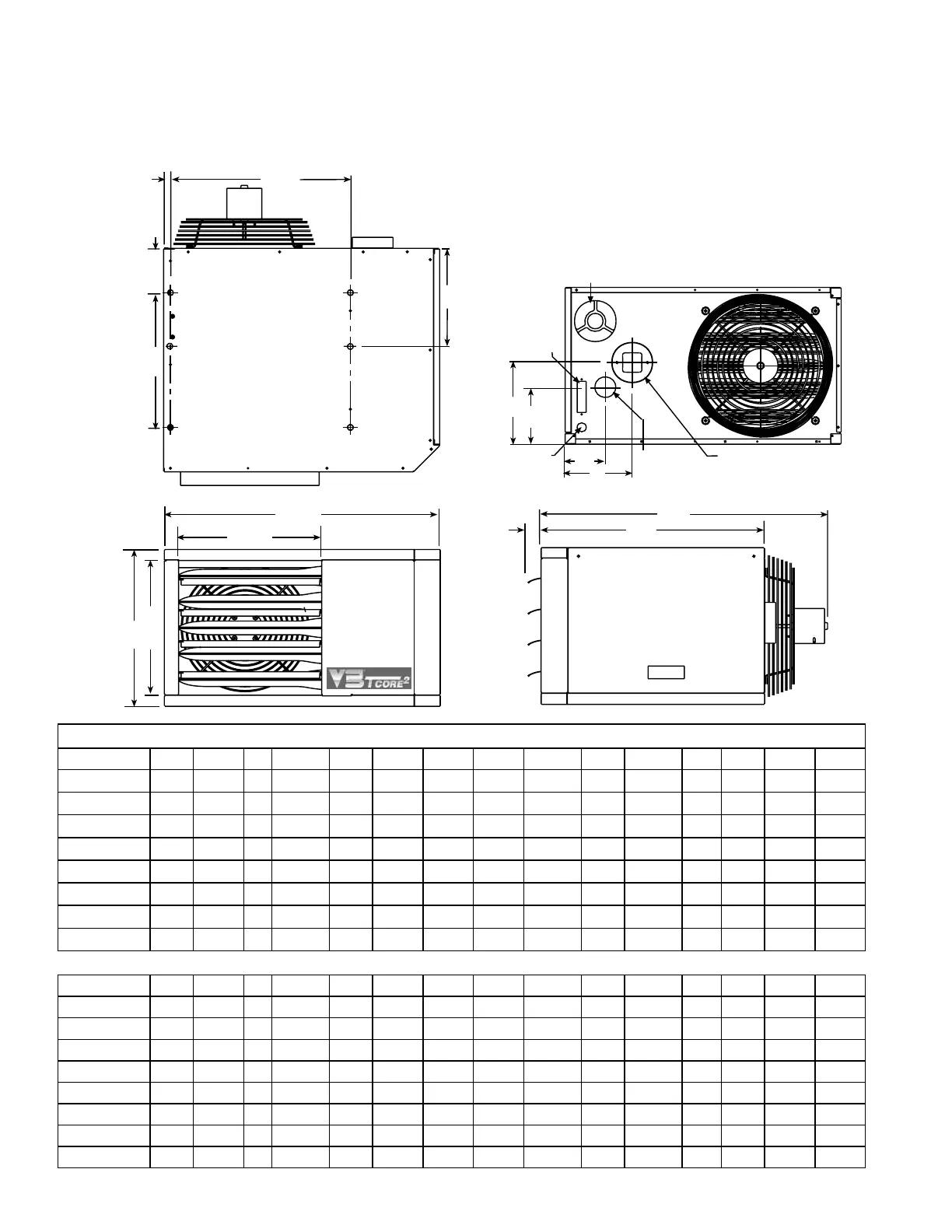

FIGURE 4 - Model UDAP, Power Vented Fan Model
Model UDAP Dimensions (inches ± 1/16)
Size
A B C D E F G H J K M N P Q R
30, 45
12-1/8 26-5/8 10 13-13/16 26 21-9/16 5-3/16 6-1/2 2-11/16 3-7/8 17-3/8 11/16 4-5/16 13 9-9/16
60
15-1/8 26-5/8 13 13-13/16 27 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2
75
15-1/8 26-5/8 13 13-13/16 27-5/8 21-9/16 7-7/8 6-1/2 5-1/2 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2
100
23-1/8 26-5/8 21 13-13/16 28-5/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2
125
23-1/8 26-5/8 21 13-13/16 29-3/8 21-9/16 14-1/2 6-1/2 8-3/4 3-7/8 17-3/8 11/16 4-5/16 13 10-1/2
150, 175, 200
20-1/8 38-3/16 16 23 42 35-3/8 8-1/2 8-1/4 5-7/16 6-1/2 25-11/16 1-3/8 8-3/16 22-3/16 16-3/8
225, 250
26-1/8 38-3/16 22 23 42 35-3/8 13-1/16 8-13/16 9 6-1/2 25-11/16 1-3/8 8-3/16 22-3/16 15-5/8
300, 350, 400
34-1/8 41 30 23 42 35-3/8 17-1/16 9 11-13/16 7-5/16 27-11/16 1-3/8 8-3/16 22-3/16 16-3/16
Model UDAP Dimensions (mm ± 2)
Size A B C D E F G H J K M N P Q R
30, 45 308 676 254 351 660 548 132 165 68 98 441 17 110 330 243
60 384 676 330 351 686 548 200 165 140 98 441 17 110 330 267
75 384 676 330 351 702 548 200 165 140 98 441 17 110 330 267
100 587 676 533 351 727 548 368 165 222 98 441 17 110 330 267
125 587 676 533 351 746 548 368 165 222 98 441 17 110 330 267
150, 175, 200 511 970 406 584 1067 899 216 210 138 165 652 35 208 564 416
225, 250 664 970 559 584 1067 899 332 224 229 165 652 35 208 564 397
300, 350, 400 867 1041 762 584 1067 899 433 229 300 186 703 35 208 564 411
4.0 Clearances and Dimensions (cont’d)
4.2 Dimensions
