Form O-Y, PN 273647R5, Page 6

3.0 Maintenance

and Service

Procedures -

Unit & Cooling

Components

3.1 Filters

6\VWHPVZLWKGLVSRVDEOH¿OWHUVUHTXLUHPRUHIUHTXHQW¿OWHULQVSHFWLRQ([SRVXUHWR

KXPLGPDNHXSDLUFDQDFFHOHUDWH¿OWHUGHJUDGDWLRQ5HSODFH¿OWHUVZKHQQHHGHG

XVLQJWKHVDPHW\SHRI¿OWHUVDVWKHRULJLQDO

Supply Air Filters7KHVXSSO\DLU¿OWHUVDUHLQFKSOHDWHGGLVSRVDEOH¿OWHUV

5HSODFHPHQW¿OWHUVDUHOLVWHGLQWKHWDEOHEHORZ'RQRWXVHDQ\RWKHUW\SHRI¿OWHUV

Replacement Filters by Model Size and Cabinet Size

4" Disposable

Pleated

MERV 8 MERV 13

Cabinet Size Model(s) Model Sizes Qty Size P/N P/N

YDHA & YDMA

060 1 16 x 25 211128 256666

090, 120, 150 2 20 x 24 222480 260828

YDHA & YDMA 180, 210, 240 4 16 x 25 211128 256666

YDSA 120, 150 4 16 x 25 211128 256666

YDHA & YDMA 300 & 360

4 25 x 29 235757 235758

YDSA 180 & 210

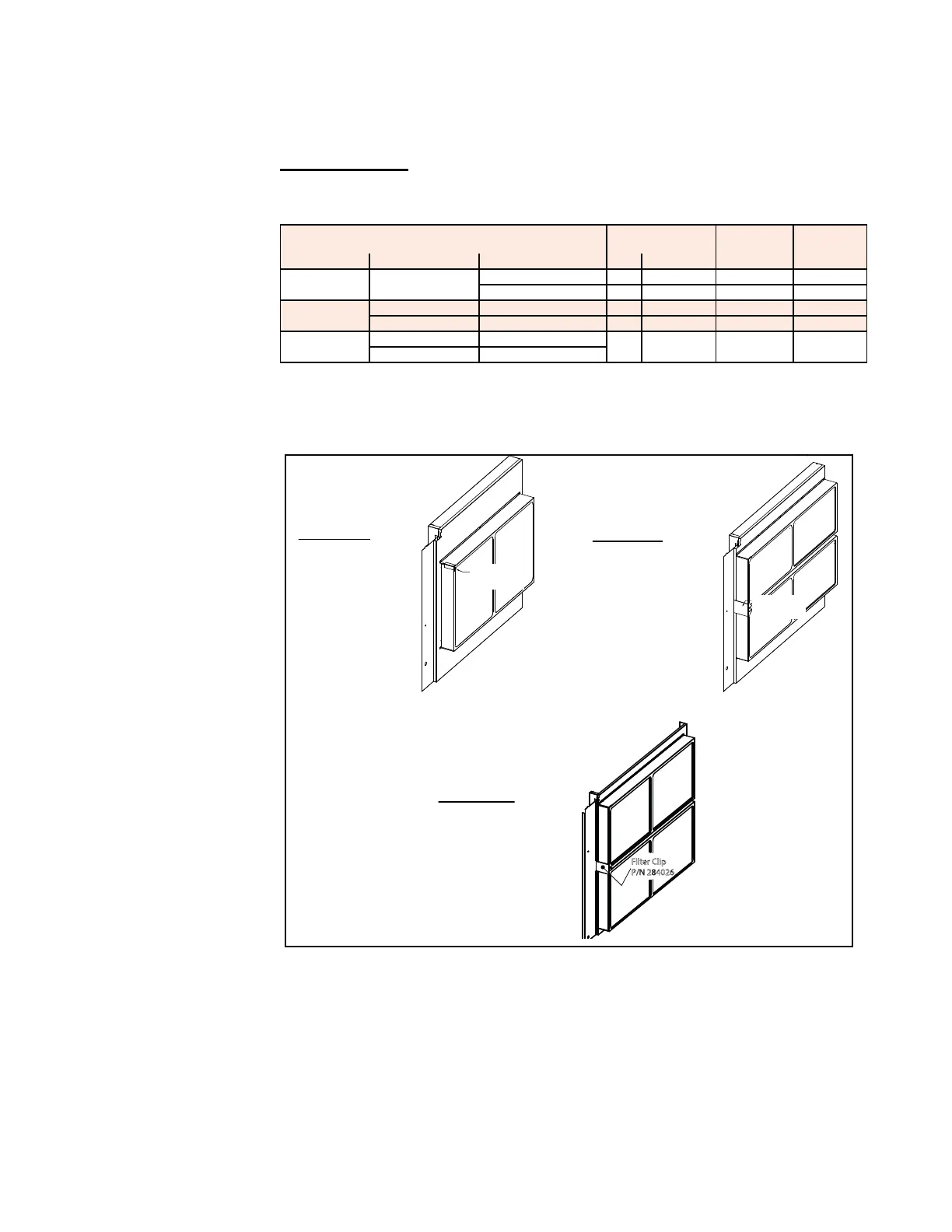

FIGURE 2 - Installing

Replacement Supply

Air Filters

7RDFFHVVVXSSO\DLU¿OWHUVRSHQWKHFRROLQJFRLO¿OWHUGRRU)ROORZWKHLQVWUXFWLRQV

that apply.

Instructions:

1) Slide filter clip tab

from the slot in

the filter support.

Rotate clip slightly

and remove filter

clip.

2) Slide filters out.

3) Install new filters.

4) Replace filter clip.

Filter

Filter Clip,

P/N 272707

Cabinet Size 2

(see table above)

Cabinet Size 3

(see table above)

Instructions:

1) Slide filter clip tab

from the slot in the

filter support.

Rotate the clip slightly

and remove filter clip.

2) Slide filters out.

3) Install new filters.

4) Replace filter clip.

Filter

Filter Clip

P/N 284026

Filter

Instructions:

1) Slide filter clip

left and remove.

2) Slide filters out.

3) Install new filters.

4) Replace filter clip.

Cabinet Size 0

(see table above)

Filter Clip,

P/N 272222
