Receiver Configuration

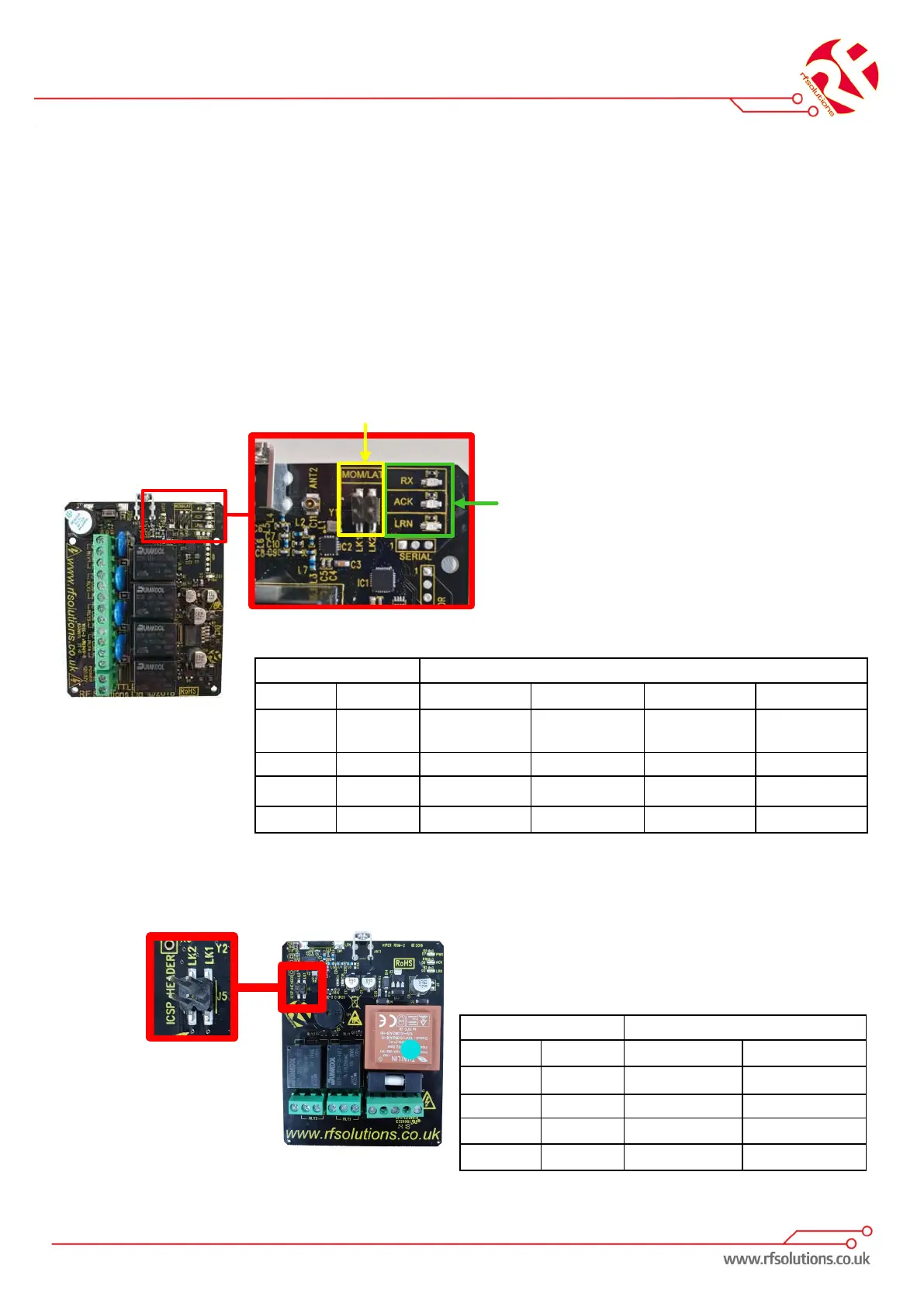

The link pins LK1 and LK2 set the action of the relays
1
/
2
sec Mom = Relay will operate for
1
/
2
sec
Mom = Relay will operate for as long as transmitter switch operated
Latch = Relay will toggle ON/OFF on each transmitter button press
Link Positions Switch relays
LK1 LK2 RLY 1 RLY 2 RLY 3 RLY 4
Open Open
1
/
2
sec
Mom
1
/
2
sec
Mom
1
/
2
sec
Mom
1
/
2
sec
Mom
Closed Open Mom Mom Latch Latch
Open Closed Mom Mom Mom Mom
Closed Closed Latch Latch Latch Latch
Link Pins
LK1
LK2
Link Positions Switch relays
LK1 LK2 RLY 1 RLY 2
Open Open
1
/
2
sec Mom
1
/
2
sec Mom
Closed Open Mom Mom
Open Closed Latch Mom
Closed Closed Latch Latch
230Vac Version
Link Cap is placed
Vertically
LK1 LK2
Link Pins
LED s
RF Receive
RF Transmit
LEARN
1
2
3
4
12-30V Version
