RF SOLUTIONS TRAP Series User Manual

TRAP Remote Controls
DS-TRAP-10 Page 8

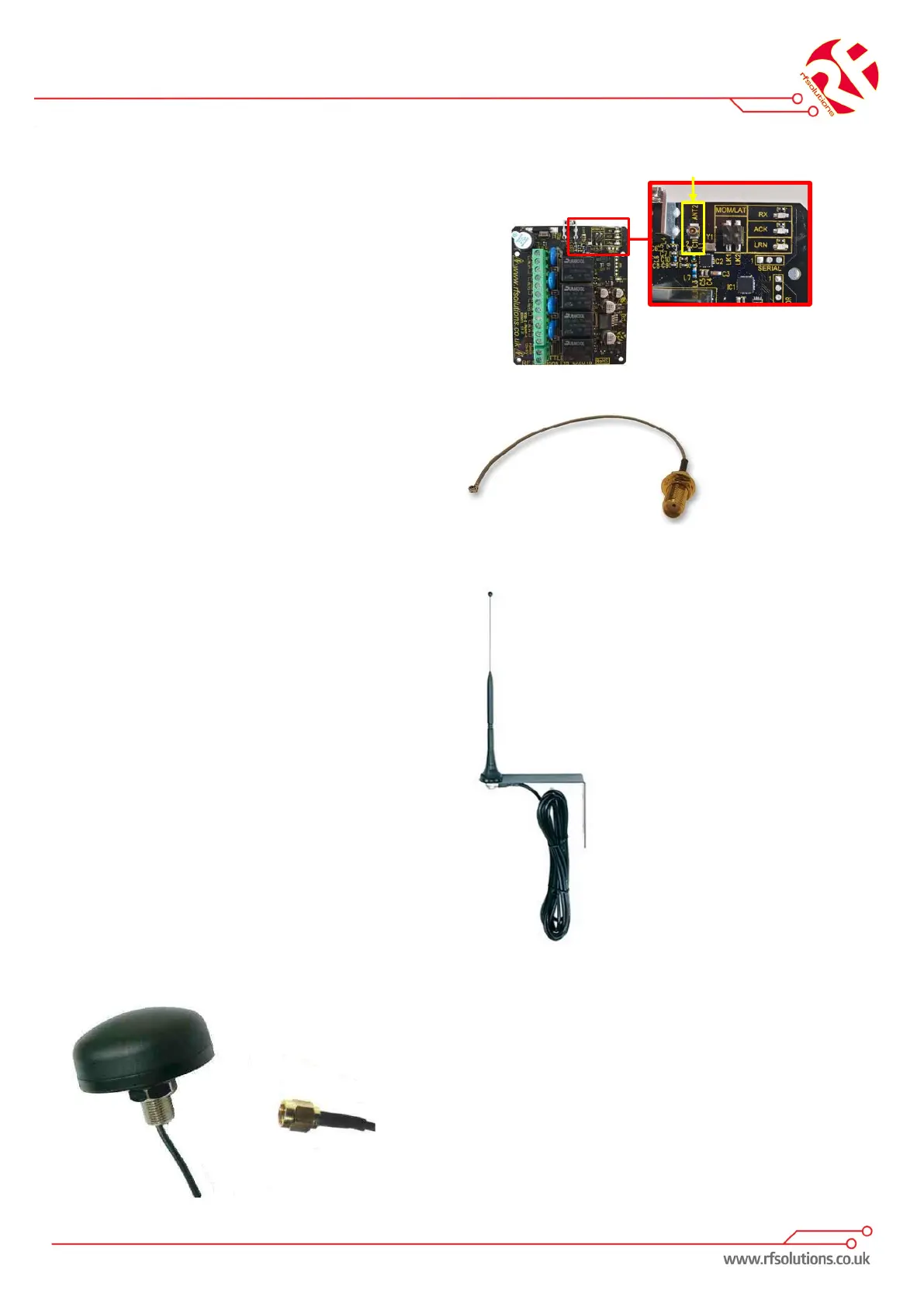

Connecting an External Antenna
An External Antenna maybe connected into
connector ANT2. A direct plug in coax Cable is
available to convert this to Standard SMA type
connector
Antenna : ANT-GSM5WM
• Wall mount antenna
• 3m cable
• Wall Mount Whip Antenna
• Active gain: +5dB
• RG58 Connecting Lead
• SMA Connector
CBA-UFLSMA
Push fits onto the External antenna Connector and
provides a panel mount SMA connector which ena-
ble many types of antenna to be connected.
Antenna : ANT-PUKDB
• Rugged “PUCK” Screw Fix Mount
• +2dBi Gain
• Omni directional Antenna
• 1.5metres RG174 Cable
• SMA Male Connector
• M14 Screw Fix connector
External Antenna
Connector (ANT2)
