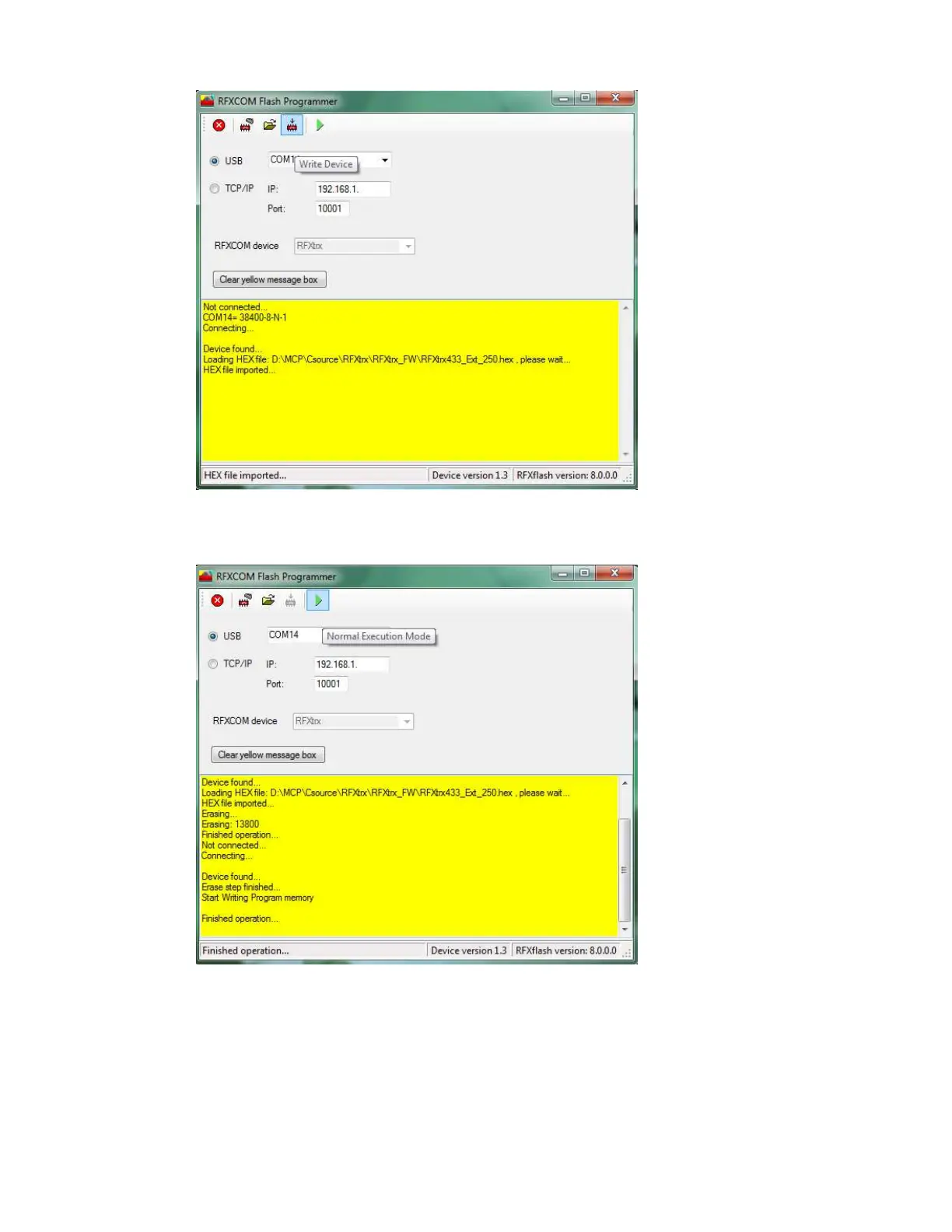

• Click the Write device button and the RFXtrx is flashed.

• Click on the Normal Execution Mode button to set the RFXtrx to running mode.

Note: Receiver Settings are lost in Type1 and Type2 firmware after a firmware update and must

be set again.
