RH KING - Attach Side Rails to Headboard; Attach Support Legs to Slat Supports

Kempton Platform - Page
2 of 3
10/1/18

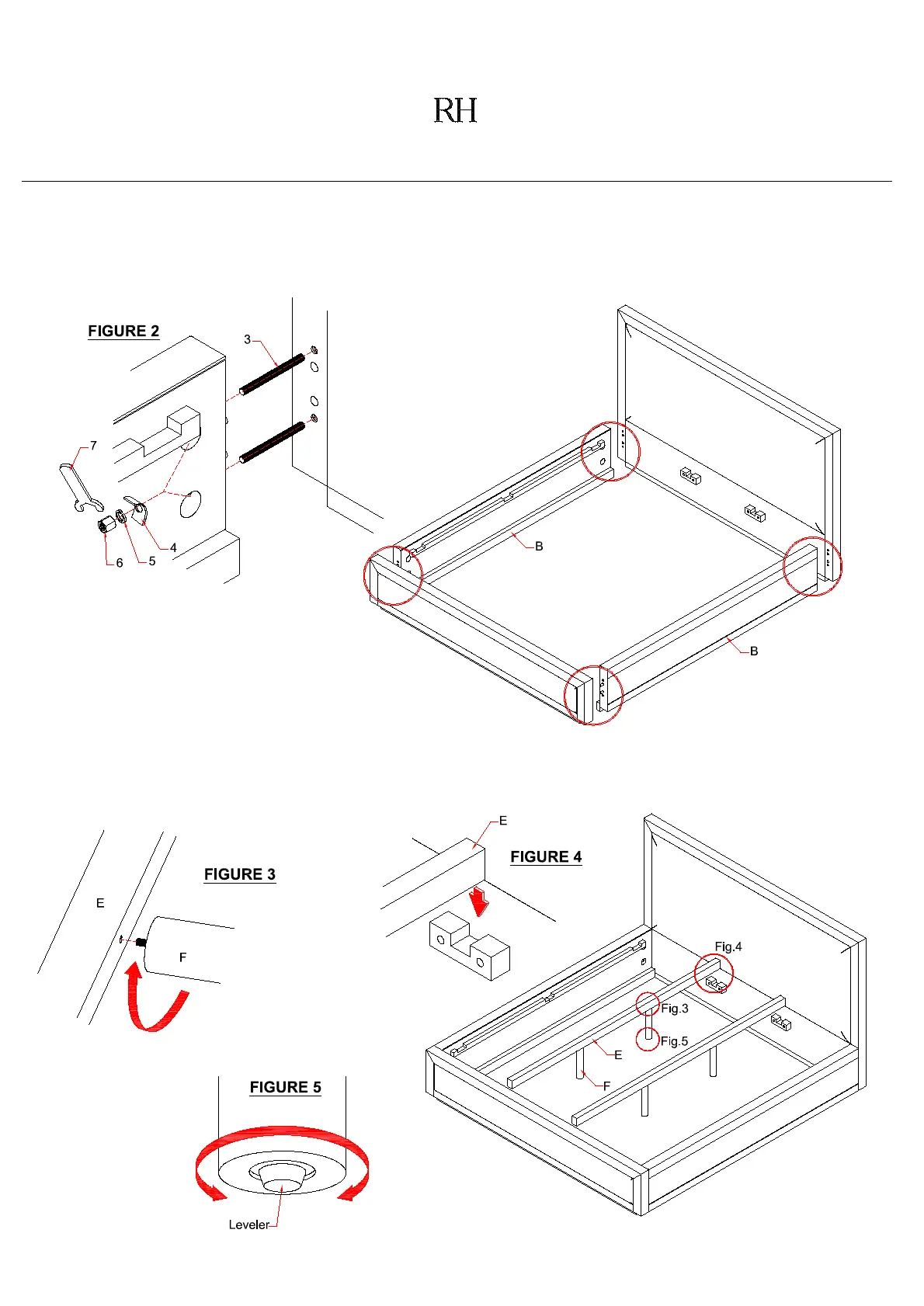

Place the headboard upright in the location you wish the bed to be in when fully assembled. Secure the Threaded Rod (3) to the
fixed nut in the headboard by simply turning it manually. Raise the Side Rail (B) up and place the rod to align with the bore holes
on the end of the side rails. Put the side rail up against the headboard so the threaded rods go through the bore holes. Insert
Curved Washer (4) and Lock Washer (5), place Hex Nuts (6) on threaded rod and tighten hex nuts with Wrench (7). See FIGURE 2
Repeat the above procedure with the other side rail to attach it to the headboard. And then repear to connect both side rails to the
footboard.
Attach the Support Leg (F) to the Slat Support (E) by turning it manually. See FIGURE 3
There are pre-installed wooden brackets on inside of both headboard and footboard for the slat support rail. Set the slat support
on the wood brackets as shown in FIGURE 4. If necessary, adjust the leveler on botom of the support leg to make sure the slat
support is level. See FIGURE 5
5.
6.
3.
4.
KEMPTON UPHOLSTERED PLATFORM KING AND CAL KING BED INSTRUCTIONS
