INSTALLATION
37

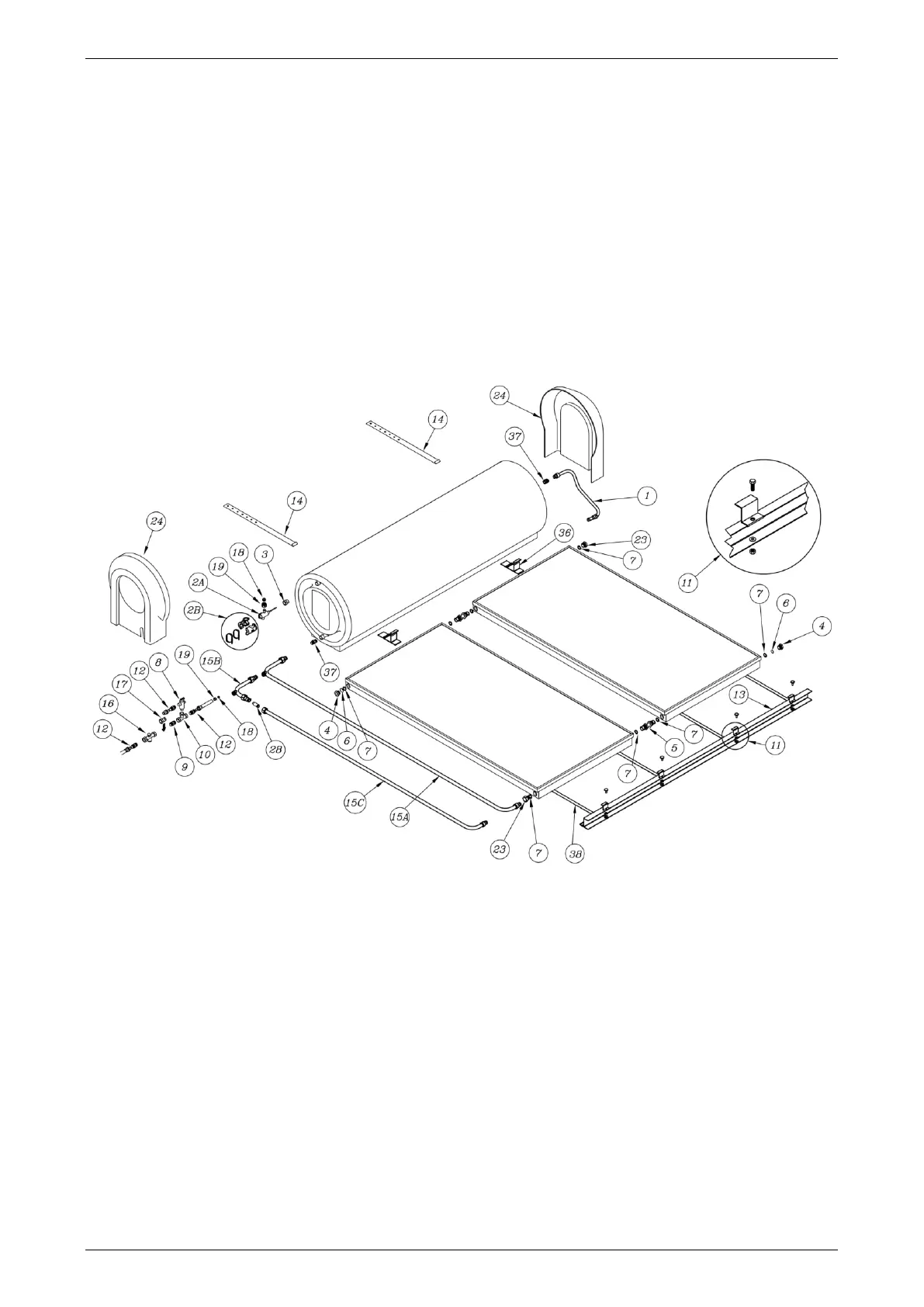

ASSEMBLY DIAGRAM – 52L SERIES – SCREWED FITTING NPT200, L COLLECTORS
Components
1. Solar Hot Pipe
2. A - TPR Valve HTT55-1 – 850 kPa
2. B - Insulation kit TPRV
3. Bush Reducing R ¾ M x Rp ½ F
4. M33 Gland Nut
5. Collector Union – screwed fittings
6. Copper Blanking Disk
7. O-ring 25 ID x 3.2 mm
8. ECV H50 – 700 kPa
9. Brass Nipple R1/2M x R1/2M **
10. Brass Tee G1/2M x G1/2M x
G1/2M **
11. Collector Clamp & Fasteners
12. Union R1/2M x G1/2M Olive **
13. Collector Rail
14. Tank Strap
15. A - Solar Cold Pipe
15. B – Solar Cold Pipe Upper
with TRV
15. C – Solar Cold Pipe Lower
with TRV
16. Combination Isolation,
Strainer & Non-Return
Valve **
17. PLV 500 kPa*
18. Olive Compression 1/2"
19. Nut Compression G1/2"
23. Adaptor Union M33 M x G
3/4 F Conetite
24. Plastic End Cover (pr) ***
28. Thermosiphon Restrictor
Valve (TRV) - conetite
36. Tank to Collector Spacer
37. Union R 3/4 M x G 3/4 M
Conetite
38. Collector Strap
* if required – not supplied
** required – not supplied
*** optional
Refer to “System Components and Kit Contents – 52L180, 2L300 Systems – NPT200 and L Collectors with
Screwed Fittings” on page 43 for the list of components supplied in the parts kits for the systems below.
12105500 52L180 tank with one NPT200 or L solar collector – without TRV
12105501 52L180 tank with one NPT200 or L solar collector – with TRV
12105502 52L300 tank with two NPT200 or L solar collectors – without TRV
12105503 52L300 tank with two NPT200 or L solar collectors – with TRV
Refer to the installation instructions supplied with the installation parts kits below for the list of components
supplied in the parts kits, an exploded view assembly diagram and assembly instructions.
For Australian and non-Australian markets
12103101 52L180 tank with one CSA2007 Envelope solar collector – with TRV
12103103 52L300 tank with two CSA2007 Envelope solar collectors – with TRV
For non-Australian markets
12103120 52L180 tank with one CSA2007 Envelope solar collector – without TRV
12103121 52L300 tank with two CSA2007 Envelope solar collectors – without TRV
