Rheem 70103 - Exploded View 2: 702 Series Commercial Model 7.5 - 40 Litre

56
TM063 701, 702 & 703 Series Boiling Water Unit Service Instructions
Revision D: Feb 2017
This document is stored and maintained electronically by Service. All printed copies not bearing this statement in RED are deemed “uncontrolled”

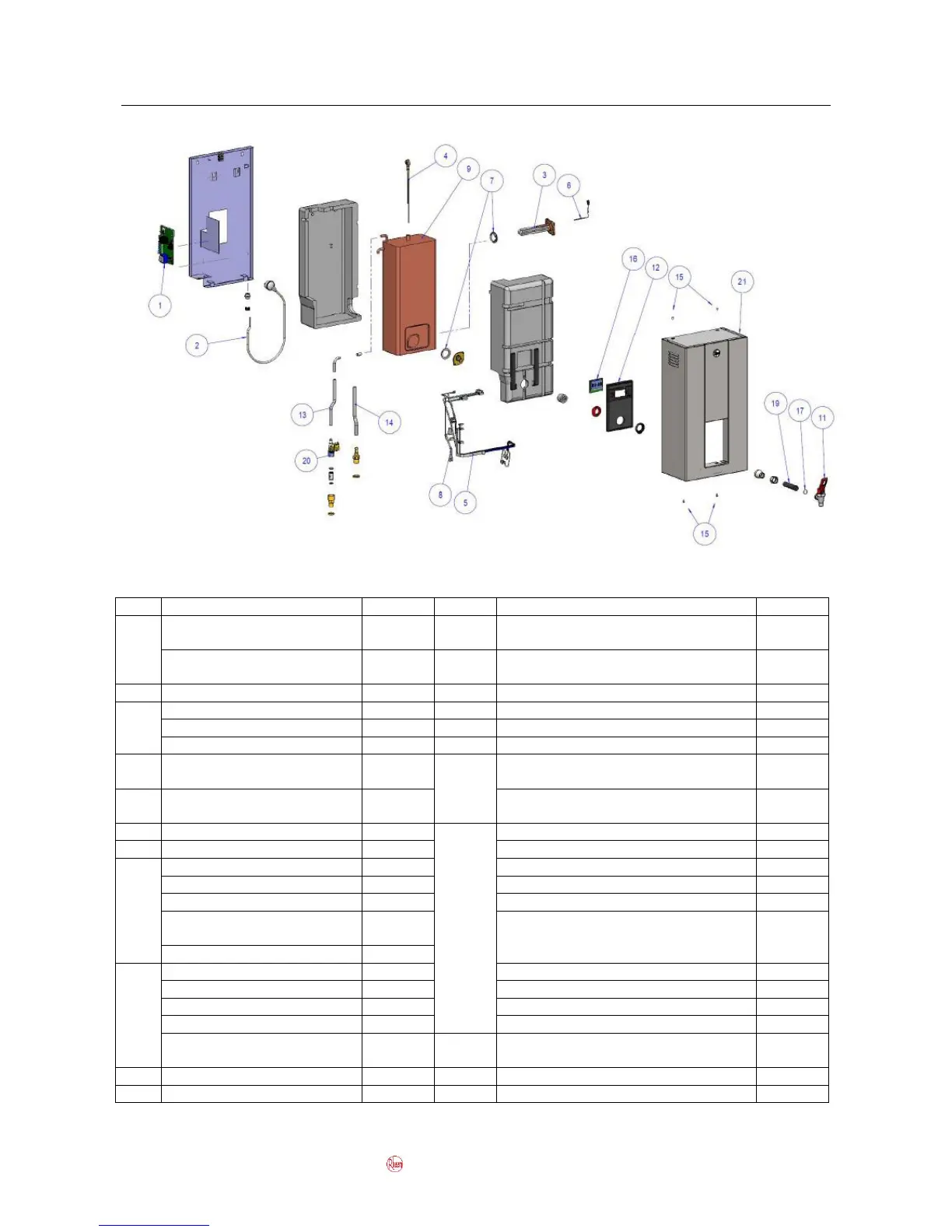

Exploded view 2: 702 series Commercial model 7.5 - 40 litre
Item
Description
Part Nº
Item
Description
Part Nº
1
Controller & Heatsink 7.5L -
15L
317159
13
Tube 8mm Silicone Kit (1.4m)
316264
Controller & Heatsink 25L &
40L
317190
14
Tube 13mm Silicone Kit
vent (1.0m)
319027
2
Cord set 7.5L - 15L
315880
15
Jacket fixing screws x 4
315994
3
Element 2.4kW 7.5L - 15L
315881
16
Electronic Timer
316963
Element 3.6kW 25L
319007
17
O-Ring Tap (114)
310497
Element 4.6kW 40L
315884
19
Tap Extension
317821
4
Probe Assy Hi/Lo
312029
20
Valve Solenoid Assy 7.5L – 10L
models 240V 0.5l/min
318261
5
Ribbon Connector Timer
316955
Valve Solenoid Assy 15L – 40L
Models 240V 2.5l/min
318262
6
Thermistor Short 150mm
310537
21
Jacket 7.5L White
319016
7
Gasket Silicone (Pack 5)
012142
Jacket 10L White
319017
8
Loom Wiring 7.5L
318123
Jacket 15L White
319018
Loom Wiring 10L
318124
Jacket 25L White
319019
Loom Wiring 15L
318123
Jacket 40L White
319020
Loom Wiring 25 & 40L
(Manuf. prior to Mar 2017)
318125
Jacket 7.5L Stainless Steel
319021
Loom Wiring 25 & 40L
320009
9
Tank 7.5L
318029
Jacket 10L Stainless Steel
319022
Tank 10L
318030
Jacket 15L Stainless Steel
319023
Tank 15L
318031
Jacket 25L Stainless Steel
319024
Tank 25L
318032
Jacket 40L Stainless Steel
319025
Tank 40L
318033
n/s
E.C.O. 25L & 40L (Only applicable if
Manuf. post Mar 2017)
319070
11
Tap assembly
317804
n/s
Seal Tap
310556
12
Fascia Panel (incl spring)
319015
n/s
Heat Sink Compound (10g Tube)
317696
