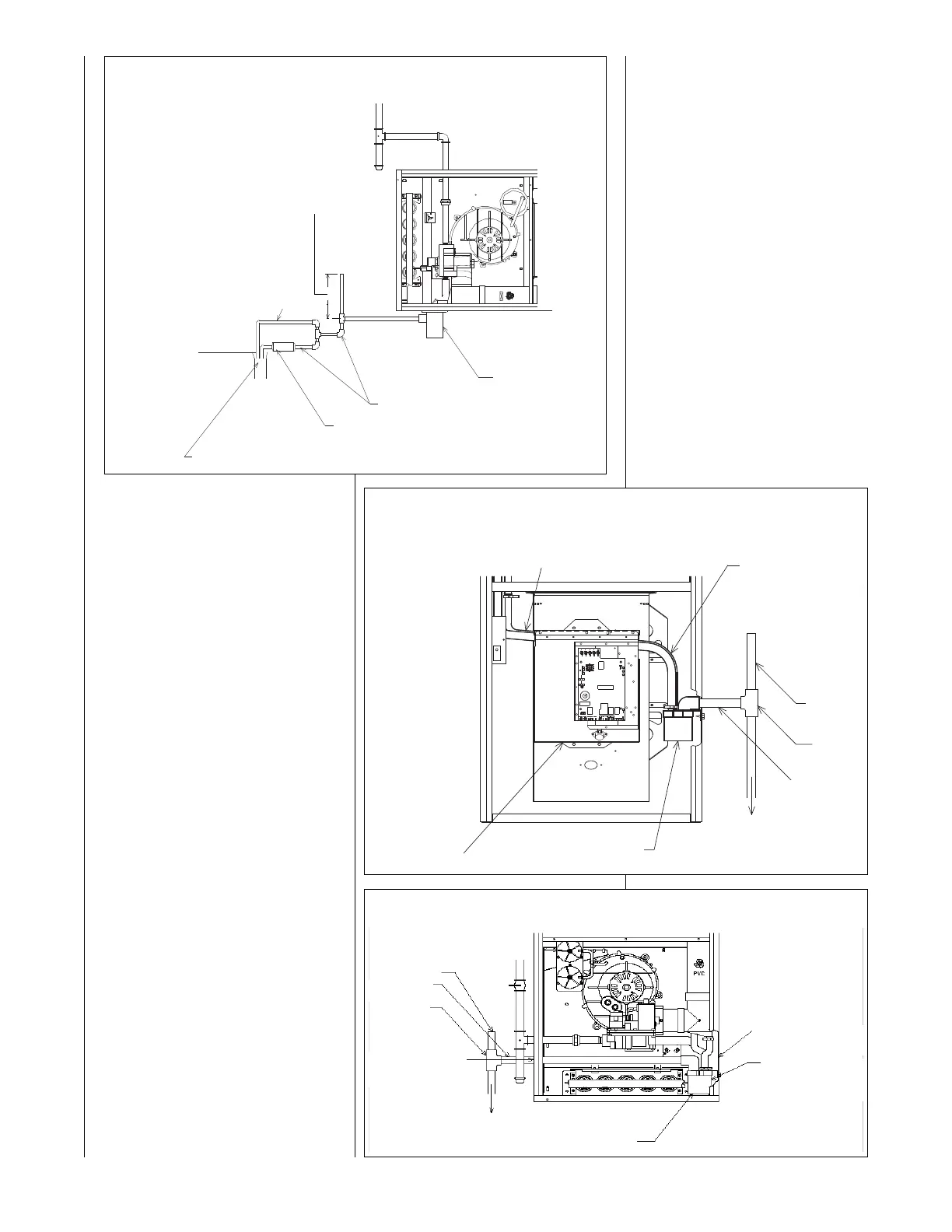

FIGURE 33
UPFLOW OPPOSITE SIDE CONDENSATE TRAP CONNECTION
REVERSING THE TRAP
UPFLOW UNITS
The trap may be moved to the right
side for right side drainage. Open the
knockout for the drain on the right
side of the cabinet. Remove the
bracket holding the trap from the left
side. Seal the left side drain hole with
a plug provided in the cloth bag with
the furnace. Position the mounting
bracket and trap so that the drain
elbow is centered in the hole on
the right. See Figure 33.
Drill two holes in the cabinet to mount
the bracket. Mount the trap and
bracket to the right side with the drain
elbow pointing through the knockout.
Connect the
1
/2-in. pipe and tee as
noted above. Route the drain hoses
behind the control box, cut to the
appropriate length, and connect to the
trap with hose clamps.
IMPORTANT: DO NOT ALLOW ANY
SAGS OR KINKS IN THE HOSES.
This prevents proper condensate
flow.
IMPORTANT: Do not connect into
a common drain line with an air
conditioner evaporator coil drain
located above the furnace. A blocked
or restricted drain line can result in
overflow of the coil pan and negate
the furnace blocked drain shutoff
control.
CUT DRAIN HOSES AS
REQUIRED
AND CONNECT TO
INLETS ON TOP
OF CONDENSATE
TRAP
DRAIN
RISER
TEE
DRAIN
EXTENSION
PROPER DRAIN SLOPE REQUIRED
(NO KINKS ALLOWED)
CONDENSATE TRAP
IFC MOUNTING
PLATE
TO FLOOR
DRAIN
DOWNFLOW UNITS
To convert to left side drainage, first
remove the drainage hoses from the
trap. Remove the trap from its
mounting bracket, rotate it 180°, and
mount in place with the drainage
elbow pointing to the left. Reattach
the drain hoses. Remove the plastic
d
rainage knockout from the left side.
See Figure 34.
IMPORTANT: When changing to the
left side, interchange the rubber
bushing on the right side with the hole
p
lug on the left side. The hole plug
must be in place to assure that the
control compartment is sealed.
As of September 2, 2006, to convert
downflow models to left-hand drain, a
kit (RXGY-H01) must be ordered from
the distributor. The kit includes a 24”
piece of
1
⁄2” black PVC pipe, a 2”
rubber grommet, a 1-5/8” plug and
instructions. Note the location of the
alternate drain hole as shown in
Figure 34.
I394
FIGURE 34
DOWNFLOW OPPOSITE SIDE CONDENSATE TRAP CONNECTION
TEE
DRAIN
EXTENSION
DRAIN VENT
CONDENSATE TRAP
TO FLOOR
DRAIN OR
CONDENSATE PUMP
ALTERNATE DRAIN HOLE
LOCATED HERE ON JACKET.
(REMOVE PLASTIC PLUG AND
REPLACE WITH GROMMET).
EXISTING DRAIN HOLE. PLUG
WITH 1
5
⁄8” PLUG SUPPLIED
IN KIT
ROTATE TRAP 180° AND
INSTALL RIGID PIPE FROM
ELBOW TO OPPOSITE SIDE
OF JACKET AS SHOWN
I394
F
IGURE 32
HORIZONTAL CONDENSATE DRAIN
I
408
C
ONDENSATE TRAP
D
RAIN LINE
NEUTRALIZER CARTRIDGE
(
OPTIONAL)
TO FLOOR DRAIN OR CONDENSATE PUMP
N
OTE:
SEE GENERAL NOTES
FOR HORIZONTAL
M
ODELS FOR PIPE
HEIGHT.
OVERFLOW LINE
(
REQUIRED ONLY WHEN
OPTIONAL NEUTRALIZER
CARTRIDGE IS USED.)
To Next Page
