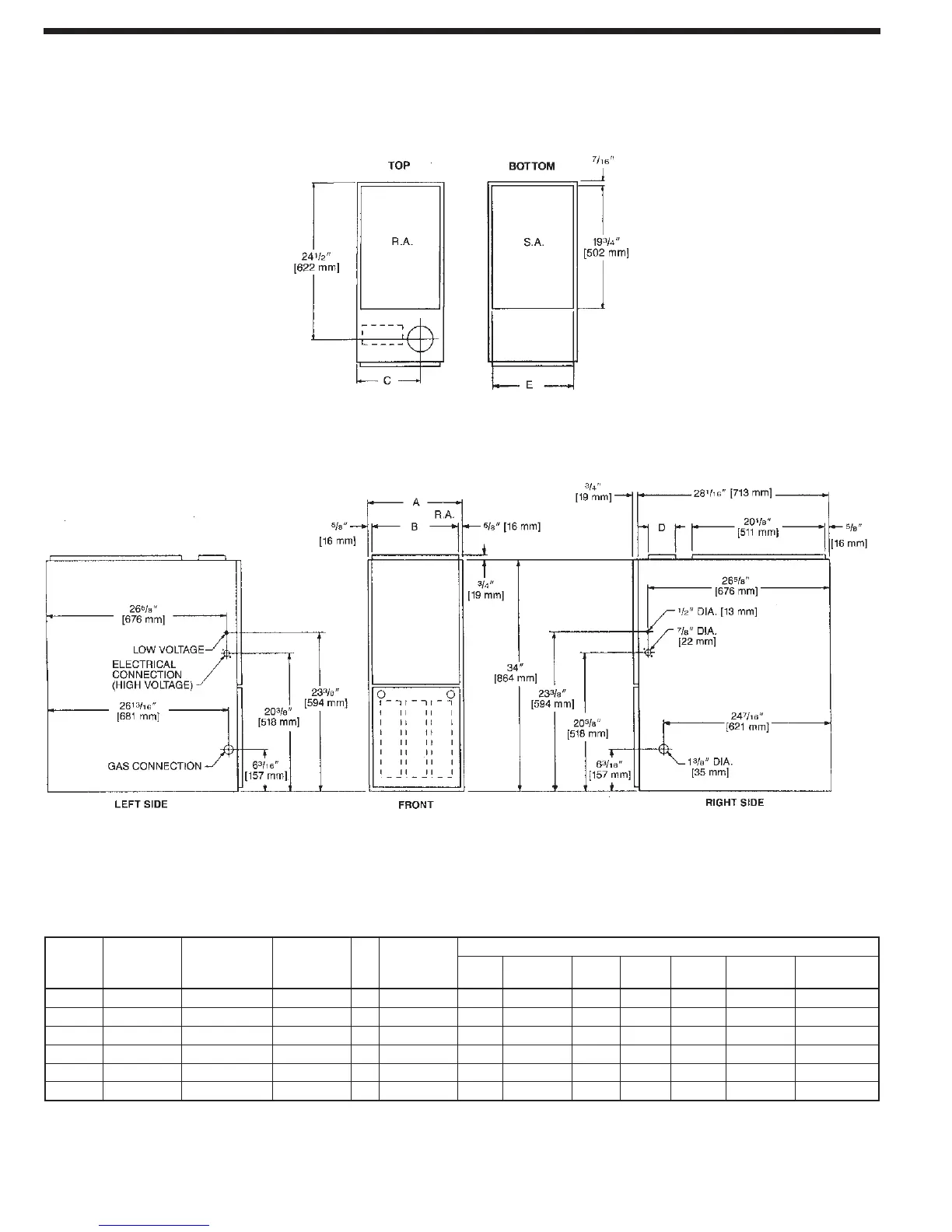

DOWNFLOW DIMENSIONS
TABLE 1. DIMENSIONS AND CLEARANCE TO COMBUSTIBLE MATERIAL (INCHES) [mm]
NOTES: ➀ May require a 3" [76 mm] to 4" [102 mm] or 3" [76 mm] to 5" [127 mm] adapter.
➁ May be 0" [0 mm] with type B vent.
➂ May be 1" [25 mm] with type B vent.
Furnaces must be vented in accordance with ANSI Z21.47-1993 • CAN/CGA-2.3-M93 venting table guidelines, and in accordance with local codes.
[ ] Designates Metric Conversions
MODEL
RGLH-
SERIES
A B C D E
REDUCED CLEARANCES (IN.) [mm]
05 14 [356] 12
27
/32 [326] 10
3
/8 [264]
➀
13
1
/8 [333] 0
4 ➁
0 1 [25] 3 [76]
6 [152] ➂
LEFT
SIDE
RIGHT
SIDE
BACK TOP FRONT VENT
SHIP. WGTS.
(LBS.) [kg]
85 [38.6]
07 17
1
/2 [445] 16
11
/32 [415] 12
1
/8 [308]
➀
16
5
/8 [422] 0
3 ➁
0 1 [25] 3 [76]
6 [152] ➂
105 [47.6]
10 (A) 17
1
/2 [445] 16
11
/32 [415] 12
1
/8 [308]
➀
16
5
/8 [422] 0
3 ➁
0 1 [25] 3 [76]
6 [152] ➂
115 [52.2]
10 (B) 21 [533] 19
27
/32 [504] 13
7
/8 [352]
➀
20
1
/8 [511] 0
0
0 1 [25] 3 [76]
6 [152] ➂
120 [54.4]
12 24
1
/2 [622] 23
11
/32 [593] 15
5
/8 [397]
➀
23
5
/8 [600] 0 0 0 1 [25] 3 [76]
6 [152] ➂
140 [63.5]
15 24
1
/2 [622] 23
11
/32 [593] 15
5
/8 [397]
➀
23
5
/8 [600] 0 0 0 1 [25] 3 [76]
6 [152]
➂
150 [68]

Rheem CRITERION II Specifications

General

Fuel Type	Natural Gas or Propane
Heating Capacity	40, 000 to 120, 000 BTU/h
Blower Motor	Multi-speed
Ignition Type	Hot Surface Ignition
Efficiency	80% AFUE
